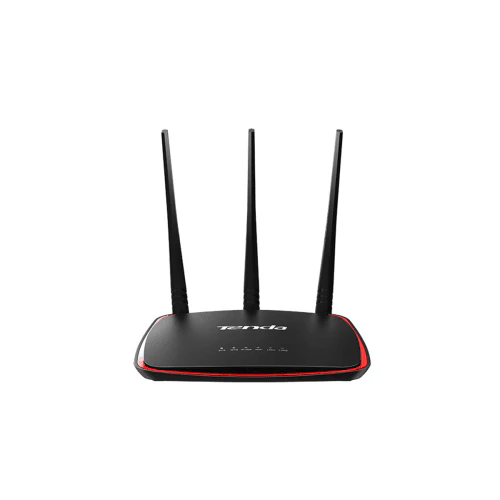

TENDA AP5 N300 WIRELESS DESKTOP ACCESS POINT

AP5 is designed to boost the range of your existing WiFi and creates a stronger signal for game consoles, printers, smartphones, tablets. Power over ethernet supported and wall-mount design makes it flexible to deploy in any location. It has multi operation modes like Universal Repeater, Client(Station), WISP, which can adapt various application scenarios. It is an ideal Wi-Fi booster for large houses, villas, eatery, large stores etc.

Features

• One Button to boost Wi-Fi range for ADSL router.
• 300Mbps wireless transmission rate brings a smooth wireless experience.
• Multiple operating modes include AP/Universal Repeater/WISP/Client/Client+AP.
• PoE power supply supported makes it flexible to deploy.

One Button to boost Wi-Fi Range

AP5 has a “Range Extender” button, which allows users to boost the existing Wi-Fi Range simply by pressing the “Range Extender” button.

Flexible deployment

Wall-Mount design and power over ethernet cable-supported make it flexible to deploy in place without power outlets such as a garage, warehouse, etc.

Multi Operating Modes for Various Scenarios

Multi operating modes including AP, Universal Repeater, WISP(Client+Router), Station(client) help you to boost WiFi range in various scenarios such as large houses, villas, eatery, stores, community networks.

Universal Repeater

Extending your existing wireless coverage by relaying the wireless signal.

WISP (Client+Router)

Wireless connect to ISP hotspot to share Internet for local wireless and wired devices.

Station (client)

Working as a wireless adapter to connect to your wired device.

Excellent Wi-Fi Coverage

Adopt of high power technology and three high gain antennas for better Wi-Fi signal and maximum coverage.

Easy to Manage With AP Controller

AP5 can be managed by the AP controller, like M3 from Tenda. When you deploy multi APs in networks, you can configure SSID(Wireless network name), Channel, Security Key, Output power, etc option through M3 in a single location.

Specifications

Dimension

• 148*146.2*31.5mm

Standard&Protocol

• IEEE 802.11n/g/b

Interface

• 2 * 10/100M Ethernet Port (RJ45)

Antenna

• 3*5dBi Detachable Omni Directional (RP-SMA)

Button

• 1*Reset
• 1*Range Extender

Power Method

• DC 12V=1A Passive PoE

Passive PoE power supply

• Up to 40 meters Passive PoE is supported(cat5e or up)

Reception Sensitivity

• b mode： 1M -89dBm@8%
• 11M -87dBm@8% PER
• g mode： 54M -74dBm@8% PER； n mode： 72.2M -74dBm@8% PER
• 150M -72dBm@8% PER

LED indicator

• SYS,WPS,Bridge,WiFi,LAN1,LAN2

Hardware Deployment

• Desktop/Wall Mount

Frequency Range

• 2.4GHz-2.483GHz

LAN Settings

• Static IP
• Dynamic IP

DHCP Server

• DHCP Server
• Clients list

Wireless Rate

• 11n: Up to 300Mbps(dynamic)
• 11g: Up to 54Mbps(dynamic)
• 11b: Up to 11Mbps(dynamic)

Operating Mode

• Access Point
• Universal Repeater
• Station(Client)
• WISP (Client+Router)
• Client+AP

Wireless Function

• SSID
• Enable/Disable Wireless Radio
• Broadcast SSID
• SSID Hidden automatically when exceeding client limit
• Client limit for SSID
• Transmission output power
• AP isolation
• RSSI threshold for wireless clients
• WMM capable
• APSD capable
• Access control based mac address
• Wireless Client list
• VLAN for multi SSID

Wireless Security

• 64/128 WEP
• WPA-PSK
• WPA2-PSK
• WPA&WPA2-PSK
• WPA
• WPA2

Video user capacity

• 5

wireless users capacity

• 20+

Diagnostic

• Wireless site survey
• Ping
• Traceroute

Network Service

• Scheduled Reboot
• Http/Https

Managed by ACAC

• 500

Package Content

• 300Mbps Wireless N High Power Access Point AP5
• 1*PoE Injector
• 1*Quick Installation Guide
• 1*Ethernet cable
• 1*Power Adapter
• 2*Screws
• 2*Plastic Bolt

Management Tool

• Reboot
• Restore to factory default
• System Log
• Firmware update
• Time&Date Setting
• Backup/Restore Configuration
• Username Management

Temperature

• Operating Temperature:-10℃~45℃
• Storage Temperature: -30℃~70℃

Humidity

• Operating Humidity:10%~90% non-condensing
• Storage Humidity:5%~90% non-condensing

Default Settings

• IP Address: 192.168.0.254
• Login Username: admin
• Login Password: admin

Certification

• FCC/CE/Rohs/VoC
