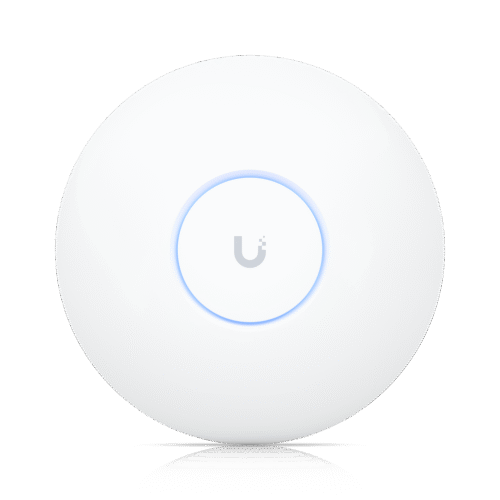

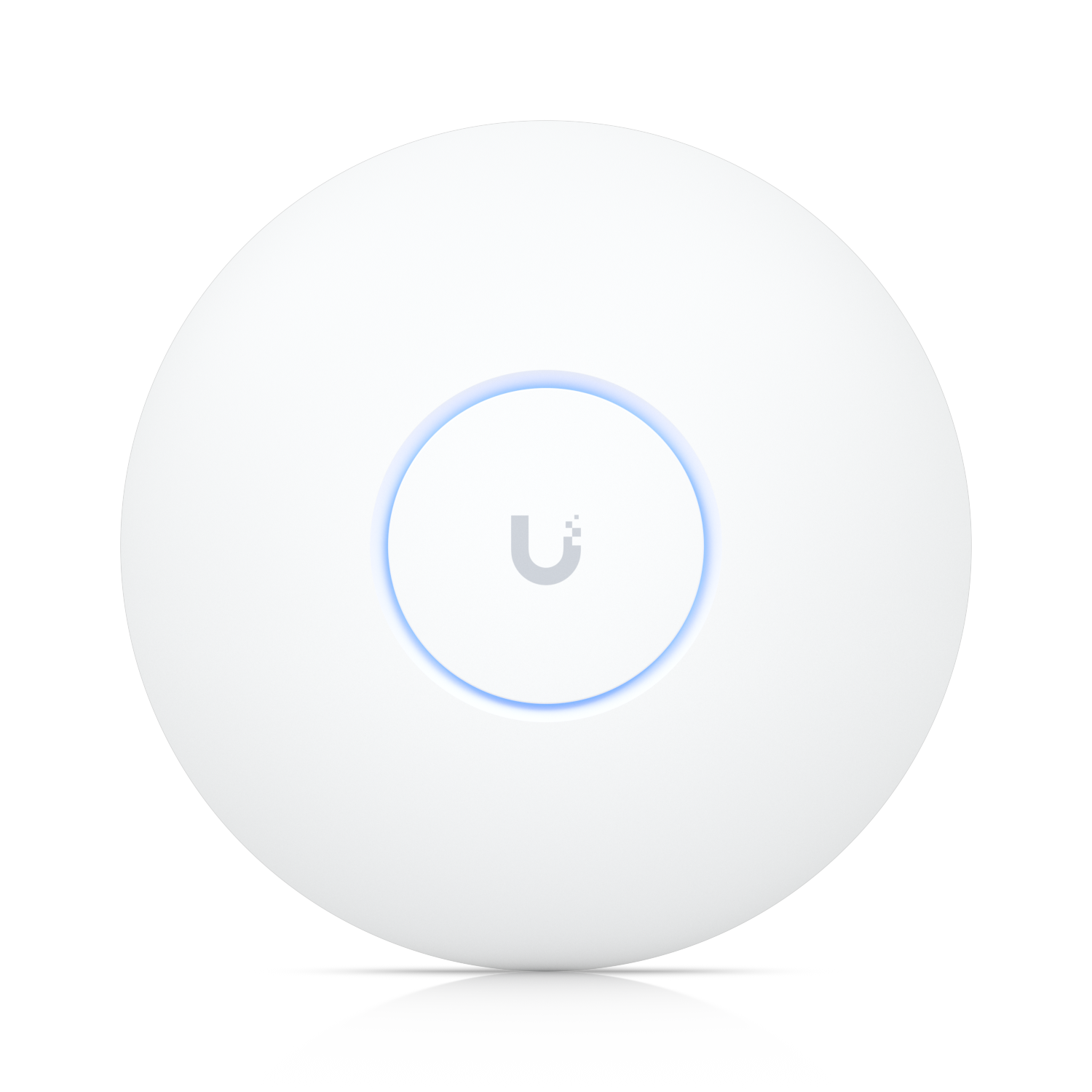

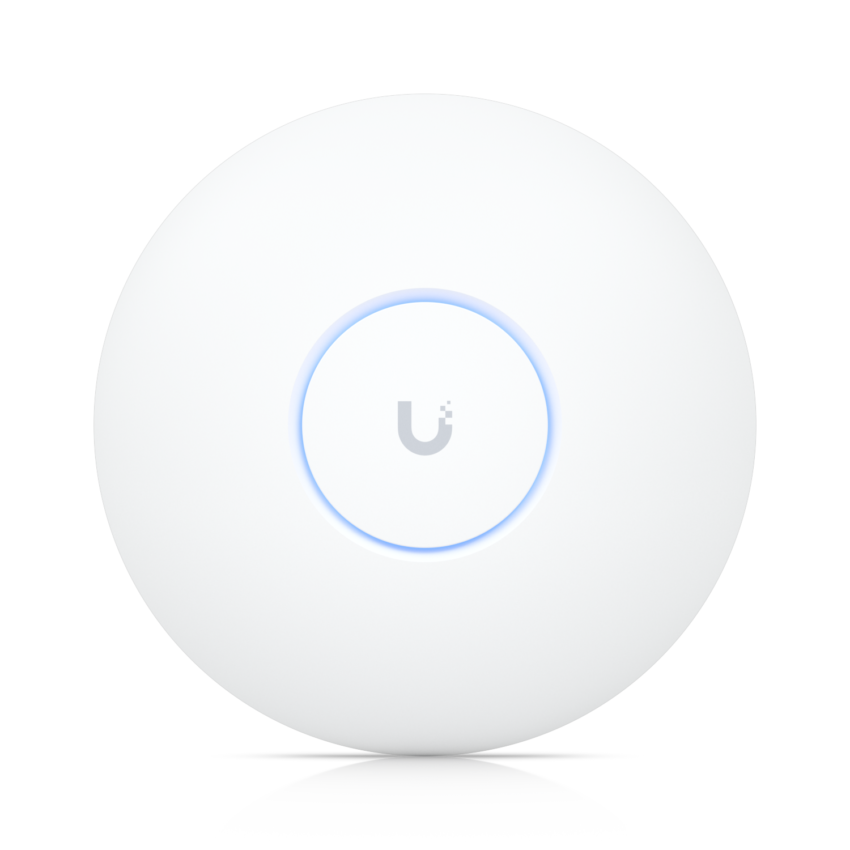

Ubiquiti UniFi U7 Pro Max Access Point

Buy Ubiquiti UniFi U7 Pro Max Access Point, a high-performance WiFi 7 (802.11be) access point designed for enterprise-grade indoor wireless networks. Delivering unmatched speed, scalability, and reliability, the U7 Pro Max supports multi-gigabit connections, 500+ concurrent users, and advanced UniFi management features for large offices, campuses, and smart buildings.

With 8 spatial streams, tri-band connectivity (6 GHz, 5 GHz, 2.4 GHz), and a 2.5 GbE uplink, this access point provides ultra-fast and stable wireless coverage up to 160 m² (1,750 ft²). Managed via the UniFi Access Point Controller, it integrates seamlessly into any professional network deployment for simplified configuration, monitoring, and performance optimization.

Key Features

• WiFi 7 (802.11be) technology for next-generation speed and reliability
• Tri-band operation across 6 GHz, 5 GHz, and 2.4 GHz frequencies
• Up to 8.6 Gbps throughput on 5 GHz, 5.8 Gbps on 6 GHz, and 688 Mbps on 2.4 GHz
• 8 spatial streams for high-density multi-user performance
• Coverage area: 160 m² (1,750 ft²) with 500+ client support
• 2.5 GbE uplink port for multi-gigabit networking
• PoE+ powered (44–57V DC) with a 25W max consumption
• Ceiling or wall mountable (Pro Mount included)
• Centralized management via UniFi Network Controller or mobile app

Technical Specifications

• Ubiquiti UniFi U7 Pro Max Access Point
• WiFi Standard: WiFi 7 (802.11be)
• Dimensions: Ø206 × 46 mm (Ø8.1 × 1.8 in)
• Coverage Area: 160 m² (1,750 ft²)
• Maximum Client Count: 500+
• Uplink: 1 × 2.5 GbE RJ45 port
• Mounting: Ceiling, Wall (Pro Mount Included)
• Power Method: PoE+ (44–57V DC)
• Max Power Consumption: 25W
• Weight: 680 g (1.5 lb)
• Operating Temperature: –30 to 50 °C (–22 to 122 °F)
• Operating Humidity: 5 – 95 % non-condensing
• Certifications: CE, FCC, IC, Anatel
• NDAA Compliant: Yes

Performance

• Spatial Streams: 8
• MIMO Configuration:
  • 6 GHz – 2×2 (DL/UL MU-MIMO)
  • 5 GHz – 4×4 (DL/UL MU-MIMO)
  • 2.4 GHz – 2×2 (DL/UL MU-MIMO)
• Maximum Data Rate:
  • 6 GHz – 5.8 Gbps (BW320)
  • 5 GHz – 8.6 Gbps (BW240)
  • 2.4 GHz – 688 Mbps (BW40)
• Antenna Gain:
  • 6 GHz – 5.9 dBi
  • 5 GHz – 6 dBi
  • 2.4 GHz – 4 dBi
• Maximum TX Power:
  • 6 GHz – 23 dBm
  • 5 GHz – 29 dBm
  • 2.4 GHz – 23 dBm
• Maximum BSSIDs: 8 per radio

Supported Data Rates

• 802.11be (WiFi 7):
  • 6 GHz: 7.3 Mbps – 5.8 Gbps (EHT 20/40/80/160/320 MHz)
  • 5 GHz: 7.3 Mbps – 8.6 Gbps (EHT 20/40/80/160/240 MHz)
• 802.11ax (WiFi 6/6E): 7.3 Mbps – 4.8 Gbps (HE 20/40/80/160 MHz)
• 802.11ac (WiFi 5): 6.5 Mbps – 3.4 Gbps (VHT 20/40/80/160 MHz)
• 802.11n (WiFi 4): 6.5 Mbps – 600 Mbps (HT 20/40 MHz)

Features

• Wireless Meshing
• Band Steering
• 802.11v BSS Transition Management
• 802.11r Fast Roaming
• 802.11k Radio Resource Management (RRM)
• Advanced Radio Management
• Real-Time Spectral Analysis
• Passpoint (Hotspot 2.0)
• Captive Portal with Custom Branding, Voucher and Payment Authentication
• Guest Network Isolation
• Private Pre-Shared Key (PPSK)
• WiFi Speed Limiting
• Client Device Isolation
• WiFi Scheduling
• RADIUS over TLS (RadSec)
• Dynamic RADIUS-Assigned VLAN

Hardware

• Networking Interface: 1 × 2.5 GbE RJ45 port
• Power Input: 44–57 V DC via PoE+
• Enclosure Material: Polycarbonate and aluminum
• Mount Material: Stainless Steel (SUS304), Galvanized Steel (SGCC)
• LED Indicators: System (White/Blue)
• Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 MHz

Software and Management

• Controller: UniFi Network (Version 8.2.93 and later)
• Management: Ethernet or Cloud via UniFi Controller
• Mobile App Support: iOS (10.20.2+) and Android (10.21.7+)
• Application: Setup and manage via UniFi Access Point Controller

Operating Frequency

US/Canada:

• 2400 – 2472 MHz
• U-NII-1: 5150 – 5250 MHz
• U-NII-2A: 5250 – 5350 MHz
• U-NII-2C: 5470 – 5725 MHz
• U-NII-3: 5725 – 5850 MHz
• U-NII-5 to U-NII-8: 5925 – 7125 MHz

Worldwide:

• 2400 – 2483.5 MHz
• 5150 – 5725 MHz
• 5925 – 7125 MHz

Ideal For

• High-density enterprise Wi-Fi networks
• Corporate offices and commercial buildings
• Educational campuses and hotels
• Smart home or smart business networks

Shop the Ubiquiti UniFi U7 Pro Max Access Point at the best price in Kenya from TDK Solutions — your trusted provider for Ubiquiti UniFi Access Points, Ubiquiti Access Point setup, and UniFi Access Point Controller management. Upgrade your business with WiFi 7 performance, multi-gigabit connectivity, and enterprise-level network control.
