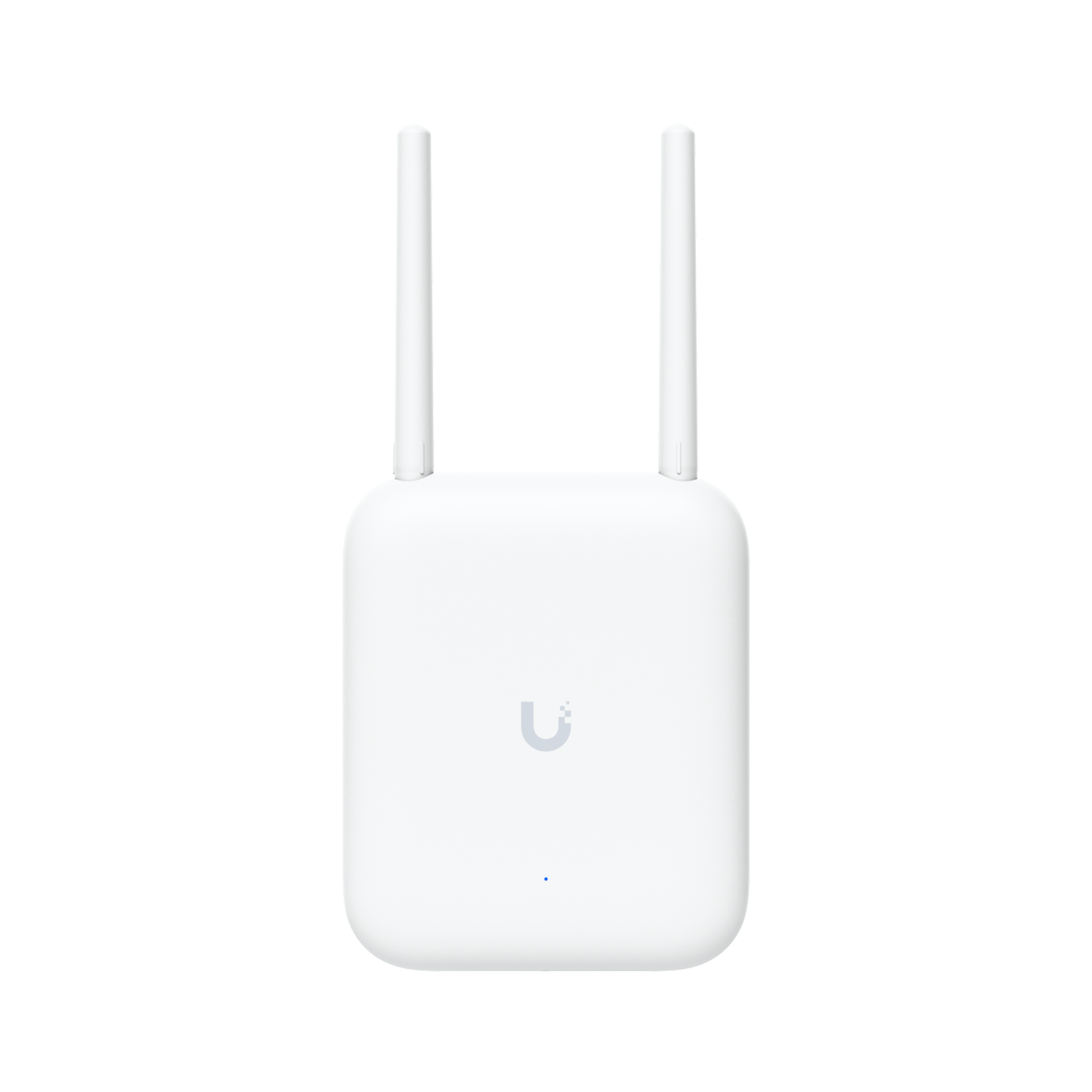

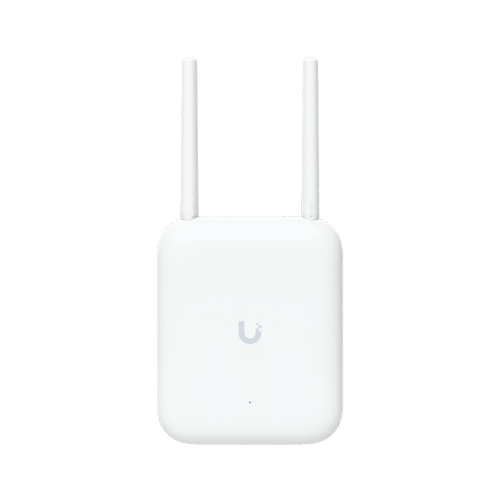

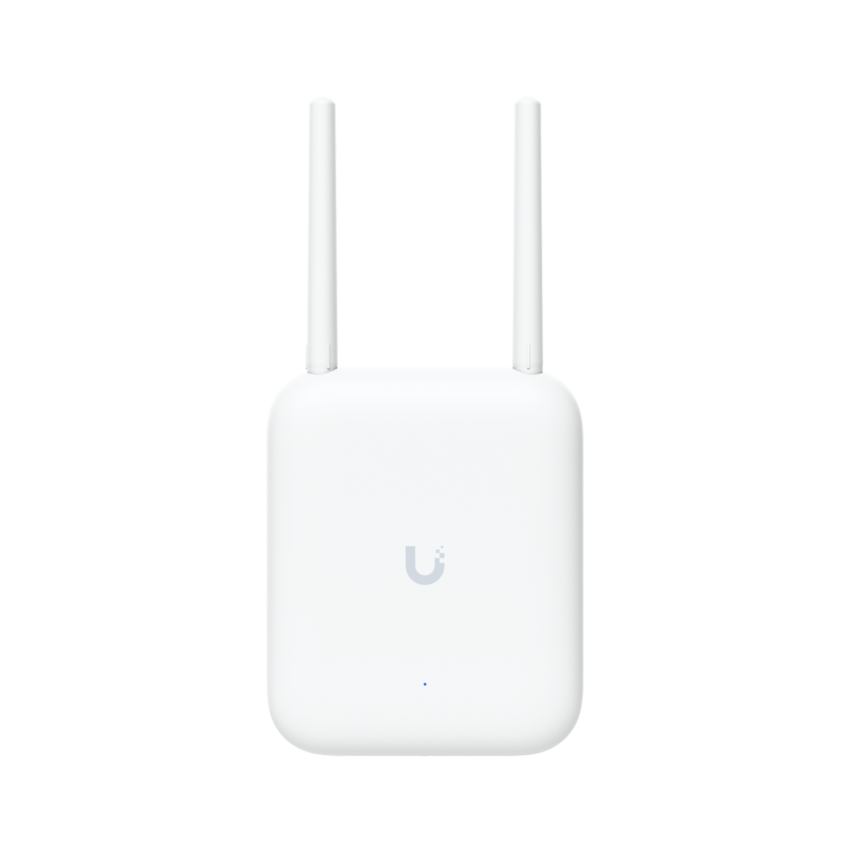

Ubiquiti UniFi U7-Outdoor WiFi 7 Dual-Band Outdoor Access Point

Ubiquiti U7-Outdoor Wireless Access Point is a high-performance dual-band WiFi 7 (802.11be) outdoor access point designed to deliver fast, reliable wireless connectivity across campuses, business premises, schools, warehouses, hotels, parks, stadiums, and other outdoor environments. Built with an IPX6 weather-resistant enclosure, 2.5 Gigabit Ethernet connectivity, and advanced WiFi 7 technologies, it provides exceptional wireless performance while withstanding harsh outdoor conditions. It also features flexible antenna options, allowing you to choose between the integrated directional antenna for long-range coverage or the included omnidirectional antennas for broader area coverage.

Managed through the UniFi Network Application, the U7-Outdoor integrates seamlessly into the UniFi ecosystem, enabling centralized configuration, monitoring, and management of your entire wireless network.

Key Features

1. High-Performance WiFi 7 Connectivity

The U7-Outdoor delivers next-generation WiFi 7 (802.11be) performance, providing faster wireless speeds, lower latency, and improved efficiency for high-density outdoor environments.

• 5 GHz Wireless Speed: Up to 4.3 Gbps
• 2.4 GHz Wireless Speed: Up to 688 Mbps
• Dual-Band WiFi 7 Technology

It is fully backward compatible with WiFi 6, WiFi 5, and earlier wireless devices.

2. Long-Range Outdoor Wireless Coverage

Designed specifically for outdoor deployments, the U7-Outdoor provides wireless coverage of up to 465 m² (5,000 ft²) when using its integrated directional antenna and supports 250+ connected devices, making it ideal for large open spaces and busy outdoor environments.

3. Flexible Directional and Omnidirectional Antennas

The U7-Outdoor offers deployment flexibility with:

• Integrated directional antenna for long-range wireless coverage.
• Included external omnidirectional antennas for 360° coverage.
• RP-SMA connectors for compatible external antenna options.

This allows installers to optimize wireless coverage based on the deployment environment.

4. Built for Outdoor Environments

Featuring an IPX6 weather-resistant enclosure, the U7-Outdoor is designed to withstand rain, dust, heat, and challenging outdoor conditions, making it suitable for year-round outdoor installations.

5. Centralized UniFi Network Management

Using the UniFi Network Application, administrators can:

• Configure wireless networks
• Manage multiple access points
• Monitor connected devices
• Create guest WiFi networks
• Configure VLANs
• Enable fast roaming
• Perform firmware updates
• Monitor network performance across multiple sites

6. 2.5 Gigabit Ethernet with PoE+

The U7-Outdoor features a 2.5 Gigabit Ethernet RJ45 port and is powered using PoE+, allowing power and data to be delivered over a single Ethernet cable for simplified installation.

7. Wall and Pole Mount Installation

The access point includes wall and pole mounting hardware, allowing quick deployment on:

• Building walls
• Outdoor poles
• Campus structures
• Warehouse exteriors
• Stadium infrastructure

Technical Specifications

Ideal Applications

The Ubiquiti U7-Outdoor Wireless Access Point is ideal for:

• Business campuses
• Schools and universities
• Hotels and resorts
• Restaurants with outdoor seating
• Shopping centres
• Warehouses
• Industrial facilities
• Parks and recreational areas
• Stadiums and event venues
• Residential estates
• Outdoor hospitality spaces
• Public WiFi deployments

When to Use the U7-Outdoor

Choose the Ubiquiti U7-Outdoor when you need to:

• Extend high-speed WiFi coverage to outdoor areas.
• Provide reliable wireless connectivity across large open spaces.
• Support hundreds of connected users outdoors.
• Replace older outdoor WiFi 5 or WiFi 6 access points.
• Expand an existing UniFi wireless network.
• Deploy a weather-resistant access point for year-round outdoor operation.

Installation & Usage

Install the Access Point

Mount the U7-Outdoor on a wall or pole using the included mounting accessories. Select the integrated directional antenna for focused long-range coverage or install the supplied omnidirectional antennas for wider area coverage.

Connect Power and Network

Connect the access point to a PoE+ switch or compatible PoE+ injector using an outdoor-rated Cat6 Ethernet cable.

Adopt the Device

Open the UniFi Network Application, discover the access point, and complete the adoption process before applying your wireless configuration.

Configure Your Wireless Network

Create your wireless networks (SSIDs), configure security settings, enable guest access, and apply advanced features such as VLANs, fast roaming, and traffic management.

What’s in the Box?

• 1 × Ubiquiti U7-Outdoor Wireless Access Point
• External omnidirectional antennas
• Wall mounting kit
• Pole mounting kit
• Mounting hardware
• Quick Start Guide

Where to Buy Ubiquiti U7-Outdoor Wireless Access Point in Kenya

Purchase the Ubiquiti U7-Outdoor Wireless Access Point from TDK Networks East Africa, your trusted supplier of genuine Ubiquiti networking products in Kenya.

Visit our locations:

• Retail Store: Kai Plaza, 4th Floor, Tom Mboya Street, Nairobi
• Administrative Office: City House, 3rd Floor, Room 301, Wabera Street, Nairobi

Phone: 0717 492 458

Order online for fast and reliable delivery across Kenya.

View Installation Guide for Ubiquiti U7-Outdoor Access Point
