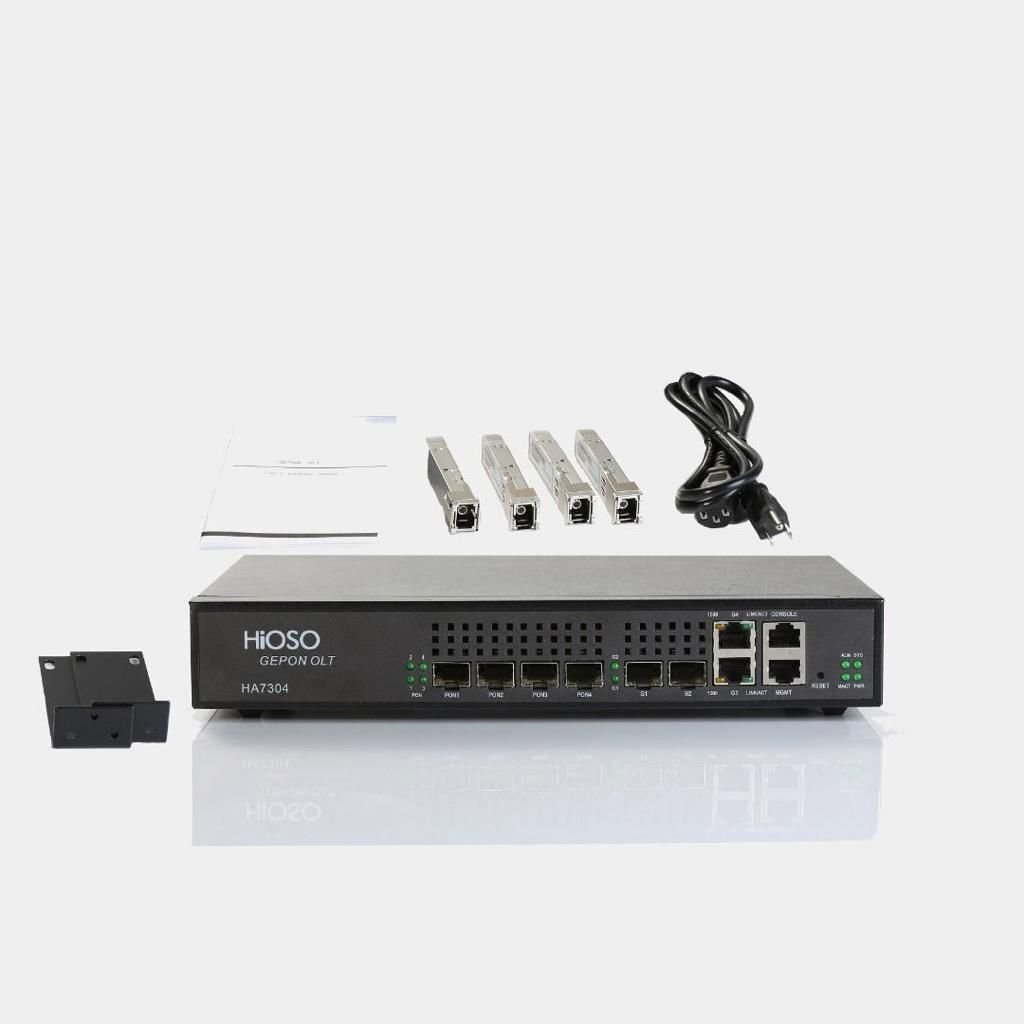

HA7304 is a small standalone type 4 SFP PON ports OLT.
HA7304 works with HA7200 series ONU and ODN, to establish a passive optic network.
The whole system supports 4-PON, 256 ONUs. HA7304 applies to counties, towns, and villages with fiber network access. It is also applied to FTTH/FTTB/FTTO projects, for IP phone, Ethernet data, and IPTV services access. It supports WEB management. HA7304 meets China Telecom EPON standards.
|
Parameter
|
Specifications
|
|
Operating wavelength
|
1310(RX)/1490(TX)
|
|
Optical power
|
+0 ~ +7dBm
|
|
Receiving sensitivity
|
-27dBm
|
|
Max distance
|
20km
|
|
Max splitter ratio
|
1:64
|
|
Capacity
|
4 PON, standard: 64 ONUs maximum:128 ONUs
|
|
MAC
|
8K
|
|
Uplink port
|
4 1000M Ethernet RJ45 ports
|
|
PON port
|
4 SFP fiber ports
|
|
Control port
|
RJ45 console port, to debug the device
|
|
MTBF
|
100,000 hours
|
|
EPON traits
|
Support IEEE802.3ah
|
|
Support DBA with minimum1Kbps granularity adjustable
|
|
|
Support 1Gbps up link and down symmetrical link bandwidth
|
|
|
Support AES-128 encryption to each Logical Link Identifier
|
|
|
Support powerful OAM function, implement telnet management, maintenance, and upgrade
|
|
|
Support auto discovery and auto register of ONU (real-time operation)
|
|
|
Protocols supported
|
Support IEEE802.3, IEEE802.3u, IEEE802.3ab
|
|
Support IEEE802.1Q VLAN
|
|
|
Support IEEE 802.1P QoS
|
|
|
Management
|
CLI and GUI, SNMP, WEB
|
|
Other Functions
|
Support 1GMPv1/v2 protocol report, query, and leave message mouse
|
|
Support ONU remote configure and upgrade
|
|
|
Support real-time alarm detection, accurate fault location
|
|
|
Support the alarm information sent to the mailbox, support SMS alarm
|
HA7304 is a small standalone type 4 SFP PON ports OLT. HA7304 works with HA7200 series ONU and ODN, to establish a passive optic network. The whole system supports 4-PON, 256 ONUs.
HA7304 applies to counties, towns and villages fiber network access. It is also applied to FTTH/FTTB/FTTO projects, for IP phone, Ethernet data and IPTV services access. It supports WEB management. HA7304 meets China Telecom EPON standards.
Feature
- Supply 4SFP PON ports, 2 1000M SFP ports, 2 1000M RJ45 uplink ports
- Each PON port support 1.64split ratio, total 256Â ONUs access
- Distance can reach 20km under 1:32 split ratio
- Support to work withHA400/HA7200 series ONUs to establish passive network
- Support WEB management
- 1U rack design, inside fan,better for heat dissipating and reliability operating
- Apply for town,village fiber network and surveillance, apply for FTTX network, to transmit IP phone, data,IPTV and other IP services access
Â

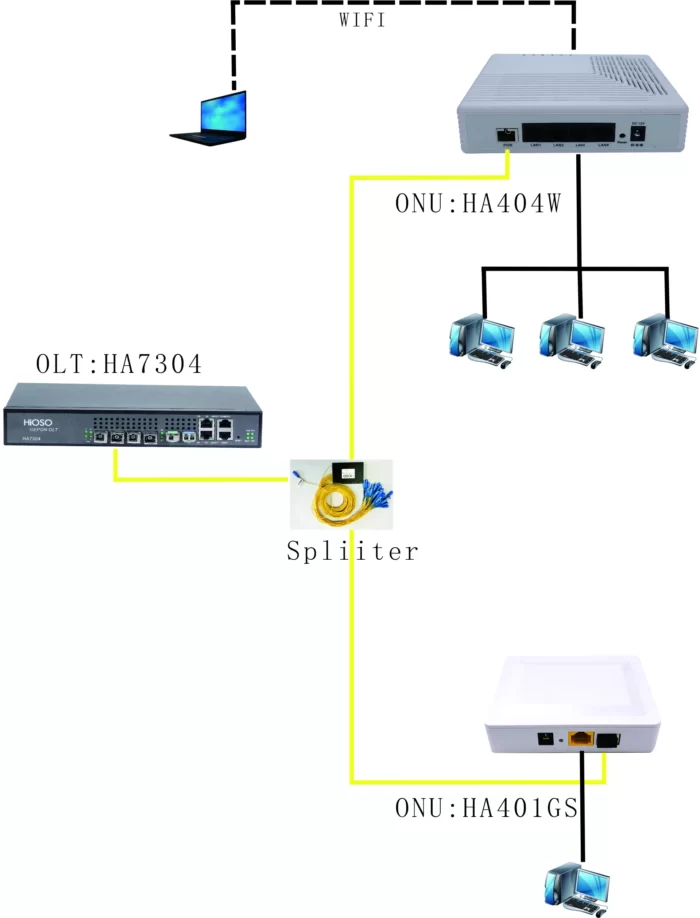

Application
The above is the Description for HA7304 Standalone 4PON EPON OLT. If you want to know more about epon olt, epon, etc., you can contact us.
