Ubiquiti Outdoor Access Points
Updated List of Ubiquiti Access Points for Outdoor Use.
Unifi Mesh pro Access Point. -22,500.00
Unifi Mesh Access point- @ 12,500.00
Ubiquiti Nano-Station M2 (NSM2) @ 10,500.00
Ubiquiti Nano-Station loco M2 – Wireless Access Point – AirMax – 7,500.00

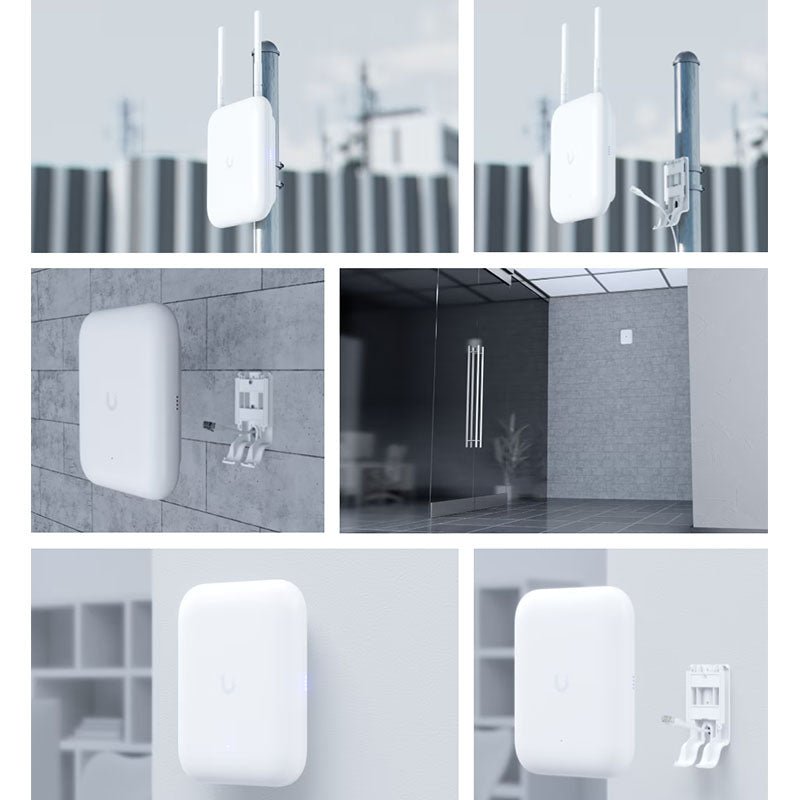

Unifi Mesh PRO Access Point.
Simultaneous, dual-band, 3×3 MIMO technology, 802.11ac dual-band access point, capable of speeds of up to 1750 Mbps.
Expand your Wi-Fi network outdoors with the UniFi® AC Mesh Pro Access Point, part of the Ubiquiti Networks® UniFi Enterprise Wi-Fi System.
The UAP-AC-M-PRO is a high-performance, outdoor, 3×3 MIMO, 802.11ac dual-band access point, capable of speeds of up to 1750 Mbpsa.
It features a proprietary, MIMO-optimized, Omni-directional Super Antenna for exceptional 360° coverage, providing symmetrical long-range communications of up to 183 meters.
Specifications UniFi AC Mesh Pro
Dimensions: 343.2 x 181.2 x 60.2 mm (13.51 x 7.13 x 2.37″)
Weight: 633 g (1.40 lb)
Networking Interface: (2) 10/100/1000 Ethernet Ports
Buttons: Reset
Power Method: 802.3af PoE (Supported Voltage Range: 44 to 57VDC)
Power Supply: 48V, 0.5A PoE Gigabit Adapter
Power Save: Supported
Maximum Power Consumption: 9W
Maximum TX Power:
– 2.4 GHz: 22 dBm
– 5 GHz: 22 dBm
Antennas: (3) Internal Dual-Band Antennas, 8 dBi
Wi-Fi Standards: 802.11 a/b/g/n/r/k/v/ac
Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
BSSID: Up to 8 per Radio
Mounting: Wall/Pole (Pole Kit Included)
Operating Temperature: -40 to 70 C (-40 to 158 F)
Operating Humidity: 5 to 95% Noncondensing
Certifications: CE, FCC, IC.
The outdoor uap-ac-m-pro-us unifi ac mesh wide-area dual-band access point from ubiquiti networks users benefit from a wide coverage area reaching up to 600′ along with enhanced data transfer rates of up to 1300 mbps on the 5 ghz frequency. these enhanced data rates and coverage capabilities are supported by a 3×3 mimo internal antenna configuration supporting multiple data paths for a more efficient end user network connection.
Installation of the uap-ac-m-pro-us is simple as it comes 802.3af poe compliant and includes a pole mounting kit. once installed users can take advantage of 802.11ac wi-fi access with speeds of up to 1300 mb/s in the 5 ghz radio band, and up to 450 mb/s in the 2.4 ghz radio band.
Weather-resistant form factor the enclosure of the unifi ac mesh pro ap is designed to withstand the elements, making it ideal for outdoor deployment. powerful coverage built-in dual-band Omni-directional antennas deliver expanded range coverage outdoors. dual gigabit Ethernet ports the primary port is for data and poe; the secondary port is for bridging.
UniFi Mesh Access point
High-performance 802.11ac 2×2 MIMO access point for indoor and outdoor installations. Two RP-SMA connectors support external antennas.
Expand your Wi-Fi network outdoors with the UniFi AC Mesh Access Point, part of the Ubiquiti Networks UniFi Enterprise Wi-Fi System. The UAP-AC-M is a high-performance, outdoor, 2×2 MIMO, 802.11ac dual-band access point, capable of speeds of up to 1167 Mbps.
It features two RP-SMA connectors, which can be used with the included dual-band omni-directional antennas, or with an optional connector zed dual-band antenna for customized pattern shaping.
UniFi Mesh Access point-
High-performance 802.11ac 2×2 MIMO access point for indoor and outdoor installations. Two RP-SMA connectors support external antennas.
Expand your Wi-Fi network outdoors with the UniFi AC Mesh Access Point, part of the Ubiquiti Networks UniFi Enterprise Wi-Fi System.
The UAP-AC-M is a high-performance, outdoor, 2×2 MIMO, 802.11ac dual-band access point, capable of speeds of up to 1167 Mbps. It features two RP-SMA connectors, which can be used with the included dual-band omni-directional antennas, or with an optional connectorized dual-band antenna for customized pattern shaping.
Works with Unifi Network Controller
- Manage Your Networks from a Single Control Plane
- Intuitive and Robust Configuration, Control and Monitoring
- Remote Firmware Upgrade
- Users and Guests
- Guest Portal/Hotspot Support
Ubiquiti Nano-Station M2 (NSM2)
Ubiquiti NanoStation M2 (NSM2); Indoor/Outdoor AirMax® CPE
Featuring a panel antenna and dual-polarity performance, the NanoStation M2 is ideal for Point-to-MultiPoint (PtMP) applications requiring high-performance CPE devices with a sleek form factor.
The Ubiquiti NanoStation M2 Base Station features 2×2 MIMO technologies and 150+ Mbps real outdoor throughput up to 13km+ range. This therefore allows for PtP (Point-to-Point) and PtMP (Point-to-MultiPoint) links that are significantly faster and longer than ever before.
Ubiquiti NanoStation M2 Key Features
- Dual Ethernet Connectivity
- PoE Enabled
- Frequency 2.5 GHz
- Throughput 150+ Mbps
- Range: 13+ km
- Great Performance
- Easy Installation
The low cost, hi-performance, and small form factor of the Ubiquiti NSM2, makes them extremely versatile and ideal in several different applications.
Next-Gen Antenna Design
New antenna array designs featuring 11dBi dual-polarity 11dBi at 2.4GHz. Optimized cross-polarity isolation and in a compact form-factor.
Integrated AirMax Technology
Unlike standard Wi-Fi protocol, Ubiquiti’s Time Division Multiple Access (TDMA) AirMax protocol allows each client to send & receive data using pre-designated time slots scheduled by an intelligent AP controller.
Dual Ethernet Connectivity
The Ubiquiti NanoStation M2 provides a secondary Ethernet port with software enabled POE output for seamless IP Video integration.
Intelligent Poe
Remote hardware reset circuitry of Ubiquiti NanoStation M2 allows for device to be reset remotely from power supply location. In addition, any Ubiquiti NanoStation M2 can easily become 802.3af 48V compliant through use of Ubiquiti’s Instant 802.3af adapter.
AirOS V
Version 5 of Ubiquiti’s AirOS builds upon the market leading intuitive user-interface loaded with advanced wireless configurations and routing functionality.
Please visit the Ubiquiti Firmware page for the latest Firmware upgrades
Ubiquiti Nano Station M2 Technical Specifications
System Information
- Processor Specs: Atheros MIPS 24KC, 400MHz
- Memory Information: 32MB SDRAM, 8MB Flash
- Networking Interface: 2 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet
Nano Station Loco M2
The Nano Station Loco M2 is positioned as a low-cost CPE. Since it doesn’t break the bank, it allows you to enjoy high cost savings without feeling the pinch on quality since it remains superior when it comes to throughput performance. This also makes small businesses, campuses, and neighborhoods, among others, to build a reliable network at a cost they can easily manage.
2×2 MIMO Technology
The Nano Station Loco M2 has a good range thanks to its 2×2 MIMO technology with gain of up to 8dBI. It is also an outdoor device, giving it more freedom to pick up clearer and stronger signal. As an added great feature, the external antenna has dual polarity and offers support to devices that are running on 802.11 g/n protocol. Compared to standard CPE, this one is definitely faster. It taps on the 2.4GHz frequency and broadcasts up to 150 mbps.
The device is also equipped with Atheros MIPS 24KC with 400MHz speed, 8mB Flash, and 32MB SDRAM.
Compact
The device possesses a small form factor, which makes it very sleek and good looking aesthetically. Mounting the device is also more convenient, as it doesn’t ask for a lot of space in order to work.
Power over Ethernet
The Nano Station Loco M2 has been designed for certain remote functions. For example, administrators or network developers may be able to reset the circuitry without having to really go outside. It can also be transformed into a reliable power over Ethernet CPE by simply purchasing that adapter that makes this 802.3af compliant.
Intuitive Software
The CPE can be customized, modified, and controlled via the AirOS software, which can be comfortably installed and used even by those who don’t have a lot of experience with CPEs and related software. The interface is intuitive and easy to navigate.
