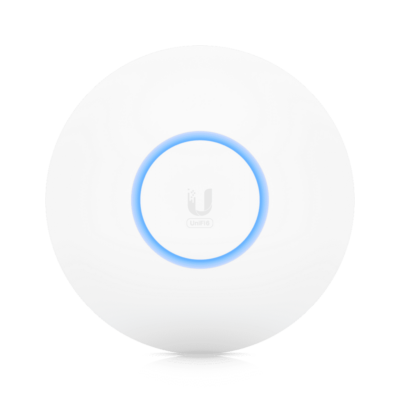

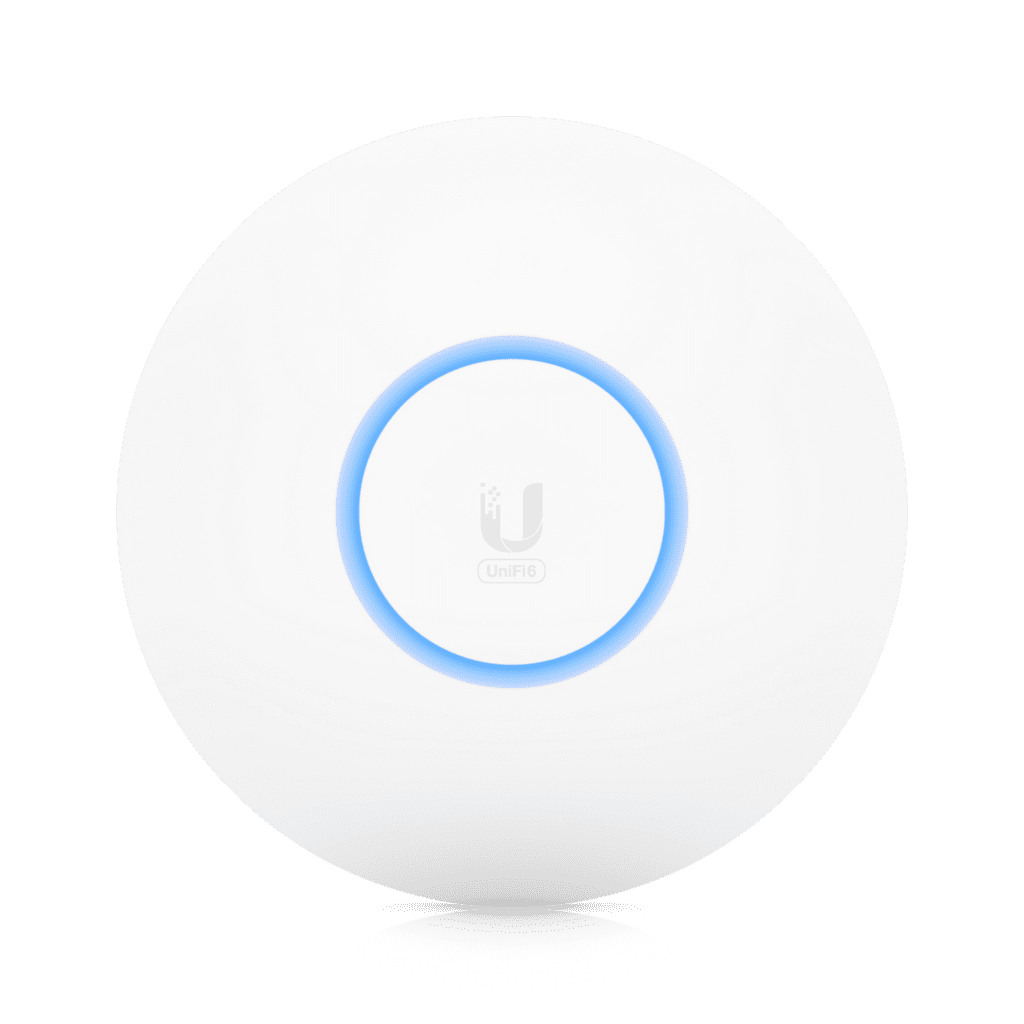

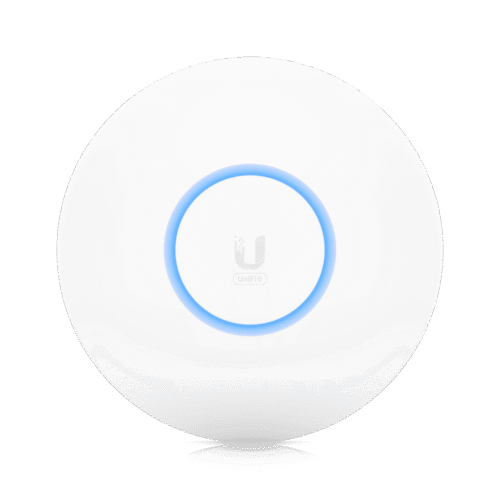

Ubiquiti UniFi 6 Lite Access Point | PoE Adapter not Included (U6-Lite-US)
Ubiquiti UniFi WiFi 6 Lite Access Point (U6-Lite) is a replacement for Ubiquiti Networks UAP-AC-LITE UniFi Access Point
- 2×2 high-efficiency WiFi 6
- 5 GHz band 2×2 MU-MIMO
- 2.4 GHz band 2×2 MIMO
The Ubiquiti UniFi U6-Lite is a 2×2 Wi-Fi 6 access point that delivers up to 1.5 Gbps aggregate radio rate with 5 GHz (MU-MIMO and OFDMA) and 2.4 GHz (MIMO) radios.
Ubiquiti UniFi U6-Lite Key Features
- 2×2 high-efficiency WiFi 6
- 5 GHz band 2×2 MU-MIMO and OFDMA with a radio rate of 1.2 Gbps
- 2.4 GHz band 2×2 MIMO with a radio rate of 300 Mbps
- Gigabit Ethernet, powered with 802.3af PoE
- Compatible with UAP-nano HD covers and recessed mounting bracket
The UniFi U6-Lite can be mounted horizontally in the ceiling to cover a high-density environment, or mounted vertically on the wall to extend its range. UniFi 6 Lite has a compact and nano-sized design, so it can use nano HD covers and mounting accessories.
Ubiquiti UniFi U6-Lite – Technical Specifications
Mechanical
- Dimensions: Ø160 x 32.65 mm (Ø6.3 x 1.3″)
- Weight:
– Without Mount: 300 g (10.6 oz)
– With Mount: 315 g (11.1 oz) - Enclosure Characteristics: Polycarbonate 110 and ADC12 Die Casting
- Mounting Characteristics: Polycarbonate, SGCC Steel
Hardware
- Processor Specs: 880 MHz MIPS 1004 KEc
- Memory Information: 256 MB
- Management Interface: Ethernet In-Band
- Networking Interface: (1) 10/100/1000 Mbps Ethernet RJ45
- Buttons: Factory Reset
- LEDs: White/Blue
- Power Method: 802.3af PoE, Passive PoE (48V)
- Power Supply: 802.3af PoE; 48V, 0.32A PoE Adapter (Not Included)
- Supported Voltage Range: 44 to 57VDC
- Max. Power Consumption: 12W
- Max. TX Power
– 2.4GHz: 23 dBm
– 5GHz: 23 dBm - MIMO:
– 2.4GHz: 2 x 2-
5GHz: 2 x 2 - Throughput Speeds
-2.4GHz: 300 Mbps
– 5GHz: 1201 Mbps - Antenna Gain
– 2.4GHz: 2.8 dBi
– 5GHz: 3 dBi - Operating Temperature: -30 to 60° C (-22 to 140° F)
- Operating Humidity: 5 – 95% Noncondensing
- Certifications: CE, FCC, IC
Software
- WiFi Standards
– 802.11a/b/g
– WiFi 4/Wi-Fi 5/Wi-Fi 6 - Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
- BSSID 8 per Radio
- VLAN: 802.1Q
- Advanced: QoS Per-User Rate Limiting
- Guest Trafc Isolation: Supported
- Concurrent Clients: 300+
Supported Data Rates (MBPS)
- 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11n (Wi-Fi 4): 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
- 802.11b: 1, 2, 5.5, 11 Mbps
- 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11ac: (Wi-Fi 5): 6.5 Mbps to 866.7 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80)
- 802.11ax: (Wi-Fi 6) 6.3 Mbps to 1.2 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80)
