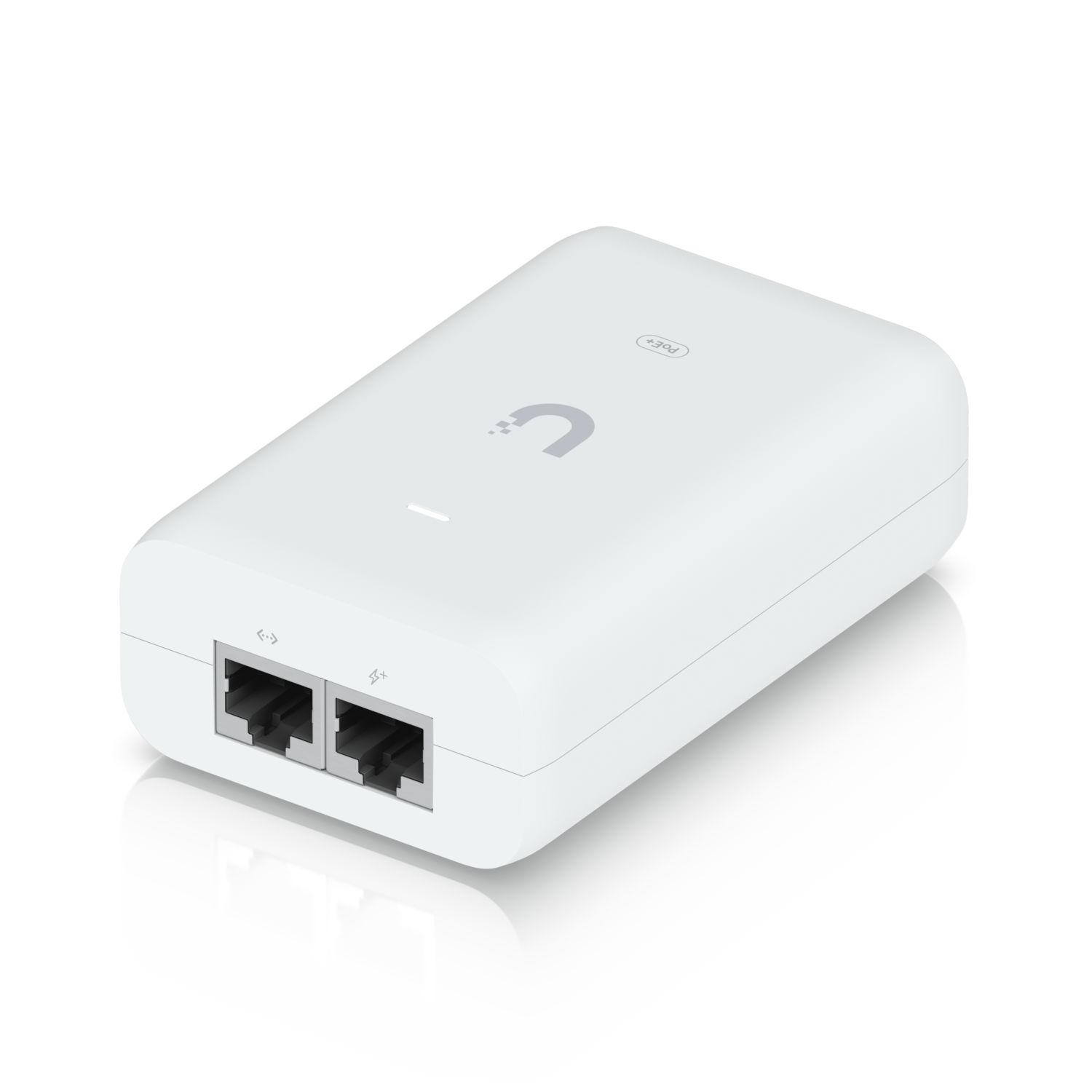

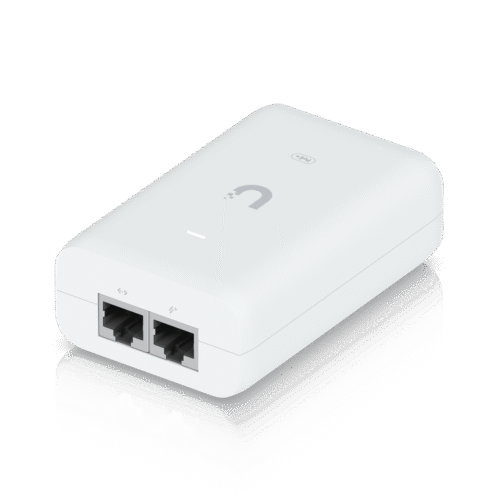

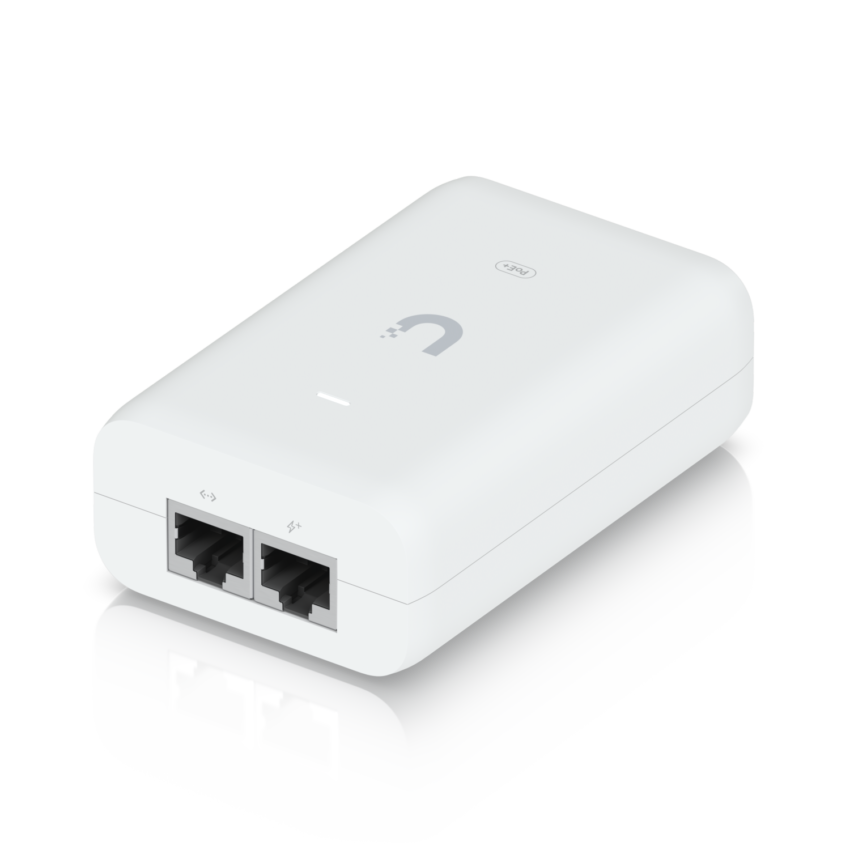

Ubiquiti Networks U-POE-AT PoE+ Adapter 48V DC @ 0.65A

Ubiquiti U-POE-AT PoE+ Adapter is a high-performance PoE injector designed to deliver 48V DC @ 0.65A of reliable power to PoE+ devices. Built for Ubiquiti Networks products, this adapter ensures stable performance while offering surge protection, clamping protection, and peak pulse current protection, safeguarding your network against power-related disruptions.

Its Gigabit LAN support and shielded RJ45 connectors make it ideal for powering UniFi access points, IP cameras, VoIP phones, and other PoE-compatible devices with maximum efficiency and reliability.

Key Features

• Output Voltage: 48V DC @ 0.65A
• Gigabit LAN port for high-speed connectivity
• Surge, clamping, and ESD protection
• Compact and lightweight design (156 g only)
• 2-pair powering: Pins 4, 5 (+) and 7, 8 (–)
• Shielded RJ45 socket for stable connections
• Reliable 87% efficiency for energy savings
• Designed for Ubiquiti Networks PoE devices

Technical Specifications

• Model: U-POE-AT
• Dimensions: 93 x 62 x 35 mm (3.66 x 2.44 x 1.38″)
• Weight: 156 g (5.5 oz)
• Output Voltage: 48V DC @ 0.65A
• Rated Voltage: 100–240V AC @ 50/60Hz
• Input Current: 0.75A Max.
• Inrush Current: <100A peak @ 26°C
• Efficiency: 87%
• Output Ripple: 1% Max.
• Switching Frequency: ≤70 kHz
• Line Regulation: ≤ 3%
• Load Regulation: ≤ 5%
• LAN Activity Indicator: No
• Remote Reset Capability: No
• Reset Button: No
• AC Connector: IEC-320 C6
• PoE Method: Passive (2-pair powering)
• Data In / PoE Out: RJ45 shielded socket
• Operating Humidity: 35% to 95% non-condensing
• Storage Temperature: -30 to 70°C
• Operating Temperature: 0 to 40°C
• Surge Protection: Difference and common mode
• Clamping Protection: 11V data, 60V power
• Max. Surge Discharge: 1500A (8/20 μs) power
• Peak Pulse Current: 36A (10/1000 μs) data
• Shunt Capacitance: <5 pF data
• Response Time: <1 ns

This Ubiquiti U-POE-AT is more than just a power injector—it is a reliable PoE+ power solution that delivers efficiency, protection, and durability. Whether powering UniFi access points, airMAX devices, or IP surveillance systems, this adapter guarantees consistent performance and helps extend the life of your network equipment.

Ideal for enterprise networks, ISPs, and home installations requiring PoE+ power delivery with built-in surge protection.
