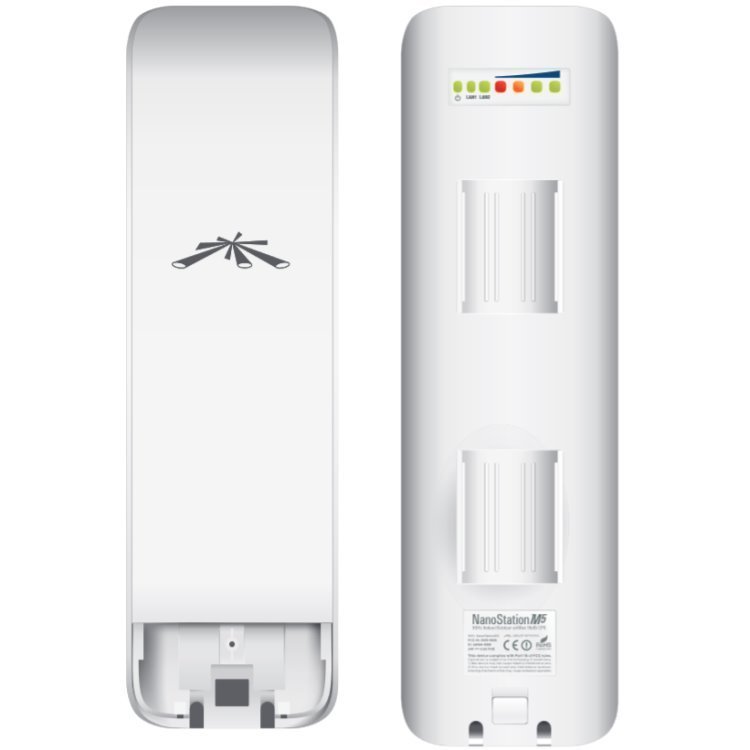

Ubiquiti NanoStation M5 NSM5 airMAX

Ubiquiti NanoStation M5 (NSM5) is a high-performance outdoor CPE designed for Point-to-Point (PtP) and Point-to-MultiPoint (PtMP) links. Featuring advanced radio architecture and a next-gen antenna system, it offers real outdoor throughput of up to 150 Mbps and a range of up to 15 km. Perfect for AirMax sector antennae and Rocket M5 pairings.

With a compact design suitable for both indoor and outdoor use, the NanoStation M5 operates on 5GHz frequencies and provides up to 150 Mbps real throughput and a range of 15 km+.

This makes it ideal for short Line-of-Sight (LOS) Point-to-Point (PtP) links. It’s the perfect solution when paired with the Ubiquiti Rocket M5 and AirMax sector antennae.

Key Features

• Excellent Performance: Achieve real outdoor throughput of 150+ Mbps and a range of up to 15 km. Typical range is 2-4 miles from a LOS tower with AirMax sector antennae and Rocket M5s.
• Next-Generation Antenna Design: 14.6-16.1 dBi dual-polarity gain at 5 GHz with optimized cross-polarity isolation, delivering exceptional performance in a compact form factor.
• Dual Ethernet Ports: Includes a secondary Ethernet port with software-enabled PoE output for seamless IP Video integration.
• Intelligent PoE: Remote hardware reset functionality enables device reset remotely, streamlining maintenance and management.
• 802.3af 48V Compliant: Easily integrates with 802.3af networks using the Ubiquiti Instant 802.3af adapter (sold separately).
• Easy Installation: Comes with mounting straps for easy installation on poles and masts. The NanoBracket (sold separately) allows for 360-degree mounting and adjustment.

Technical Specifications

• Operating Frequency: 5250-5850 MHz
• Processor: Atheros MIPS 74Kc, 560 MHz
• Wireless: 5 GHz Atheros, 27 dBm Adjustable down to 8 dBm, AES Encryption
• Memory: 64 MB DDR2, 8 MB Flash
• Networking Interface: 2 x 10/100 BASE-TX Ethernet (Cat. 5, RJ-45)
• Power Method: Passive PoE (Pairs 4, 5+; 7, 8 return)
• Power Consumption: 8 Watts
• Power Supply (Included): Power Injector (110-240VAC 24VDC, 0.5A, North American-style plug)
• Mounting Options: Mounting strap included (NanoBracket sold separately)
• Operating Temperature: -30°C to +75°C
• Size: 29.4 cm x 8 cm x 3 cm
• Weight: 0.4 kg
• Approvals: FCC Part 15.247, IC RS210, CE
• RoHS Compliance: Yes

Common FAQs

1. What is the maximum range of the NanoStation M5?
   The NanoStation M5 can provide a range of up to 15 km, with typical ranges between 2-4 miles from a LOS tower using AirMax sector antennas and Rocket M5s.
2. Can the NanoStation M5 be used for Point-to-Point (PtP) links?
   Yes, the NanoStation M5 is ideal for short Line-of-Sight (LOS) PtP links when placed in Access Point WDS Mode and paired with another device in Station WDS Mode.
3. Does the NanoStation M5 support PoE?
   Yes, it supports passive PoE and can also output PoE to other devices via its secondary Ethernet port.
4. How is the NanoStation M5 mounted?
   It can be easily mounted on poles or masts using the included mounting straps. The optional NanoBracket allows for 360-degree mounting and adjustments in any direction.
5. What are the power requirements for the NanoStation M5?
   The device operates using a 24V DC power supply (included) with passive PoE. The power consumption is 8 Watts.
