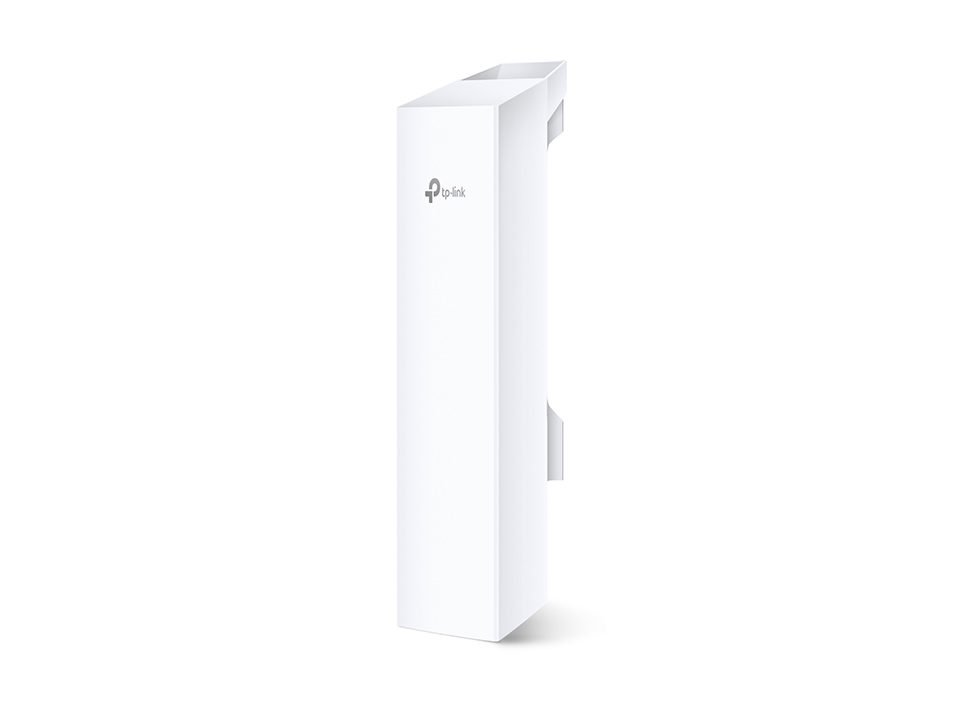

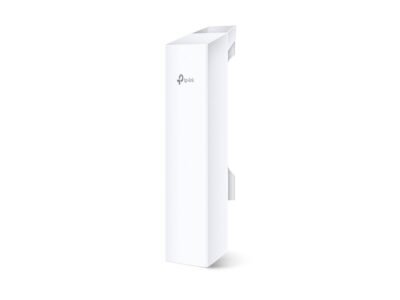

TP-Link CPE 2.4 GHz 300Mbps 12dBi Outdoor CPE – TL-CPE220

TP-Link CPE220 | 2.4GHz 300Mbps 12dBi Outdoor CPE is a powerful, weatherproof outdoor access point designed for long-range wireless data transmission. Ideal for point-to-point and point-to-multipoint applications, the CPE220 combines a high-gain 12dBi directional antenna with advanced software for cost-effective, professional outdoor networking.

Key Features

• Long-Range Transmission: Built-in 12dBi dual-polarized directional antenna and high-powered transmission ensure stable connectivity over distances exceeding 5km+.
• Optimized Outdoor Design: Durable weatherproof enclosure with built-in lightning protection and wind resistance, designed for challenging environments.
• TP-Link Pharos MAXtream Technology: Improves throughput and stability in PTMP (Point-to-MultiPoint) scenarios using TDMA.
• Multiple Operating Modes: Supports AP, Client, AP Router, and WISP Client Router modes for flexible deployment.
• Centralized Management: Manage multiple CPE units via TP-Link’s Pharos Control centralized management software.
• Passive PoE Support: Includes a 60m-capable passive PoE injector for simplified, remote installations.

Specifications

• Model: TL-CPE220
• Wireless Standards: IEEE 802.11b/g/n (2.4GHz)
• Frequency: 2.4 – 2.483GHz
• Wireless Speed: Up to 300Mbps
• Antenna: Built-in 12dBi 2×2 MIMO directional antenna
  • Horizontal Beamwidth: 60°
  • Vertical Beamwidth: 30°
• Transmit Power: Adjustable up to 30dBm (1000mW)
• Processor: Qualcomm Atheros 560MHz CPU, MIPS 74Kc
• Memory: 64MB DDR2 RAM, 8MB Flash
• Interface:
  • 1 × 10/100Mbps Shielded Ethernet Port (Passive PoE in)
  • 1 × Grounding Terminal
  • 1 × Reset Button
• Power Supply:
  • Passive PoE (LAN0: pins +4,5 / -7,8)
  • Voltage Range: 16–27V DC
  • Max Power Consumption: 8.5W
• Enclosure: Outdoor weatherproof (ASA material), IP65-rated
• Lightning Protection: 15KV ESD, 6KV Lightning Protection
• Mounting: Pole mountable
• Dimensions: 224 × 79 × 60 mm

Software Features

• Modes: AP / Client / AP Router / WISP Client Router
• Security: WPA/WPA2, WPA-PSK/WPA2-PSK, 64/128/152-bit WEP encryption
• Wireless Tools:
  • MAXtream TDMA
  • Distance Adjustment (ACK timeout)
  • SSID Broadcast Enable/Disable
  • Multi-SSID with VLAN Tagging
• Management:
  • Pharos Control (centralized management)
  • Web UI, SNMP, System Logs, Remote Reset
• Advanced Functions:
  • Throughput Monitor
  • Spectrum Analyzer
  • Watchdog Timer
  • Ping, Traceroute
  • Speed Test Utility

Common FAQs

• Is the CPE220 suitable for point-to-point bridging?
  Yes, it’s ideal for long-distance P2P and P2MP wireless bridging.
• Can I manage it remotely?
  Yes, using the Pharos Control software or web-based UI.
• Does it support PoE?
  Yes, it includes a passive PoE injector and supports up to 60 meters of deployment.
• Is it weatherproof?
  Yes, it features a rugged, IP65-rated enclosure designed for outdoor use.
