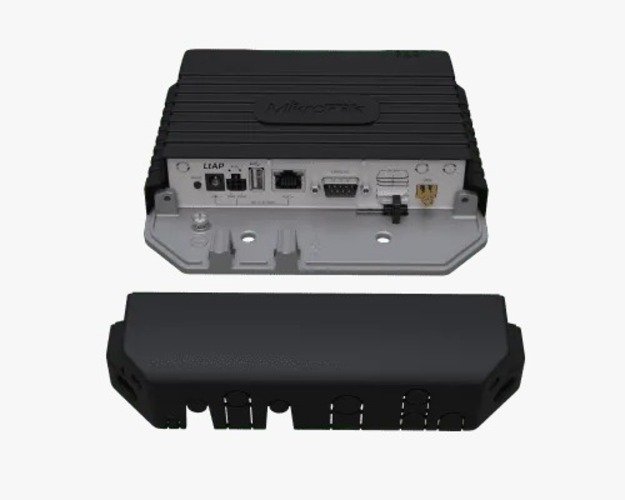

MikroTik LtAP (RBLtAP-2HnD) Using Dual PCI-e LTE Modems

MikroTik LtAP is a rugged, compact 4G LTE router designed for mobile connectivity, remote deployments, and industrial networking applications. With dual miniPCIe slots for multiple LTE modems, built-in 2.4GHz Wi-Fi, and versatile power input options, it’s perfect for transportation systems, field offices, and IoT networks.

Key Features

• Dual LTE Modem Support: Two miniPCI-e slots allow simultaneous use of dual LTE modems for network redundancy, failover, or multi-ISP deployments.
• Built-in 2.4GHz Wireless N: Integrated Wi-Fi access point (802.11b/g/n) provides up to 300 Mbps for wireless clients in the field.
• Rugged Outdoor-Ready Design: Heavy-duty case and wide temperature support make it ideal for harsh environments or mobile vehicles.
• GPS & Serial Connectivity: Comes with a GPS module and RS232 serial port for fleet tracking or remote terminal access.
• Multiple Power Inputs: Supports 12–30V input via DC jack, PoE-in, or automotive power — making it easy to deploy anywhere.
• Ethernet & Expansion: Includes one Gigabit Ethernet port, one USB port, and room for expansion with a third miniPCIe slot (for GPS, extra LTE, or 802.11ac card).
• RouterOS with Level 4 License: Advanced networking features including firewall, hotspot, VPN, load balancing, and LTE management.

Specifications

• Model: RBLtAP-2HnD
• CPU: QCA9531, 650 MHz, Single-Core
• RAM: 128 MB
• Storage: 16 MB Flash
• Wireless Interface: 2.4 GHz 802.11b/g/n
• Max Wireless Speed: 300 Mbps
• Antenna Gain: 2.5 dBi (2 internal antennas)
• MiniPCI-e Slots: 3 slots (2 for LTE modems, 1 for GPS or expansion)
• LTE Connectivity: Supports MikroTik R11e-LTE and other miniPCIe modems (not included by default)
• Ethernet Port: 1 × 10/100/1000 Ethernet
• Serial Port: RS232
• USB Port: 1 × USB 2.0
• GPS: Yes, built-in GPS module
• Power Input:
  • DC Jack (12V–30V)
  • Passive PoE-in (11–30V)
  • Automotive terminal block
• Max Power Consumption: Up to 24W (with LTE and full load)
• RouterOS License: Level 4
• Operating Temperature: -40°C to +70°C
• Dimensions: 150 × 170 × 40 mm
• Mounting Options: Wall and DIN rail mountable
• Included Accessories: PoE injector, power supply, mounting kit

Common FAQs

Can I use two SIM cards at the same time?
Yes, if both PCIe slots are populated with LTE modems and each has a SIM card, you can configure load balancing or failover.

Does it support GPS tracking?
Yes, the LtAP comes with a built-in GPS module for use in vehicle tracking or location-aware networking.

Is it suitable for vehicle installation?
Absolutely — it supports 12–30V input and has a rugged enclosure with automotive power connectors, making it ideal for buses, trucks, and trains.

What modems are compatible?
Most MikroTik miniPCIe LTE modems like the R11e-LTE, R11e-LTE6, and R11e-LTE-US are supported.

Does it support Wi-Fi AC?
The base unit includes only 2.4GHz Wi-Fi (802.11n), but you can add a 5GHz card in the third miniPCIe slot if needed.
