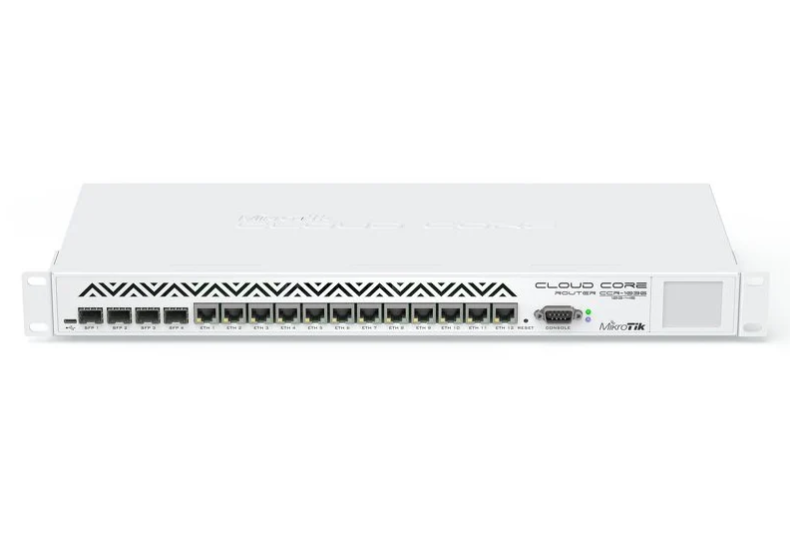

Mikrotik CCR1036-12G-4S Router, Tile-Gx36 CPU (36-cores, 1.2Ghz per core)

MikroTik CCR1036-12G-4S Cloud Core Router is a carrier-grade router built for enterprises, ISPs, and mission-critical networks that demand extreme performance and reliability. Powered by the Tilera Tile-Gx36 CPU with 36 cores at 1.2GHz, it delivers processing power over 20 times faster than previous models, achieving up to 24 million packets per second or 16Gbps wire speed.

Equipped with 12 Gigabit Ethernet ports, 4 SFP ports, a USB port, and serial console, the CCR1036-12G-4S offers maximum flexibility for complex network infrastructures. Featuring a color touchscreen display for live traffic graphs and quick setup, this router is powered by RouterOS v6 (64-bit, Level 6 license), enabling advanced features like MPLS, VPN, firewall, hotspot, load balancing, QoS, and real-time monitoring.

Features

• Cutting-Edge CPU: 36-core Tilera Tile-Gx36 processor, 1.2GHz per core.
• Unmatched Performance: Handles up to 24M packets per second and 16Gbps throughput.
• Enterprise Memory Support: Ships with 4GB DDR3 RAM, expandable up to 16GB+ (no OS limit).
• Advanced RouterOS v6: Includes dynamic routing, MPLS, VPN, firewall, load balancing, hotspot, and QoS.
• Multiple Interfaces: 12 × Gigabit Ethernet, 4 × 1.25G SFP cages, 1 × USB, 1 × serial console.
• Touchscreen Display: Monitors traffic and device status with ease.
• Rackmount Design: 1U case with integrated power supply for data centers.
• SFP Compatible: Tested with MikroTik SFP modules (S-85DLC05D, S-31DLC20D, S-35/53LC20D – not included).

Specifications

• Product Code: CCR1036-12G-4S
• Brand: MikroTik
• CPU: Tilera Tile-Gx36, 36 cores @ 1.2GHz
• RAM: 4GB DDR3 (2 × 2GB pre-installed), expandable to 16GB+
• Storage: 1GB NAND
• Operating System: RouterOS v6 (64-bit), Level 6 license
• Interfaces:
  • 12 × 10/100/1000 Gigabit Ethernet ports
  • 4 × SFP (Mini-GBIC, modules not included)
  • 1 × USB port
  • 1 × Serial console port
• Case Type: 1U rackmount with power supply
• Dimensions: 355 × 145 × 44 mm
• Performance: 24 million packets per second / 16Gbps wire speed

Application Areas

• ISPs & Data Centers: High-performance backbone routing.
• Enterprise Networks: Reliable and secure routing for large-scale infrastructures.
• Telecom & Carriers: Supports advanced services like MPLS, QoS, and VPNs.
• Government & Banking: Carrier-grade security and uptime.
• High-Demand Environments: Suitable for mission-critical applications with heavy traffic loads.

Common FAQs

How powerful is the MikroTik CCR1036-12G-4S?
It processes up to 24M packets per second with 16Gbps throughput, thanks to its 36-core Tilera CPU.

How much memory does it support?
It comes with 4GB DDR3 RAM by default and supports 16GB or more with no RouterOS memory limits.

What interfaces are included?
12 Gigabit Ethernet ports, 4 SFP ports, 1 USB port, and 1 serial console.

Does it support SFP modules?
Yes, it’s compatible with MikroTik SFP modules like S-85DLC05D, S-31DLC20D, and S-35/53LC20D (sold separately).

Can it be used in data centers?
Yes, it comes with a 1U rackmount case and integrated power supply, ideal for enterprise and ISP use.

What advanced features does RouterOS provide?
Dynamic routing, hotspot, firewall, MPLS, VPN, QoS, load balancing, bonding, and real-time monitoring.
