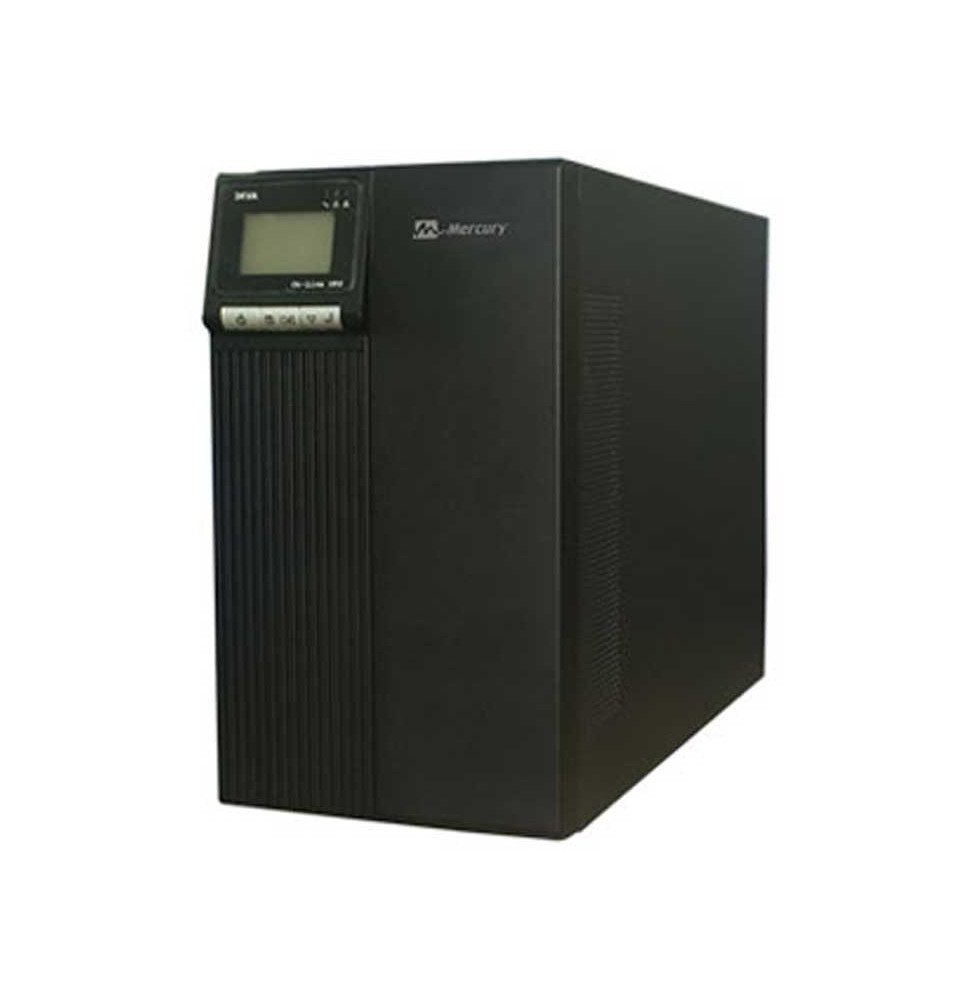

Mercury Online HP920C-S 2KVA/1.6KW UPS

Name: Mercury Online HP920C-S 2KVA/1.6KW UPS
Brand: Mercury UPS
Availability: InStock

KSh84,000.00 Ex.VAT

Mercury Online HP920C-S 2KVA/1.6KW UPS
Mercury HP920C-S 0.8PF, Online UPS 2KVA/1.6KW 1/1phase, 1x IEC320-C20 Input Socket 4 x IEC320-C13 output sockets, 4 x IEC320-C14 output cable, 96VDC (8x7AH/12V Battery), RS232 & USB Communication

For your sensitive equipment where zero tolerance for a break in a power supply is imperative, an online UPS is what to deploy. That would be the case with such applications as small network systems, servers, and other IT equipment. An online UPS not only provides the required power backup but also ensures zero switch-over time to prevent service disruption.

When you want the perfect balance between top performance, reliability, and budget-friendly pricing, the Mercury online UPS range has an outstanding rating. With the Mercury 2kva online UPS, you get that high-rated performance from a 1400 W capacity UPS.

With a rated capacity of 1400W, the Mercury 2KVA online UPS can support multiple office devices. It will deliver up to 19 minutes of power backup at half load and some 8 minutes of backup at full load. Powered by 3x 7AH battery, the Mercury 2KVA online UPS meets the backup requirement for most small office appliances.

MERCURY 2KVA/1.6KW ONLINE UPS FEATURES;

The advanced design of the Mercury online UPS range gives them the performance edge that you expect. Here’s more on the features you will expect from the Mercury 2KVA Online UPS:

Capacity: 2KVA / 1600W
Phase: Single Phase
Technology: High frequency and double conversion online technology
Fully digitized microprocessor control
Wide input voltage range: 115VAC(±5) ~ 295VAC(±5) if load ≤ 70%
LCD
UPS startup without battery
Cold start
Advanced battery management
Automatic battery charge in UPS off-mode
Lightning and surge protection
Short circuit and overload protection
Fan speed auto control when loads vary
Network/Fax/Modem surge protection
Optional extension battery pack
Battery voltage display
Load capacity display
EMI/RFI noise filter
Smart RS232 communication with monitoring software
Optional SNMP Card slot
EPO function(optional)
Input L and N reversed alarm function
Battery: 3x 12V / 7AH
Ideal applications: Small network, servers, and other IT equipment

SPECIFICATIONS OF MERCURY 2KVA UPS

Here are the specs:

Capacity	2KVA / 1600W
Phase	Single Phase
Input voltage	115VAC(±5) ~ 295VAC(±5) if load ≤ 70%; 160VAC(±5) ~ 295VAC(±5) if load ≥ 70%
Frequency	46 ~ 54±0.5Hz; 56 ~ 64±0.5Hz auto-sensing
Input power factor	≥ 0.97
Output voltage	220/230VAC ± 2%
Frequency	50Hz / 60Hz ± 0.2%
THD	< 3% (linear load); < 6% (non linear load)
Overload capability	> 110%, 30s turn to bypass mode; > 150%, 300ms turn to bypass mode
Crest factor	3:1 (max)
Short circuit protection	• 5 cycles turn off the inverter, no transfer tp bypass, provide alarm (AC mode); • 5 cycles turn off the inverter, provide alarm (AC mode); • Input fuse blown or breaker action (bypass mode)
Waveform	Pure sine wave
Transfer time	• 0ms between AC mode & Bypass mode • 4ms (typical 2.5ms) between Inverter mode & Bypass mode
Efficiency	≥ 85%
Model	12V sealed lead acid maintenance-free
Battery	8x 12V / 7AH
DC voltage	96VDC
Back-up	19min (half load); 8min (full load)
Recharge time	8hours ~ 90% capacity
Charge current	1A(standard unit);6A(long time unit)
Communication interface	RS232 ; SNMP (optional)
LED indication	Load or battery capacity
Noise level	< 45dB
Temperature	0 ~ 40˚C
Humidity	0% ~ 95% (non-condensing)
Altitude	< 1500m
Storage temperature	-25 ~ 55˚C
Standard unit (net/gross)	33 / 35kg
Long time unit (net/gross)	14 / 16kg
Dimension (WxDxH)mm	191 x 478 x 339mm
Packing(WxDxH)mm	332 x 603 x 482mm
