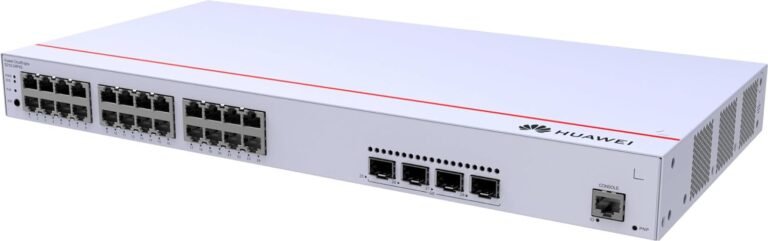

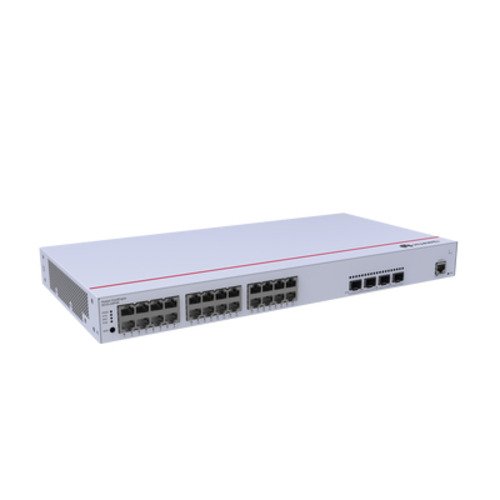

Huawei S310-24P4S Gigabit PoE+ L2+ Smart Switch

Buy Huawei S310-24P4S Gigabit PoE+ L2+ Smart Switch in Kenya and power up your network with high throughput, intelligent control, and strong PoE capabilities. This Layer-2+ switch from Huawei’s S310 series comes with 24 Gigabit Ethernet PoE+ ports and 4 GE SFP uplink ports, offering both power delivery and fast data transport for devices like IP cameras, access points, and VoIP phones.

The S310-24P4S supports a total PoE power budget of up to 400 W, enabling you to power a large number of PoE devices simultaneously. It also includes advanced L2+ features such as static routing, VLAN management, link aggregation, QoS, and security controls like 802.1X, MAC authentication, and DHCP snooping. The switch is built in a sturdy 1U rackmount metal case, includes dual cooling fans, and is suitable for demanding business, surveillance, or campus environments.

Key Features

• 24 × Gigabit Ethernet PoE+ Ports – Supplies both data and power to devices through standard Ethernet cables.
• 4 × GE SFP Uplink Ports – For fiber or longer distance connections.
• PoE+ Support (IEEE 802.3af/at) with 400W Budget – Power up multiple devices without external adapters.
• Layer-2+ Features – Includes static routing, Spanning Tree (STP/RSTP/MSTP), VLANs, and link aggregation.
• Intelligent QoS & Traffic Management – Prioritizes latency-sensitive traffic (voice, video) for smoother performance.
• Comprehensive Security – 802.1X, MAC authentication, DHCP snooping, port security, and storm control.
• Energy Efficient & Reliable Design – Dual fans, metal housing, and efficient thermal performance.
• Rackmount, 1U Chassis – Fits perfectly into standard server or network racks.
• Warranty & Support – Backed by Huawei’s trusted build quality and support.

Technical Specifications

• Model: Huawei S310-24P4S
• Downlink Ports: 24 × 10/100/1000 Mbps RJ45 (PoE+)
• Uplink Ports: 4 × GE SFP Ports
• PoE Budget: Up to 400W total output
• Switching Capacity: 56 Gbps
• Packet Forwarding Rate: 42 Mpps
• Power Consumption: 47.1W (without PoE); up to 491.66W under full PoE load
• Operating Temperature: -5°C to +50°C
• Dimensions: 43.6 × 442 × 220 mm
• Weight: 2.92 kg
• Cooling System: 2 built-in fans with forced air cooling
• Surge Protection: Service port ±7 kV, power supply ±6 kV
• Security Features: Port security, ACL, DHCP snooping, 802.1X authentication
• QoS Features: Priority queuing, SP, WRR, traffic shaping
• VLAN Support: Up to 4,000 VLANs
• Jumbo Frame: 9,216 Bytes
• MAC Address Table: 8K entries
• Management: Web GUI, SNMP, Telnet, SSH, CLI, and RMON
• Warranty: 1 Year

Common FAQs

Q1: Can all PoE ports be used at maximum power simultaneously?
Yes — the switch supports up to 400W total PoE power, distributed across all 24 ports.

Q2: What Layer-2+ features does the switch support?
It supports VLANs, Spanning Tree protocols (STP, RSTP, MSTP), static routing, link aggregation, and advanced traffic management.

Q3: Is this switch manageable or plug-and-play?
It is a Smart Managed (L2+) switch that allows configuration through a web interface, CLI, SNMP, or SSH.

Q4: How loud is the switch?
It features two built-in fans with an average noise level of about 49 dB(A) under standard conditions.

Q5: Is the switch suitable for rack mounting?
Yes. It comes in a 1U metal chassis that fits standard 19-inch racks.

Shop for the Huawei S310-24P4S Gigabit PoE+ L2+ Smart Switch in Kenya at TDK Solutions, your trusted Huawei networking equipment supplier. We offer genuine Huawei switches, the best prices, fast delivery, and professional technical support.

Upgrade your business or surveillance network today with the Huawei S310-24P4S — the perfect PoE+ smart switch for high-performance and reliable connectivity.
