GSM Signal booster Mushroom/Panel Antenna

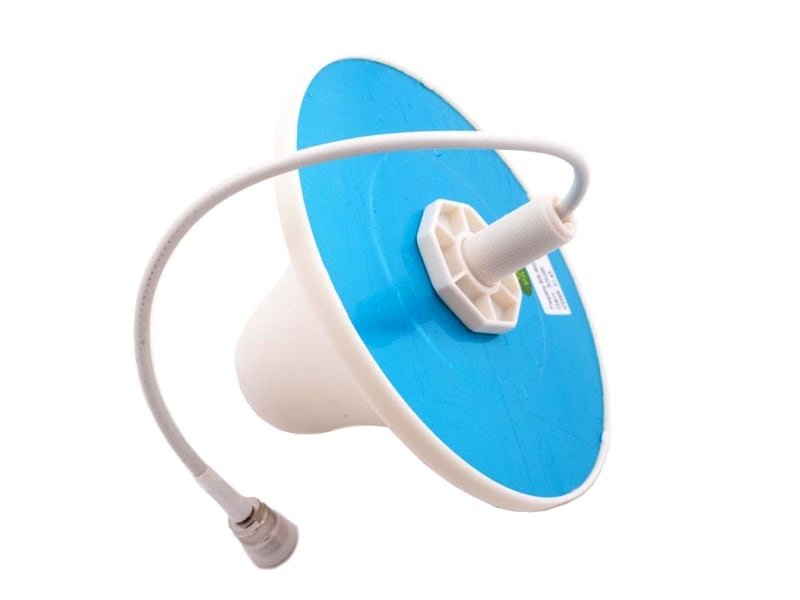

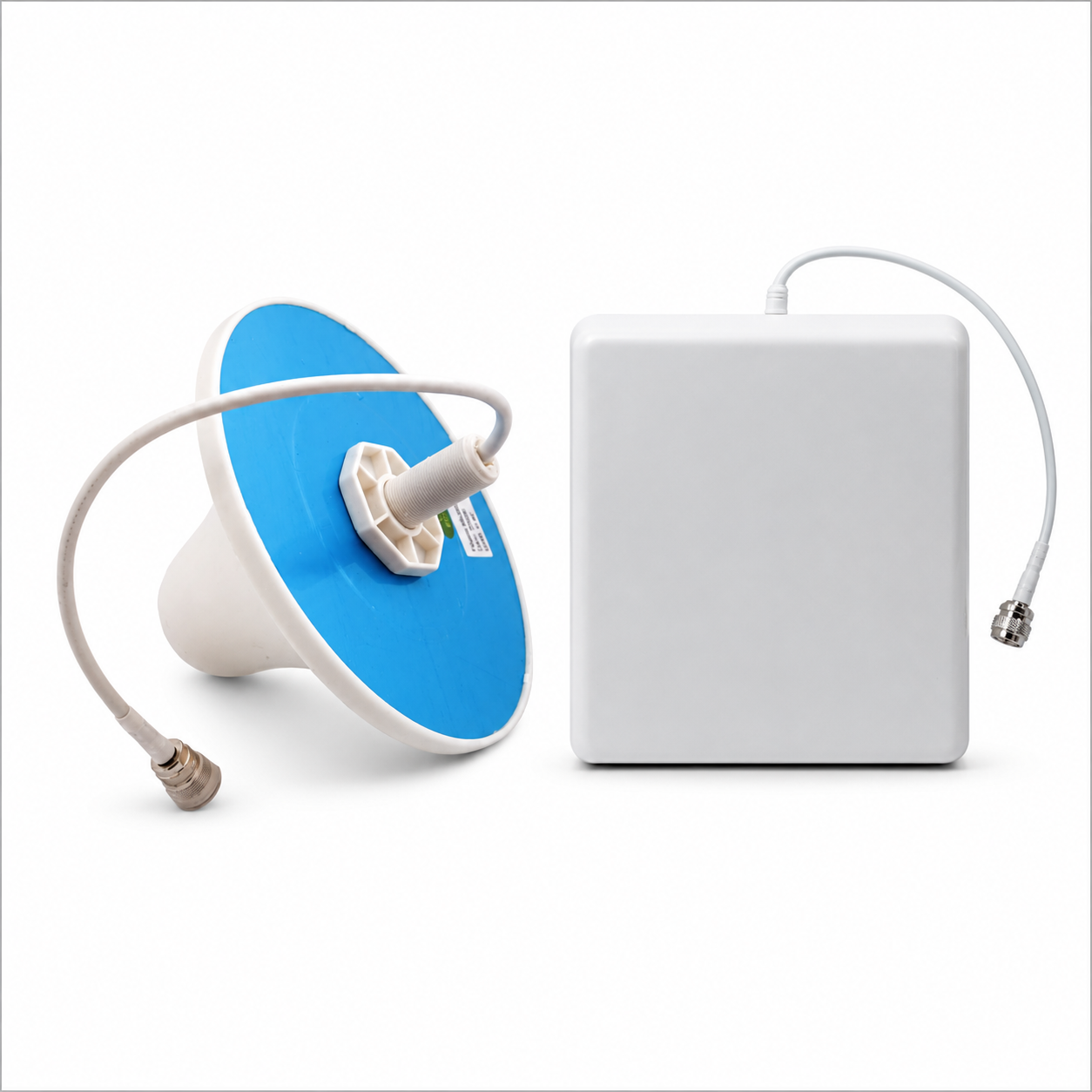

GSM Signal booster Mushroom Antenna (often called an indoor ceiling-mount omnidirectional antenna) is a specialized internal component used alongside a mobile signal repeater or booster system. Unlike directional panel antennas that target a specific room or hallway, a mushroom antenna distributes the boosted cellular signal evenly in a 360-degree radius across an open indoor area.

Here is a breakdown of how it works, its features, and top local product specifications:

How It Fits into Your Signal Booster System

A complete cell phone booster setup relies on three parts working together:

1. Outdoor Antenna (Yagi or Panel): Captures the weak signal from the nearest carrier tower.
2. The Booster Base Unit: Amplifies the captured signal.
3. Indoor Mushroom Antenna: Receives the amplified signal via an RF cable and disperses it throughout your home or office.

Technical Specifications & Capabilities

• Radiation Pattern: 360-degree omni-directional coverage, meaning it sends and receives signals in all horizontal directions simultaneously.
• Frequency Range: Broadly covers 800 MHz to 2500 MHz (and up to 2700 MHz depending on the variant). This allows it to support GSM, 2G, 3G, 4G LTE, and basic 5G network bands across providers like Safaricom, Airtel, and Telkom.
• Gain: Typically ranges between 2 dBi and 5 dBi.
• Connector Type: Usually equipped with an N-Female connector or N-Male pig-tail cable to attach securely to heavy-duty low-loss coaxial cables.
• Impedance: 50 Ohms (standard matching impedance for commercial RF signal repeaters).

Key Advantages

• Visual Appeal: The sleek, low-profile dome structure mounts flush against plasterboard or drop ceilings, looking similar to a smoke detector so it doesn’t ruin your interior decor.
• Reduced Maintenance: The smooth dome shape naturally prevents dust build-up compared to exposed panel or whip antennas.
• Device Battery Efficiency: By filling dead zones with strong indoor signal coverage, your mobile phones stop constantly hunting for a network tower, which helps save phone battery life.

Available Purchase Options & Kits

If you are looking to buy one or replace an old internal antenna, you can find them via several local vendors:

• Mushroom Indoor Omni-Antenna (Standalone):
  • Coverage: Multi-band support across 2G/3G/4G/5G.
• Complete Triband GSM Signal Booster Kit with Mushrooms:
  • Coverage: Best for multi-story buildings or large office spaces that require multiple broadcast nodes to prevent signal drop-off.
