Name: Growatt MOD 15KTL3 -X 15Kw Grid-Tie Three-Phase Solar Inverter
Brand: Hybrid Solar Inverters
Availability: InStock

Description

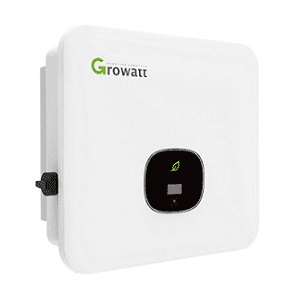

Growatt MOD 15KTL3 -X 15Kw Grid-Tie Three-Phase Solar Inverter

Growatt is the No.1 residential solar inverter supplier and is also one of the top 3 PV inverter suppliers for distributed generation solar energy since 2018 and ranks among the global top 10 PV inverter suppliers.

The World’s Manufacturer provides residential, commercial, and utility photovoltaic inverters, energy storage, microgrid systems, and smart energy management solutions.

Growatt MOD 15KTL3-X Thre Phase Inverter 15000kW

Max. efficiency 98.6%
OLED and Touch button
Type II SPD on DC and AC side
String Monitoring
AFCI optional

Technical Data

Model	MOD 10KTL3-X \| MOD 11KTL3-X \| MOD 12KTL3-X \| MOD 13KTL3-X \| MOD 15KTL3-X
Max. recommended PV power	15000W \| 16500W \| 18000W \| 19500W \| 22500W
Max. DC voltage	1100V
Start Voltage	200V
Nominal voltage	580V
No. of MPP trackers	2
AC nominal power	10000W \| 11000W \| 12000W \| 13000W \| 15000W
Nominal AC voltage	220V/380V, 230V/400V (340-440V) \| 50/60 Hz (45-55Hz/55-65 Hz)
Max. output current	16.7A \| 18.3A \| 20A \| 21.7A \| 25A
MAX. efficient	98.6%
AC/DC surge protection	Type II / Type II
Weight	14kg \| 14kg \| 16kg \| 16kg \| 16kg
Dimensions	425/387/178mm
Interfaces: USB/RS485/WIFI /GPRS//LAN/RF	yes/yes/Optional/Optional/Optional/Optional
Warranty: 5 / 10 years	Yes/Optional
