Fiber Optic Splicing Machine
The Fiber-optic fusion splicing machine AI 9 Signal Fire is a proven solution in the market of fiber-optic fusion splicers. Despite advanced fiber positioning and splicing techniques, the device is offered for a very competitive price.
The working comfort will be appreciated by both beginner and advanced users, including experienced installers. The quality and reliability of the splicing machine have been confirmed in a number of tests performed under a variety of environmental conditions and on different types of fibers.
Signal Fire AI-9 employs core alignment technology (there is the option of cladding alignment) that ensures minimum attenuation of the splices. Fiber ends are positioned by 6 stepper motors from Siemens, which is an absolute exception in this price category.
The Fiber Optic Fusion Splicer can be used both for the deployment of hundred-kilometer-long fiber optic trunks and in FTTH systems requiring short point-to-point connections, in LAN installations, and fiber-based video surveillance systems.
The AI-9 model is controlled by a quad-core processor providing fast response times (the splicer is ready to work after 3 seconds) and ensuring short splicing and sleeve heating operations. The splicer is one of the fastest devices of its kind currently available on the market and the fastest in its price class.
Fiber Optic Splicing machine Features
- 6 motors for fiber positioning,
- core alignment or cladding alignment options,
- AUTO mode option,
- x300 magnification factor,
- quad-core processor providing fast response times,
- splicing time from 5 seconds,
- quick sleeve heating period (15 s for 40 mm sleeve),
- configuration with dedicated smartphone app (Android/iOS),
- the app can create operation reports (export to xls),
- large (5.1”) display with adjustable brightness,
- metal casing underneath covered with rubber layer,
- high-capacity exchangeable battery (7800 mAh, ca. 200 splicing and heating operations),
- battery charging time: ca 3.5 h,
- USB adapter for smartphone charging,
- universal fiber holders,

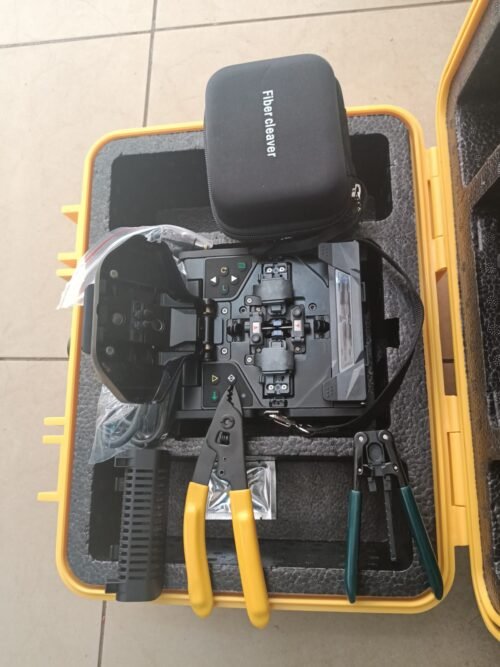

- high quality practical toolbox,
- large set of accessories.
