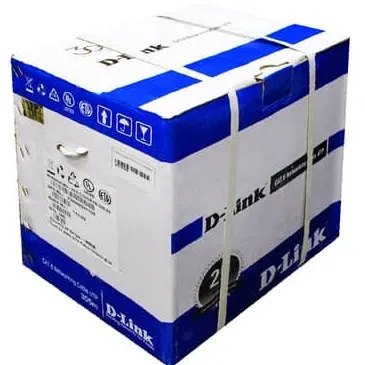

Cat6E D-Link UTP Ethernet Cables. Pure Copper
KSh16,800.00 Ex.VAT
D-Link Cat6e Ethernet Cable – Pure copper UTP 23 AWG Ethernet Cables Kenya 305 Meters
D-Link Ethernet Cables provide an easier and cost-effective way to create a Local Area Network that supports Gigabit Ethernet (1000Base-T) standard. The Ethernet Cables are designed to operate at a bandwidth up to 250 Mhz.
Cat 6 Pure Cable Specifications and technical details
- Category 6 UTP Solid cable Color: Cool Gray 10C
- Model- Brand : D Link : NCB-C6UGRYR-305
- Full box cable Length type : 305M ( 1000ft)
- Specific Heat-resistant : 75ohm
- Cat 6 dlink cable Conductor : 23 AWG(0.574 / 0.007mm) Bare Copper
- Insulation Material : HD-PE
Technical Details
Capacitance : 5.6nF/100m nominal
Impedance : 100Ω/15%,1-600MHz
Nominal Velocity of Propagation : 69%
Operating Temperature : -20℃-60℃(-4℉-140℉)
Storage Temperature : -20℃-80℃(-4℉-176℉) “
Certifications
“Certified for UL 444 (for Copper conductor)
UL 758/ Style 2835 (for Copper, CCA, CCAM & CCS conductors)
UL 1581 (Test standard)
TIA/EIA-568B.2 (Test standard).
FCC Part 68.500 or IEC 60603-7-4 (for Modular connector)
Application
Structured Cabling infrastructure, Gigabit and fast
speeds and “10BASE-T, 100BASE-TX Fast Ethernet, 1000BASE-T, 10GBASE-T (IEEE802.3)
100VG-AnyLAN (IEEE802.12)
550 MHz Broadband Video
Voice, T1, ISDN Cabling
155/ 622 Mbps ATM
For Power over Ethernet (POE)
Download Data Sheet Here >>>> D-Link Cat 6E UTP Data Sheet
Manufacturer Website >>>> D-Link CAT6E UTP CABLE 305M Roll
The cable is standard and A cost Effective solution in Kenya for creating a standard Gigabit 1000Base-T and 1000Base-Tx Compliant network Computer Networking, Internet Infrastructure and all other structured Cabling Works. And, other applications like Digital CCTV Cabling, IP Telephony Networking and Much More
- The Cable is tested to 250MHz frequency range and designed and standard packing will
- 305m easy pull out boxes.
- High pair-balance for excellent EMC (Electromagnetic Compatibility)
See our >>>>> Cable Pricing Guide
