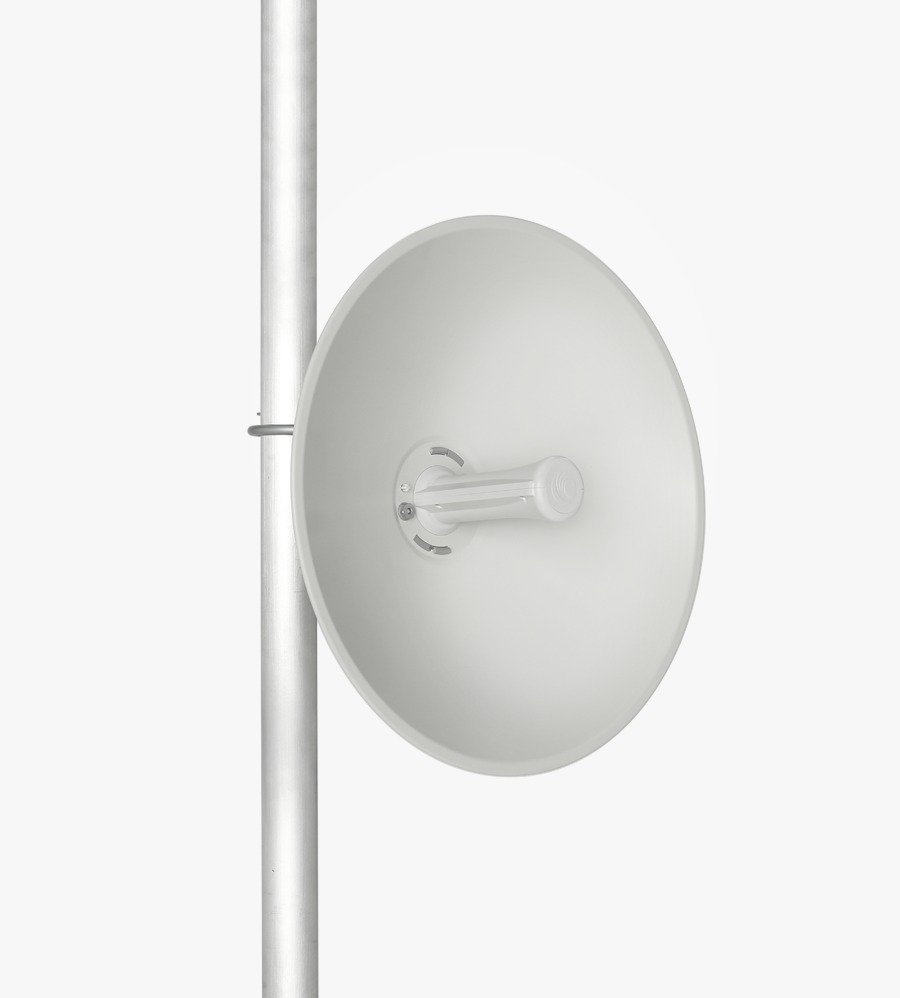

Cambium Networks Force 300-25L

Cambium Networks Force 300-25L is a high-performance subscriber module designed for long-distance point-to-point and point-to-multipoint wireless broadband applications. It combines a powerful 25 dBi dish antenna with advanced 802.11ac Wave 2 technology to deliver reliable connectivity and high capacity in challenging environments. With throughput of up to 600 Mbps and flexible channel bandwidth options, this antenna solution is ideal for ISPs, enterprises, and rural connectivity projects seeking cost-effective and stable wireless internet distribution.

Key Features

• High Capacity Performance: Supports up to 600 Mbps throughput for bandwidth-intensive applications.
• Extended Range Coverage: Integrated 25 dBi dish antenna enables long-distance wireless connectivity.
• Flexible Bandwidth Options: Operates with 20/40/80 MHz channel sizes for deployment versatility.
• Durable Outdoor Design: Built to withstand harsh environmental conditions, ensuring long-term reliability.
• Efficient Spectrum Use: MU-MIMO and beamforming enhance performance in congested spectrum environments.

Specifications

• Operating Frequency: 4.9 – 5.97 GHz
• Antenna Gain: 25 dBi (integrated dish antenna)
• Maximum Throughput: Up to 600 Mbps
• Channel Bandwidth: 20 MHz, 40 MHz, 80 MHz
• Interface: 1 x 10/100/1000 Mbps Ethernet port
• Wireless Standard: 802.11ac Wave 2
• Modulation: MCS0 – MCS9 up to 256 QAM
• Transmit Power: Up to 27 dBm (adjustable per regulatory limits)
• Polarization: Dual-slant (±45°)
• Mounting: Pole mount kit included
• Power Method: 30V passive PoE (adapter sold separately)
• Power Consumption: Up to 12 W
• Operating Temperature: -30°C to +60°C
• Dimensions: 47.5 x 29.5 x 14.5 cm
• Weight: 2.7 kg
