24/48 Port Cat 6a Patch Panels
KSh4,000.00 – KSh22,000.00 Ex.VAT

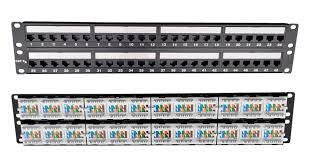

Cat6a UTP Unshielded RJ45 Ethernet Network Patch Panel 48-port /24 Port
The network patch panel is a passive mounted hardware assembly with multiple RJ45 ports to connect and manage input and output network cables/ patch cords that need to be connected to the networking hardware. It is usually attached to network data cabinets and server racks,
At, TDK Networking Products store we offer the best CAT6 Patch Panels prices in Kenya, Wo offer both wholesale and retail prices as well as installation services; Network Infrasture set-up and structured cabling solutions The network patch panels come in
All our network patch panels are sourced come with a warranty and meet the category 6 Patch Panels IEEE Standards UL Listed, feature a 110 Type Punch Down termination and include rack-mount screws.
Network Patch panels specifications and Features
- Category 6 performance
- Adaptable port designation
- Simple color-coded termination
- Numbered cable position
- Top-quality high-performance sockets
- Individually QA tested
- Width – 19” (483mm)
- Depth – 34mm
- Height – 1u (44mm)
- Fixing Centres – 467mm
- Material – Mild Steel Sheet CR4 to BSEN10130-1999 DC01 Plastic Inserts ABS Thermoplastic resin with grade UL94 V0 at 1.5mm flame retardancy
- Finish – Black powder coat to BS6496
- Socket Labels – 9 x 89mm (6-way blocks)
- IDC Colour Code – IDC color code to T568B
- Cable Guide – Two cable tie positions per 6 way block. Optional Cable Management Bar available
- Sockets – High performance unshielded vertical jacks
- IDC Blocks – Industry-standard IDC blocks
- PCB – Groups of 6 identical circuits on 1.6mm double-sided PTH board
- Conforms to – TIA-568-C.2 Category 6 specification
24 Port Network Patch panels
24 Port 1U Cat6 RJ45 UTP Patch Panels are designed for structured cabling solutions and network management. Cat6 RJ45 UTP Right Angle Patch Panel represents a cost-effective category 6 solutions with integral rear cable management.
The patch panels have been designed to meet or exceed the latest ISO and TIA requirements for category 6 compliance and these high-density patch panel combines the proven quality and performance of the existing range with enhanced aesthetics and labeling system.
Cat6 RJ45 UTP Patch Panel is designed to make installations as easy and fast as possible, the termination blocks are positioned at a right angle to the panel front. Built-in rear cable management.
Cage nuts and 1-96 self-adhesive label kit included Supplied with cable ties and instruction sheet Uses Excel Punchdown Tool BT Ref 2A.

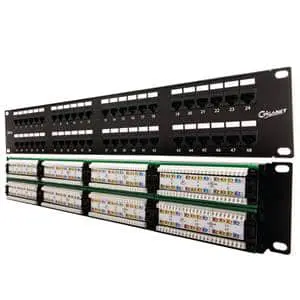

48 Port Cat6 19″ Rack Mount Patch Panels
1U 19″ 48 Port CAT-6e Patch Panel is rack-mountable in 19″ Data Cabinets and meets the TIA/EIA-568-B.2 Category 5E Channel Testing Performance requirements.
The 48 Port T568 A&B wiring for easy installation. Dual IDC connector can accept 22-26 AWG solid and stranded UTP cables and is compatible with 110 or Krone Tools. It is also backward compatible with Category 3 & 5
Designed for use with CAT6 Patch Panels
48 CAT6 Ports
Meets or Exceeds TIA/EIA 568-A and 568-B Standard
110 Style Punch Down
568-A/B Wiring Code
The patch panels have a clear wiring guide on the reverse side of the patch panel will make sure you never second guess if you punched down the patch panel correctly
Unshielded and Shielded patch panels
Cat6 Shielded Patch Panel
Cat6 shielded patch panel often consists of a metal panel and Cat6 snap-in shielded keystone jacks, which is perfect for high RFI/EMI environments where interference is a risk. It is often used together with shielded Cat6 cable which has better signal transmission performance. Such as cat6a cables
Cat6 Unshielded Patch Panel
Cat6 unshielded patch panel, on the other hand, is equipped with Cat6 snap-in unshielded keystone jacks. It is a more commonly used patch panel suited for most copper network systems.
Cat6 Patch Panel: Shielded vs Unshielded
Cat6 shielded patch panel is more costly than unshielded patch panels
The shielded Cat6 patch panels cost more in helping to overcome alien crosstalk. In addition, it also provides such benefits as increasing immunity from outside electronic interference.
Updated Pricelist of network patch-panels
EaseNet, Giganet, Siemon, ACP, Optronics, Aico, Dlink

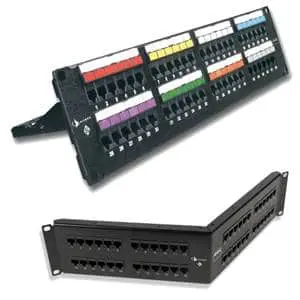

Our Products Ranges from Siemon Patchcord, Siemon patch panel, Siemon cat 6 and cat 7 cables, manager/organizer, Siemon Fibre Tray, Siemon fiber adapter, Siemon patch panel, etc For the best of Siemon products, call our Siemon shop in Nairobi or shop online and have your preferred product delivered to a pick-up location near you anywhere in Kenya.
Siemon Networking and Structured Products, We Supply and Install. Get best Siemon deals in Kenya
Tdk Offers a full range of patch panels. TDK Solutions Limited provides a reliable solution for any budget, from simple CAT5e patch panels to Fully loaded CAT6a 48 Keystone panels. TDK got you covered.
If you have a large project requirement coming up feel free to get in touch to see how we can support you.
