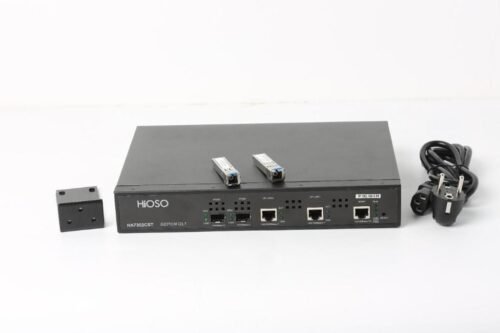

HIOSO HA7302CS EPON FTTH OLT 2 port with 2 SFP
HA7302CS is a standalone 2-PON OLT, working with HA7200 series ONU and ODN, to establish a passive optic network. It supports 2-PON and 64 ONUs access. It supports a 10～20km transmission distance at the base of high bandwidth, full line speed L2/L3 transition capacity. It supports SNMP management
HA7302CS is a standalone 2-PON OLT, working with HA7200 series ONU and ODN, to establish a passive optic network. It supports 2-PON, 64 ONUs access. It supports a 10～20km transmission distance at the base of high bandwidth, full line speed L2/L3 transition capacity. It supports SNMP management.
The above is the Description for HA7302CS 2 pon EPON OLT. If you want to know more about olt upon, epon olt, etc., you can contact us.
Parameter of this HA7302CS 2 pon EPON OLT
The following is about HA7302CS 2 pon EPON OLT related Parameter, I hope to help you better understand HA7302CS 2 pon EPON OLT .
| Parameter | Specifications |
| Operating wavelength | 1310（RX）/1490（TX） |
| Optical power | +0 ~ +7dBm |
| Receiving sensitivity | -27dBm |
| Max distance | 20km |
| Max splitter ratio | 1:32 |
| Capacity | 2 PON, standard: 64 ONUs maximum:128 ONUs |
| MAC | 8K |
| Uplink port | 2 10/100/1000 Ethernet RJ45 ports / 2 Gigabit SFP ports optional |
| PON port | 2 SC fiber ports |
| Control port | RJ45 console port, to debug the device |
| MTBF | 100,000 hours |
|
EPON traits
|
Support IEEE802.3ah |
| Support DBA with minimum1Kbps granularity adjustable | |
| Support 1Gbps up link and down symmetrical link bandwidth | |
| Support AES-128 encryption to each Logical Link Identifier | |
| Support powerful OAM function, implement telnet management, maintenance, and upgrade | |
| Support auto discovery and auto register of ONU (real-time operation) | |
| Protocols supported
|
Support IEEE802.3, IEEE802.3u, IEEE802.3ab |
| Support IEEE802.1Q VLAN | |
| Support IEEE 802.1P QoS | |
| Management
|
CLI and GUI, SNMP, WEB |
| Support DHCP Snooping | |
| Support Ipv4 address learning based at DHCP Snooping | |
| Support ARP Snooping, QoS etc |
