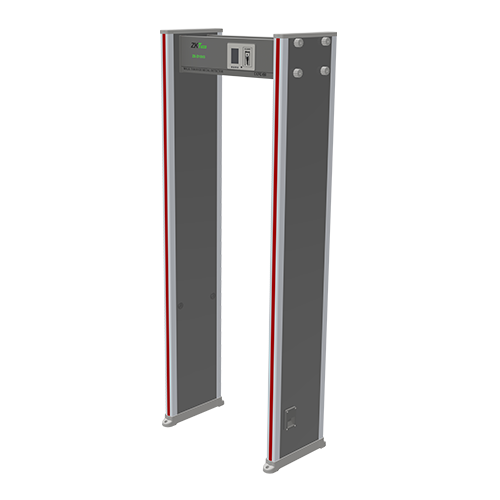

ZKTeco ZK-D2180 18-Zone Metal Detection

ZKTeco ZK-D2180 is a high-precision 18-zone walk-through metal detector designed for comprehensive security screening in public venues, commercial buildings, and critical infrastructure. Equipped with 256 adjustable sensitivity levels and advanced localization capability, this detector ensures accurate threat identification while minimizing false alarms. Its built-in 3.5-inch LCD display offers real-time monitoring and configuration, while dual visual and sound alarms alert operators instantly to potential breaches. With features like people and alarm counting, TCP/IP networking, remote control, mobile app integration, and compatibility with access control systems such as turnstiles, the ZK-D2180 provides a flexible and scalable solution for modern access control environments.

Product Features

18-Zone Detection for Precise Localization
Each of the 18 detection zones allows accurate identification of metal object location on the body, enhancing threat assessment efficiency.

256-Level Sensitivity Adjustment
Customizable sensitivity across a wide range allows fine-tuning based on the environment and target object size, reducing false positives.

3.5-Inch LCD Display Interface
The built-in display provides real-time system status, configuration options, and operational feedback for user-friendly control.

Dual Alarm Notifications
Combines visual LED indicators and 85dB audio alerts to ensure immediate awareness of detection events by security staff.

Real-Time People and Alarm Counting
Monitors foot traffic and keeps a record of detection events, useful for analysis and crowd management.

TCP/IP Network Support
Easily integrates into centralized security systems, enabling remote access, monitoring, and data logging over LAN.

Remote Control Operation
Authorized personnel can control the unit remotely—arming/disarming, adjusting settings, or reviewing data securely from a distance.

Turnstile and Access Control Integration
Can be linked with access gates and turnstiles to create a synchronized security checkpoint for controlled entry and exit.

Mobile App Compatibility
Monitor the device, receive real-time alerts, and manage settings via a dedicated smartphone or tablet app for added convenience.

Product Specifications

• Brand: ZKTeco
• Detection zones: 18 independent zones
• Sensitivity levels: 256 adjustable levels
• Display: 3.5-inch LCD screen
• Alarm method: Sound and LED indicator
• Alarm volume: 85dB
• People counting: Yes
• Alarm counting: Yes
• Network support: TCP/IP
• Remote control: Supported
• Mobile app: Compatible
• Integration: Supports access control and turnstile linkage
• Power supply: AC 100V–240V
• Working current: 1.5A
• Running power: 18W
• Operating temperature: -20°C to 55°C
• Humidity: <95% non-condensing
• Operation frequency: 5.7kHz to 9.6kHz
• Dimensions (L × W × H): 579 × 844 × 2226 mm
• Package dimensions: 660 × 282 × 2280 mm
• Package weight: 50kg
