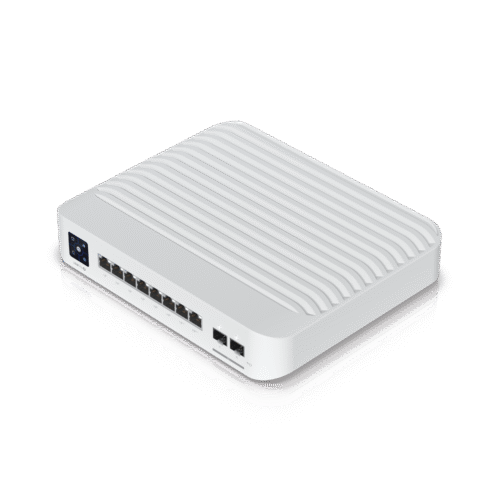

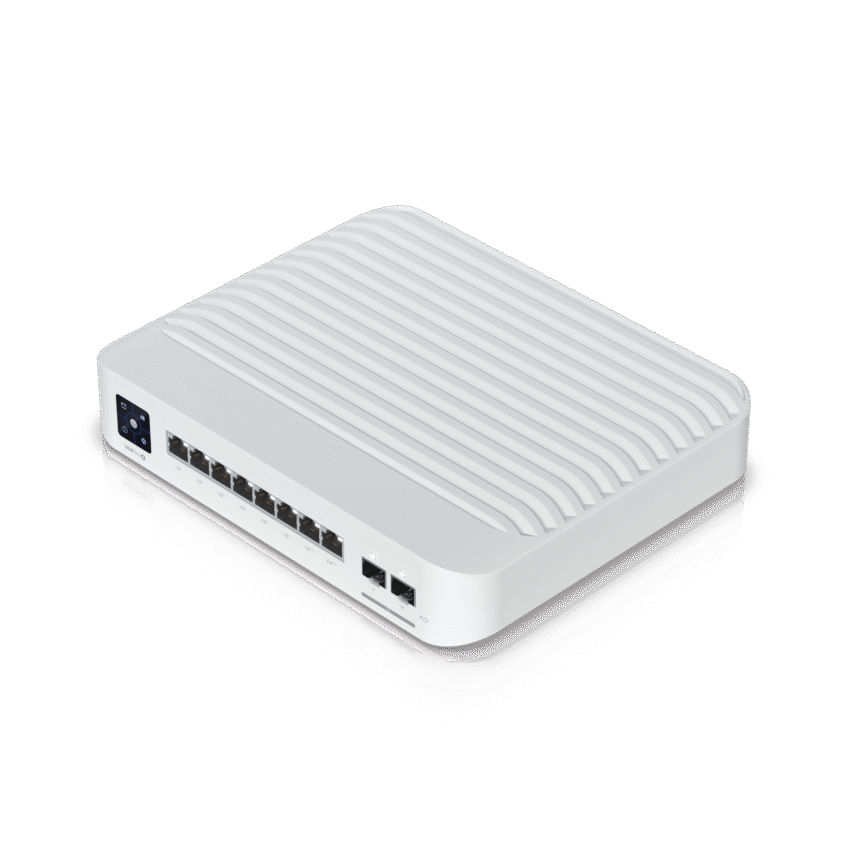

Ubiquiti USW-Pro-8-PoE UniFi 8-Port Gigabit PoE++ Switch with 10G SFP+ Uplink

Ubiquiti USW-Pro-8-PoE is a compact, high-performance Layer 2/L3 managed switch designed for small to medium-sized businesses, enterprises, and advanced home networks. Equipped with 8 Gigabit Ethernet ports (6 PoE+, 2 PoE++) and 2 10G SFP+ uplinks, this switch delivers robust connectivity, a 120W PoE budget, and advanced management features. With a 56 Gbps switching capacity and a 1.3″ touchscreen display, it powers UniFi access points, cameras, and VoIP phones while ensuring seamless network performance. Ideal for IT professionals and network administrators, the USW-Pro-8-PoE offers enterprise-grade performance in a durable, polycarbonate and metal enclosure.

Key Features

• 8 Gigabit Ethernet Ports: 6 PoE+ (32W) and 2 PoE++ (64W) ports to power high-demand devices like UniFi Wi-Fi 6 access points and IP cameras.
• 2 10G SFP+ Uplinks: Supports 10G/1G speeds for high-speed connections to switches, routers, or network storage.
• 120W PoE Budget: Powers multiple PoE devices, offering flexibility for expanding networks.
• Layer 2/L3 Capabilities: Includes inter-VLAN routing, static routing, DHCP server/relay, IGMP snooping, and 802.1X authentication for secure, efficient network management.
• High Performance: 56 Gbps switching capacity, 28 Gbps non-blocking throughput, and 42 Mpps forwarding rate for lag-free operation.
• Compact Design: Measures 200 x 248 x 44 mm (7.9 x 9.8 x 1.7″) and weighs 2.1 kg (4.6 lb), suitable for desktop or wall mounting.
• 1.3″ Touchscreen Display: Simplifies monitoring and configuration with real-time port and system status.
• UniFi Network Integration: Managed via UniFi Network Controller (version 7.5.176 or later) for centralized control.
• NDAA Compliant: Meets federal standards, ideal for government and enterprise deployments.
• Wide Operating Range: Functions in -5 to 45°C (23 to 113°F) and 10 to 90% noncondensing humidity.

Applications

• Enterprise Networks: Powers and connects PoE devices with high-speed uplinks for offices or campuses.
• Surveillance Systems: Supports IP cameras with PoE++ for reliable video feeds.
• Smart Homes: Builds robust home networks with seamless UniFi integration.
• Retail and Hospitality: Manages Wi-Fi access points, VoIP phones, and digital signage efficiently.

Specifications

Mechanical

• Dimensions: 200 x 248 x 44 mm (7.9 x 9.8 x 1.7″)
• Weight: 2.1 kg (4.6 lb)
• Enclosure Material: Polycarbonate, metal
• Mount Material: Polycarbonate
• Form Factor: Desktop or wall-mountable
• Supported Rack Depth: 400–1200 mm (15.7–47.2″)

Hardware

• Networking Interfaces:
  • 8 x GbE RJ45 ports (10/100/1000 Mbps)
  • 2 x 10G SFP+ ports (10G/1G)
• PoE Interfaces:
  • 6 x PoE/PoE+ (15.4W/32W, Pins 1, 2+; 3, 6-)
  • 2 x PoE++ (64W, Pair A 1, 2+; 3, 6-, Pair B 4, 5+; 7, 8-)
• Total PoE Availability: 120W
• Max Power Consumption: 30W (excluding PoE), 150W (including PoE)
• Power Method: Universal input, 100–240V AC, 50/60 Hz
• Power Supply: Internal AC/DC, 150W
• Supported Voltage Range: 100–240V AC
• PoE Voltage Range:
  • PoE: 44–57V
  • PoE+: 50–57V
  • PoE++: 50–57V
• LCM Display: 1.3″ touchscreen
• LEDs: RJ45 ports (link/activity)
• Button: Factory reset
• Heat Dissipation: 102.36 BTU/hr (excluding PoE)
• Certifications: CE, FCC, IC, Anatel
• NDAA Compliance: Yes

Performance

• Switching Capacity: 56 Gbps
• Non-Blocking Throughput: 28 Gbps
• Forwarding Rate: 42 Mpps
• Packet Buffer Size: 1.5 MB
• Supported VLANs: 1,000
• MAC Address Table Size: 16,000
• L3 Table Size:
  • ARP Entries: 6,000
  • IPv4 Routes: 512
• Access Lists:
  • IPv4: 128
  • MAC: 128

Layer 2 Features

• IGMP snooping
• STP/RSTP with priorities and port-level disable
• Port isolation
• Storm control
• Voice VLAN
• Port mirroring
• LACP port aggregation
• Multicast/broadcast rate limiting
• MAC address blocking
• Flow control
• 802.1X control
• Jumbo frames
• Proprietary loop protection
• DHCP snooping/guarding
• Egress rate limit
• LLDP-MED
• Port restricted by MAC
• Device isolation with ACLs

Layer 3 Features

• DHCP server for locally managed networks
• DHCP relay
• Inter-VLAN routing between networks on the same switch
• Static routing between local networks

Software

• Management Interface: Ethernet In-Band
• Application Requirements: UniFi Network Controller (version 7.5.176 or later)

Common FAQs

1. What devices can the USW-Pro-8-PoE power?
   It supports PoE (15.4W), PoE+ (32W), and PoE++ (64W) devices, including UniFi access points, IP cameras, and VoIP phones.
2. Can the switch be managed remotely?
   Yes, it integrates with the UniFi Network Controller (version 7.5.176 or later) for remote management and monitoring.
3. Is the USW-Pro-8-PoE rack-mountable?
   It is designed for desktop or wall mounting but supports rack depths of 400–1200 mm (15.7–47.2″) with compatible accessories.
4. Does it support Layer 3 routing?
   Yes, it offers inter-VLAN routing, static routing, and DHCP server/relay for advanced network configurations.
5. Is the switch NDAA compliant?
   Yes, it meets NDAA compliance standards, suitable for government and enterprise environments.

Transform your network with the Ubiquiti USW-Pro-8-PoE UniFi Switch. With powerful PoE++ ports, 10G SFP+ uplinks, and advanced Layer 2/L3 features, it’s the ideal choice for scalable, high-performance networking.
