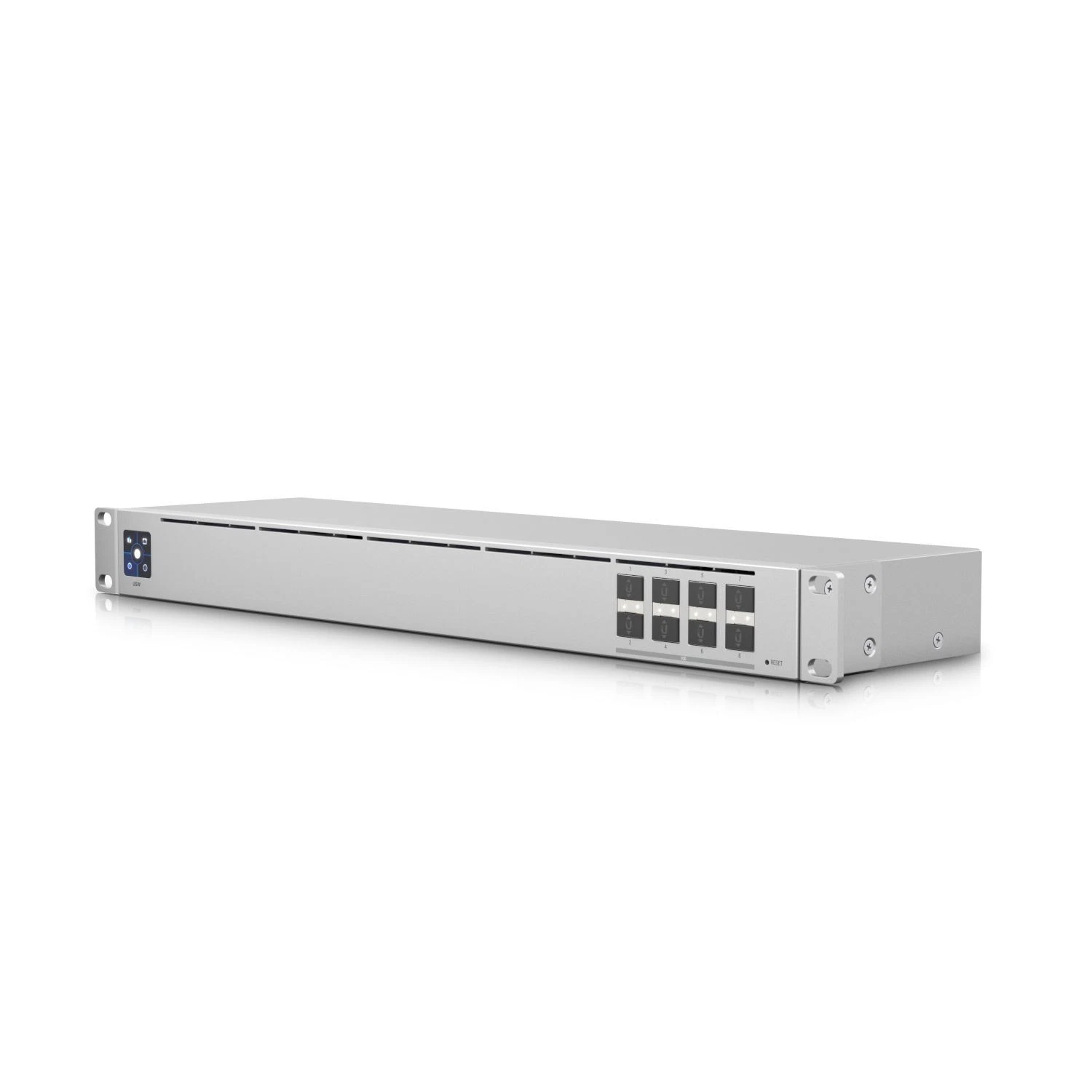

Ubiquiti UniFi Switch Aggregation (USW-Aggregation)

Ubiquiti UniFi Switch Aggregation (USW-Aggregation) is a fully managed Layer 2 switch designed to enhance your network’s switching capacity and performance.

With its (8) 10G SFP+ ports, this switch enables high-bandwidth aggregation links, making it ideal for demanding network environments.

Specifications

• Dimensions: 442.4 x 120 x 43.7 mm (17.42 x 4.72 x 1.72 inches)
• Weight: 2.65 kg (5.84 lb) without mount; 2.74 kg (6.04 lb) with mount
• Enclosure Material: SGCC Steel
• Maximum Power Consumption: 30W
• Power Method: Universal AC Input (100-240VAC, 50/60 Hz)
• Power Supply: AC/DC, Internal, 36W
• Management Interface: Ethernet In-Band
• Operation Mode: SMB Layer 2 Gigabit Ethernet Switch

Key Features

• (8) 10G SFP+ Ports: Supports high-speed fiber connectivity for aggregation links
• 160 Gbps Switching Capacity: Ensures robust performance for heavy data traffic
• Total Non-Blocking Throughput: 80 Gbps, providing efficient data handling
• Forwarding Rate: 119.04 Mpps for optimized packet processing
• 1.3″ LCM Color Touchscreen: Displays key system and connection insights for easy management
• Compact Design: With a depth of just 4.7 inches, it’s easy to mount in SOHO rack cabinets
• Fanless Operation: Provides silent performance, ideal for office environments
• Remote Management: Monitor and configure via the UniFi Network web application and mobile app

Common FAQs

• What type of ports does the USW-Aggregation have?
  The switch features (8) 10G SFP+ ports for high-speed fiber connections

• What is the maximum switching capacity of the USW-Aggregation?
  It has a switching capacity of 160 Gbps, making it suitable for high-bandwidth applications

• How do I manage the switch?
  The switch can be monitored and configured using the UniFi Network web application and mobile app

• Is this switch suitable for outdoor use?
  No, the USW-Aggregation is designed for indoor use only

• Can I use this switch without SFP+ modules?
  While the switch requires SFP+ modules for connectivity, you can use it as an aggregation switch for existing fiber networks

• What is the maximum power consumption of the switch?
  The maximum power consumption is 30W, making it energy-efficient for its performance level
