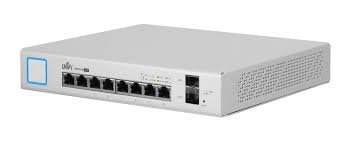

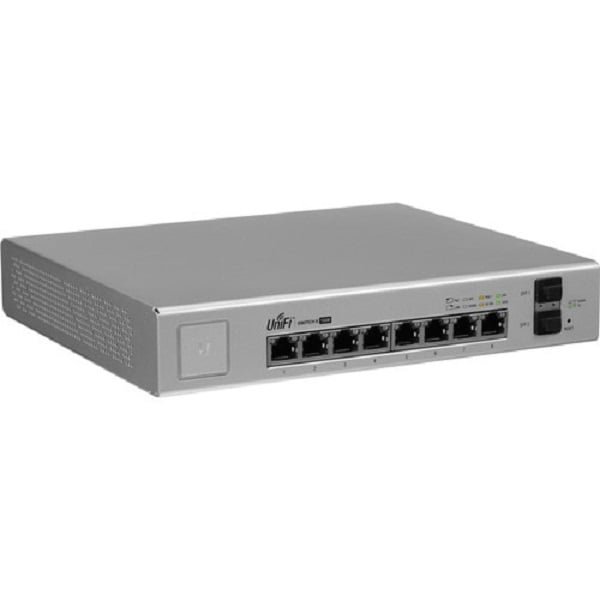

Ubiquiti Networks 8-Port UniFi Switch (US-8-150W)

The Ubiquiti Networks 8-Port UniFi Switch (US-8-150W) is a fully managed Layer 2 Gigabit PoE switch designed for small businesses, branch offices, retail stores, surveillance systems, and enterprise edge deployments. Featuring 8 Gigabit RJ45 ports, 2 Gigabit SFP uplink ports, and a 150W PoE budget, it delivers reliable wired connectivity while powering UniFi access points, IP cameras, VoIP phones, and other PoE-enabled devices.

Managed through the UniFi Network Controller, the US-8-150W provides centralized network management, advanced Layer 2 switching capabilities, VLAN configuration, and real-time monitoring, making it an ideal solution for compact yet powerful business networks.

Key Features

1. Eight Gigabit Ethernet Ports

The switch features 8 × 10/100/1000 Mbps Gigabit RJ45 ports, providing fast and reliable wired connectivity for computers, wireless access points, IP cameras, VoIP phones, printers, servers, and other Ethernet-enabled devices.

2. High-Power PoE Support

The US-8-150W provides:

• 8 × IEEE 802.3af/at PoE+ ports
• 24V Passive PoE support
• 150W total PoE budget

This enables the switch to power multiple PoE devices directly through Ethernet cables while supporting both standard PoE+ and legacy 24V passive PoE devices.

3. Dual Gigabit SFP Uplink Ports

The integrated 2 × 1G SFP ports provide fibre connectivity for:

• High-speed uplinks
• Switch-to-switch connections
• Fibre backbone expansion
• Long-distance network connectivity

4. Advanced Layer 2 Switching

The switch supports enterprise-grade networking features, including:

• VLAN support
• Link Aggregation (LACP)
• Spanning Tree Protocol (STP/RSTP)
• Quality of Service (QoS)
• IGMP Snooping
• DHCP Snooping
• Port Mirroring
• Jumbo Frame support
• Storm Control

These features help improve network performance, security, and traffic management.

5. Centralized UniFi Management

Using the UniFi Network Controller, administrators can:

• Configure switch settings
• Manage VLANs
• Monitor connected devices
• View network traffic
• Manage PoE output
• Update firmware
• Control multiple UniFi devices from a centralized dashboard

6. Flexible Installation Options

Its compact design supports:

• Desktop installation
• Wall mounting

This makes the switch ideal for offices, retail environments, communication cabinets, and surveillance installations where space is limited.

7. Reliable Gigabit Performance

With a 20 Gbps switching capacity and 10 Gbps non-blocking throughput, the US-8-150W delivers dependable performance for business applications, surveillance systems, and wireless network deployments.

Technical Specifications

Ideal Applications

Small and medium-sized businesses, retail stores, branch offices, schools, hotels, surveillance systems, wireless network deployments, communication cabinets, and managed IT environments.

When to Use the US-8-150W

Choose the Ubiquiti Networks 8-Port UniFi Switch (US-8-150W) when you need to:

• Power multiple PoE-enabled devices from a compact managed switch.
• Connect UniFi access points, IP cameras, and VoIP phones.
• Expand your network using fibre uplinks.
• Deploy a managed switch in locations where space is limited.
• Build a reliable business or surveillance network with centralized management.

Installation & Usage

Install the Switch

Place the switch on a desktop or mount it on a wall in a well-ventilated location. Connect the AC power cable before connecting network devices.

Connect Network Devices

Connect computers, servers, wireless access points, IP cameras, VoIP phones, and other Ethernet devices to the RJ45 ports. Use the SFP ports for fibre uplinks where required.

Configure the Switch

Adopt the switch using the UniFi Network Controller to configure VLANs, PoE settings, network policies, and firmware updates.

Monitor Network Performance

Use the UniFi dashboard to monitor connected devices, network traffic, PoE utilization, and switch health for efficient network administration.

What’s in the Box?

• 1 × Ubiquiti Networks 8-Port UniFi Switch (US-8-150W)
• AC Power Cable
• Wall Mount Brackets
• Mounting Hardware
• Quick Start Guide
