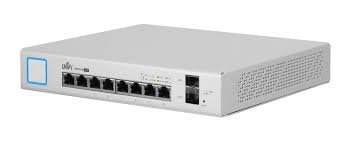

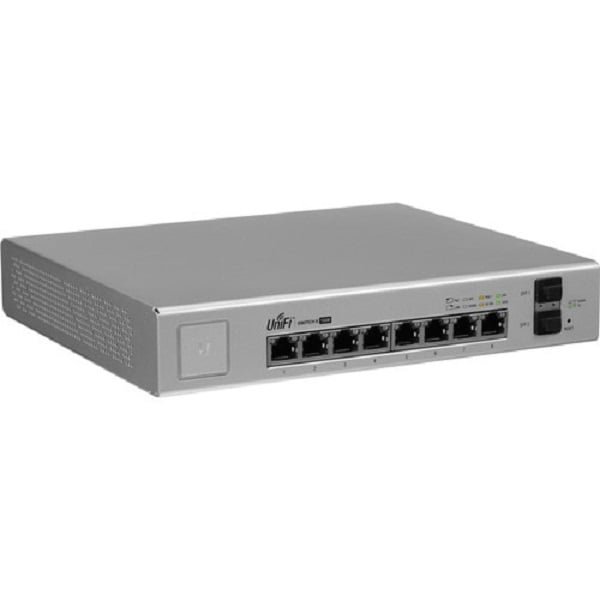

Ubiquiti Networks 8-Port UniFi Switch, Managed PoE+ Gigabit Switch with SFP, 150W (US-8-150W)

Ubiquiti Networks US-8-150W UniFi Switch is a fully managed 8-port PoE+ Gigabit switch designed for scalable enterprise networks. With (8) Gigabit RJ45 ports, flexible IEEE 802.3af/at PoE+ and 24V passive PoE support, and (2) Gigabit SFP ports for fiber uplinks, this switch delivers exceptional performance, intelligent switching, and a total PoE budget of 150W—making it ideal for powering UniFi access points, IP cameras, and VoIP phones.

Key Features

• (8) Gigabit Ethernet Ports with auto-sensing 802.3af/at PoE+ and 24V passive PoE, enabling seamless integration with a wide range of PoE-powered devices.
• (2) Gigabit SFP Ports for optical fiber uplinks, supporting high-speed network expansion up to 1 Gbps.
• 150W Total PoE Budget, supporting up to 30W per PoE+ port, ideal for high-performance and power-hungry devices.
• Switching Capacity of 20 Gbps and a non-blocking throughput of 10 Gbps, ensuring efficient data handling even under heavy traffic.
• Forwarding Rate: 14.88 million packets per second (Mpps).
• Managed through UniFi Controller, allowing centralized management, configuration, and real-time monitoring of all UniFi devices.
• Compact Desktop Design, perfect for installations where rack space is limited.

Technical Specifications

• Model: US-8-150W
• Ethernet Ports: 8 x Gigabit RJ45 (PoE+/24V Passive PoE)
• SFP Ports: 2 x 1G SFP
• Total PoE Budget: 150W
• Maximum Power Consumption (excluding PoE): 20W
• Switching Capacity: 20 Gbps
• Non-Blocking Throughput: 10 Gbps
• Forwarding Rate: 14.88 Mpps
• PoE Standards Supported: IEEE 802.3af/at, 24V Passive PoE
• Mounting: Desktop
• Management Software: UniFi Controller
• Operating Temperature: -5°C to 40°C (23°F to 104°F)
• Weight: 1.7 kg (3.75 lbs)

Common FAQs

What is the maximum PoE output per port?

• Each port can deliver up to 30W using IEEE 802.3at PoE+, or 24V passive PoE as configured.

Can I use this switch without connecting PoE devices?

• Yes. The US-8-150W functions as a standard Gigabit switch when PoE is not in use.

How is the switch managed?

• Managed via the UniFi Controller, providing centralized configuration, firmware updates, and monitoring.

Is it suitable for outdoor use?

• No, this switch is intended for indoor deployment. For outdoor use, explore Ubiquiti’s weatherproof switch models.

Which devices can I connect to this switch?

• Ideal for UniFi access points, IP security cameras, VoIP phones, and standard Ethernet network devices.

Does it support VLAN configuration?

• Yes, the US-8-150W supports VLANs, enabling you to segment your network for better control and security.
