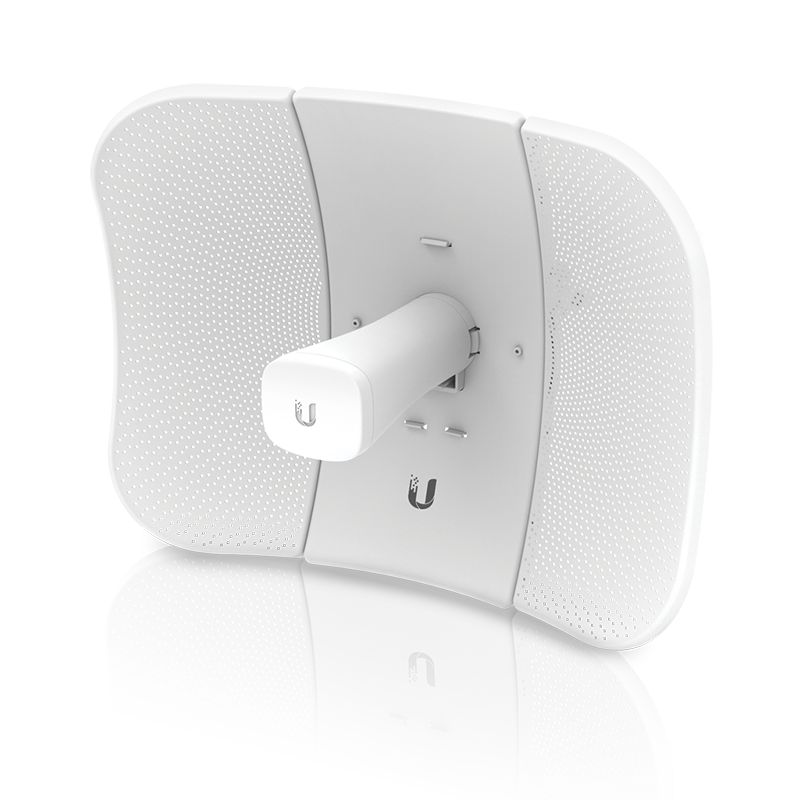

Ubiquiti airMAX LiteBeam Gen 2 5AC 5GHz 23dBi CPE – LBE-5AC-Gen2

Ubiquiti LiteBeam AC Gen 2 (LBE-5AC-GEN2) is designed for long-distance wireless connectivity, making it perfect for creating high-speed links in Point-to-Point (PtP) or Point-to-MultiPoint (PtMP) applications. This 5GHz CPE features a 23 dBi antenna for strong, reliable links over considerable distances, even in environments with substantial RF interference.

With an airMAX ac chipset built into the device, the LiteBeam Gen 2 supports the airMAX ac protocol, ensuring optimized throughput and low latency. Additionally, it provides automatic channel selection and flexible transmit power control, making it easy to adapt to varying network environments.

The UISP mobile app enables easy management, allowing users to monitor and configure the device directly from their mobile devices. The adjustable antenna with flexibility in three axes ensures precise alignment for optimal performance. Whether you’re setting up a network for a remote site or expanding coverage, the LiteBeam Gen 2 offers the flexibility and range to get the job done.

Key Features

• High-Performance Throughput: airMAX ac protocol delivers reliable, high-speed connectivity for both PtP and PtMP applications.
• Long-Range Connectivity: Supports stable wireless links over significant distances, making it ideal for remote or wide-area networks.
• Improved Noise Immunity: Features a tighter beamwidth to direct RF energy in one direction, improving noise rejection and performance in crowded RF environments.
• Adjustment Flexibility: Offers three-axis adjustable mounting to ensure precise alignment for maximum signal strength.
• Dedicated Management Wi-Fi: Simplifies setup and monitoring via the UISP mobile app.
• Advanced Security: Supports WPA2 encryption for secure wireless connections.
• Multiple Channel Width Options: Selectable channel widths ranging from 10 MHz to 80 MHz, providing flexibility to adapt to different environments.

Technical Specifications

• Model: LBE-5AC-GEN2
• Frequency Band: 5 GHz
• Antenna Gain: 23 dBi
• Protocol Support: airMAX ac
• Channel Widths (PtP): 10/20/30/40/50/60/80 MHz
• Channel Widths (PtMP): 10/20/30/40 MHz
• Transmit Power Control: Automatic/Manual
• Security: WPA2 encryption
• Management: UISP mobile app (dedicated Wi-Fi for management)
• Mounting Flexibility: 3-axis adjustable mounting
• Operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Wind Survivability: 200 km/h (125 mph)
• Power Consumption: Max 7W
• Power Supply: 24V PoE
• Dimensions: 315 x 150 x 60 mm

Common FAQs

1. What is the primary use of the LiteBeam Gen 2?
   The LiteBeam Gen 2 is designed for Point-to-Point (PtP) and Point-to-MultiPoint (PtMP) wireless networking, delivering high-performance connectivity for long-range links.
2. How does the LiteBeam Gen 2 handle noise in crowded RF environments?
   It features a tighter beamwidth that improves noise immunity, effectively reducing interference from nearby RF signals.
3. Can I adjust the antenna orientation?
   Yes, the LiteBeam Gen 2 offers three-axis adjustable mounting, allowing for precise alignment and optimized signal strength.
4. What security features does the LiteBeam Gen 2 include?
   The device supports the strongest WPA2 encryption to ensure secure connections and protect your network.
5. How is the LiteBeam Gen 2 managed?
   You can manage the device via the UISP mobile app, which simplifies setup, monitoring, and maintenance directly from your smartphone or tablet.
