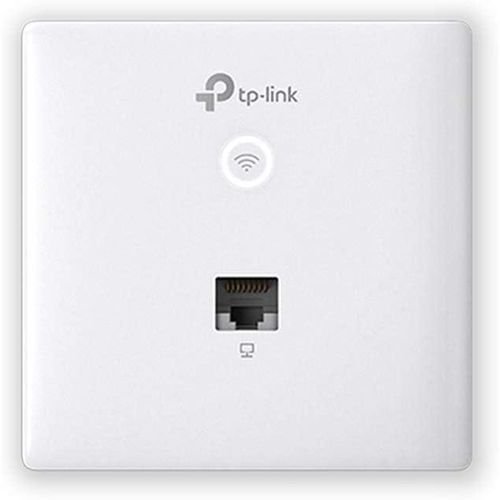

TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point – TL-EAP230-WALL

TP-Link Omada EAP230-WALL | AC1200 MU-MIMO Gigabit Wall-Plate Access Point is a sleek, high-performance wireless access point tailored for in-room deployment in hospitality, dormitories, or apartment networks. Delivering dual-band Wi-Fi speeds up to 1200 Mbps and 802.3af PoE support, it enables a clean, high-speed network connection while blending neatly into standard wall outlets.

Key Features

• Dual-Band AC1200 Wi-Fi: Achieves 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz for smooth HD streaming and fast browsing.
• Discreet Wall-Plate Design: Compact form factor fits into standard EU/US electrical wall boxes, perfect for hotels and residential spaces.
• Multi-Gigabit Wired Access: 1 uplink Gigabit Ethernet port (PoE) and 3 LAN ports for wired device connections like phones or IPTV.
• MU-MIMO Technology: Serves multiple devices simultaneously for greater efficiency and reduced lag.
• Centralized Omada SDN Management: Easily manage, monitor, and scale your network through Omada Controller or Omada Cloud.
• Seamless Roaming: Supports fast roaming and mesh features with other Omada devices for uninterrupted connectivity.
• Secure Guest Access: Captive portal authentication with VLAN support for isolated networks.

Specifications

• Model: TL-EAP230-WALL
• Wireless Standards: IEEE 802.11ac/n/a (5 GHz), IEEE 802.11n/b/g (2.4 GHz)
• Wi-Fi Speed:
  • 5 GHz: 867 Mbps
  • 2.4 GHz: 300 Mbps
  • Total Combined: AC1200
• Ports:
  • 1× Gigabit Uplink (PoE IN)
  • 3× Gigabit LAN Ports (for device bridging)
• PoE Standard: IEEE 802.3af (Power over Ethernet)
• Antennas: 2× Internal
• Mounting: Fits standard EU/US wall junction boxes
• Power Consumption: ≤7.1W
• Security:
  • WPA/WPA2-Enterprise
  • WPA-PSK/WPA2-PSK
  • MAC Filtering
  • Access Control
  • VLAN Tagging
• Management:
  • Omada SDN Controller
  • Web UI
  • SNMP v1/v2c
  • Omada App
• Dimensions: 143 × 86 × 20 mm
• Operating Temperature: 0°C ~ 40°C

Common FAQs

• Is this suitable for hotels or campus housing?
  Yes, the EAP230-WALL is designed specifically for in-room Wi-Fi in hotels, dorms, and apartment setups.
• Does it support wired connections?
  Yes, it features three Gigabit LAN ports for IPTV, VoIP, and other wired devices.
• Can it be cloud-managed?
  Yes, it integrates with Omada Cloud via the Omada Controller or app.
• Does it require a separate power adapter?
  No, it is powered via PoE (802.3af), simplifying installation.

Shop for the Latest TP-Link Access Points in Kenya at TDK Solutions — your trusted TP-Link Networking Shop in Kenya for reliable enterprise Wi-Fi gear, expert support, competitive pricing, and fast delivery. Optimize your in-room connectivity with the Omada EAP230-WALL today!
