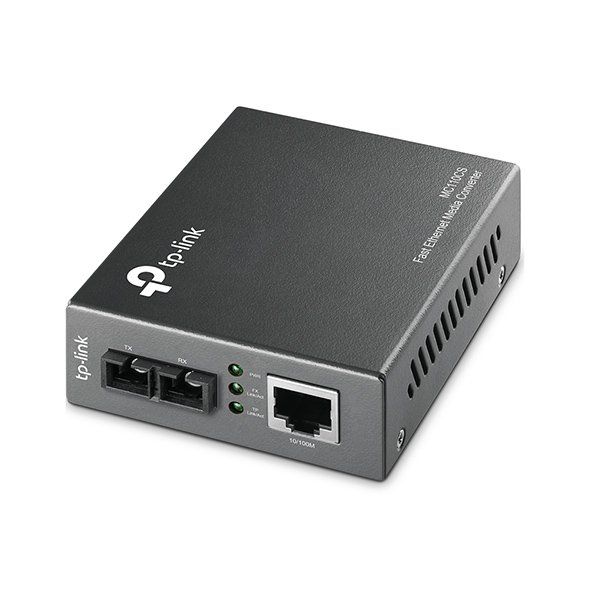

Tp-link MC110CS 10/100Mbps Single-Mode Media Converter

TP-Link MC110CS 10/100Mbps Single-Mode Media Converter is designed to extend Ethernet connections over long distances with high performance and reliability. Complying with IEEE 802.3u 10/100Base-TX and 100Base-FX standards, this converter provides seamless integration between copper and fiber networks. With the ability to extend fiber transmission up to 20km, it is ideal for businesses, enterprises, and ISPs looking for stable and cost-effective network expansion.

Features

• Complies with IEEE 802.3u 10/100Base-TX and 100Base-FX standards
• Extends fiber connectivity up to 20km for long-distance networking
• Auto-negotiation of 10/100Mbps and auto MDI/MDIX for TX port
• Supports Half-Duplex and Full-Duplex transfer modes for flexible configuration
• Easy-view LED indicators for monitoring network activity and link status
• Compact, lightweight design with external power supply
• Low power consumption, maximum 1.52 W for energy efficiency

Specifications

• Model: MC110CS
• Brand: TP-Link
• Standards: IEEE 802.3u 10/100Base-TX, 100Base-FX
• Fiber Type: Single-Mode, SC connector
• Fiber Transmission Distance: Up to 20 km
• Duplex Mode: Supports Half-Duplex and Full-Duplex (configurable)
• Power Consumption: Max 1.52 W
• Dimensions: 7.3 × 9.45 × 2.7 cm
• Weight: 160 g
• Color: Black
• LED Indicators: Power, FX Link/Act, TX Link/Act, Full Duplex, 100 Mbps
• Included Components: Media Converter MC110CS, Power Adapter, Installation Guide

Common FAQs

1. What is the maximum fiber transmission distance supported by the TP-Link MC110CS?
   The MC110CS supports single-mode fiber connections up to 20 km.
2. Does this media converter support both Half-Duplex and Full-Duplex modes?
   Yes, it provides switch configuration for Half-Duplex and Full-Duplex transfer modes for the FX port.
3. Can I use the MC110CS with any single-mode fiber cable?
   Yes, it is compatible with standard single-mode SC fiber connectors.
4. Is the TP-Link MC110CS plug-and-play?
   Yes, it supports auto-negotiation and auto MDI/MDIX for the TX port, making installation simple without advanced configuration.
5. What type of power supply does the MC110CS use?
   It comes with an external power adapter included in the package.
6. Are LED indicators available for network monitoring?
   Yes, the converter includes LED indicators for Power, FX Link/Act, TX Link/Act, Full Duplex, and 100 Mbps.

Upgrade your network with the TP-Link MC110CS 10/100Mbps Single-Mode Media Converter and enjoy seamless, long-distance fiber connectivity up to 20 km. Order now and ensure your business network is fast, reliable, and ready for the future.
