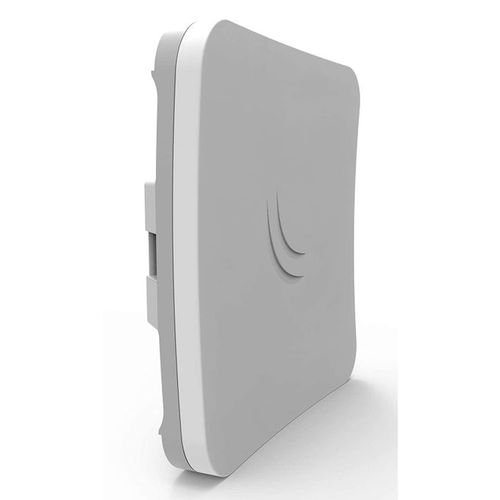

MikroTik SXTsq 5 ac 16dBi, 5GHz Integrated CPE/Backbone – RBSXTSQG-5acD

MikroTik SXTsq 5 ac | 16dBi 5GHz Integrated CPE/Backbone – RBSXTSQG-5acD
The MikroTik SXTsq 5 ac is a compact, outdoor wireless device designed for high-performance point-to-point links and CPE deployments. With a powerful 16dBi integrated antenna, 802.11ac dual-chain Wi-Fi, and Gigabit Ethernet, this unit delivers fast and reliable 5GHz wireless connectivity for ISPs and business networks alike.

Whether you need to establish a high-speed wireless bridge between buildings or provide a customer-premises equipment (CPE) for your wireless network, the SXTsq 5 ac is a robust, weatherproof solution that’s easy to mount and highly efficient.

Key Features

• 5GHz Dual-Chain 802.11ac: Supports the latest high-speed 802.11ac standard for improved throughput and stability in demanding wireless environments.
• 16dBi Integrated Antenna: High-gain directional antenna for long-range point-to-point or point-to-multipoint applications.
• Compact and Weatherproof Design: Small form factor with a rugged enclosure that withstands outdoor elements; mounts easily on poles and railings.
• Gigabit Ethernet Port: Ensures full-speed data transfer with support for high-throughput networking.
• RouterOS Level 3: Powerful operating system with extensive features for routing, bridging, NAT, VPN, firewall, bandwidth control, and more.
• Passive PoE Support: Simplified installation with power and data over a single Ethernet cable.

Specifications

• Product Code: RBSXTSQG-5acD
• Architecture: MIPSBE
• CPU: QCA9557, 1 core @ 720 MHz
• RAM: 256 MB
• Storage: 16 MB Flash
• Operating System: RouterOS (License Level 3)
• Wireless Band: 5GHz (802.11a/n/ac, Dual Chain)
• Antenna Gain: 16 dBi
• Ethernet: 1 × 10/100/1000 Mbps LAN
• PoE Input: 10 – 28 V Passive PoE
• Max Power Consumption: ~8W
• Mounting Options: Pole mount with multiple hose clamp positions
• Dimensions: 129 × 129 × 34 mm
• Weight: 295 g
• Operating Temperature: -40°C to +70°C
• Included Accessories: PoE injector, 24V power adapter, mounting kit

Common FAQs

Is the SXTsq 5 ac suitable for long-distance links?
Yes, the integrated 16dBi directional antenna makes it ideal for point-to-point links across several kilometers.

Can it be powered via PoE?
Yes, it supports passive PoE input (10–28V) and comes with a PoE injector in the box.

What is the difference between SXTsq 5 ac and SXT 5 ac?
The SXTsq 5 ac has a more compact design and is more cost-effective, while offering similar performance with slightly lower antenna gain.

Does it support bridging and routing modes?
Yes, with RouterOS L3 license, it supports advanced routing, bridging, firewall, and wireless configurations.
