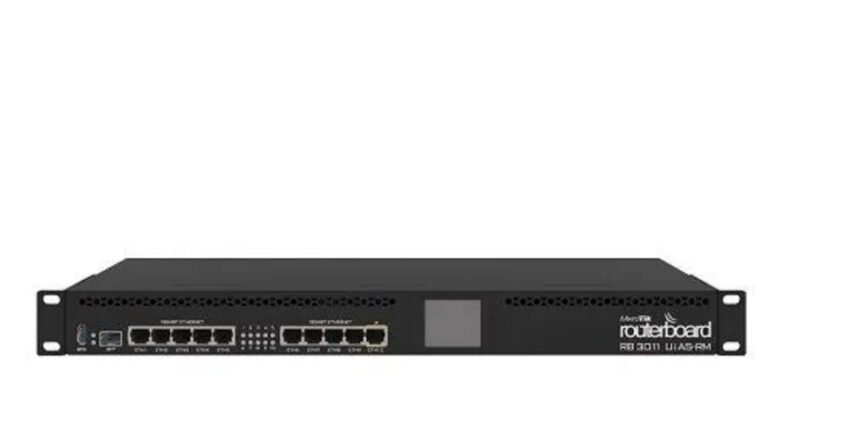

MikroTik RB3011UIAS-RM Rackmount Gigabit Router

MikroTik RB3011UiAS-RM is a high-performance, multi-port rackmount router designed for enterprise networks, service providers, and modern office environments. It is MikroTik’s first router with an ARM-based CPU, offering superior performance over previous models. This versatile device features 10 Gigabit Ethernet ports divided into two switch groups, an SFP cage for fiber connectivity, and a USB 3.0 port for external storage or 3G/4G modem use.

The router includes a 1U rackmount enclosure, a touchscreen LCD panel for local monitoring, a serial console port, and PoE output functionality on the last Ethernet port. It’s the ideal solution for networks demanding speed, scalability, and expandability.

Key Features

• High-Performance ARM CPU: Equipped with a 1.4GHz dual-core IPQ-8064 ARM processor for enhanced processing speed and throughput.
• 10 Gigabit Ethernet Ports: Delivers fast connectivity through 10 x 10/100/1000 Mbps Ethernet ports, divided into two hardware switch groups.
• SFP Cage for Fiber Uplink: Supports fiber connections via the integrated SFP port for high-speed uplinks and redundancy.
• SuperSpeed USB 3.0 Port: Includes a USB 3.0 Type-A port for attaching external drives or cellular modems.
• Touchscreen LCD Panel: Provides real-time system monitoring and basic configuration options directly on the device.
• PoE Output on Port 10: Features Passive PoE out on Ether10, supporting up to 600 mA to power compatible devices.
• Dual Power Inputs: Supports both DC jack and Passive PoE-in (10–30V) for flexible and redundant power options.
• Rackmount Design: Comes with rack ears and fits standard 1U rack installations for professional deployments.
• Passive Cooling: Operates silently with no fans, ideal for quiet environments.

Specifications

• Product Code: RB3011UiAS-RM
• CPU Architecture: ARM 32-bit
• CPU Model: IPQ-8064
• CPU Frequency: 1.4 GHz
• CPU Cores: 2
• RAM: 1 GB
• Storage: 128 MB NAND
• RouterOS License: Level 5
• Operating System: RouterOS v7
• Ethernet Ports: 10 x Gigabit Ethernet
• SFP Ports: 1
• USB Port: USB 3.0 Type-A (with USB power reset)
• Max USB Current: 1 A
• PoE Output Port: Ether10 (Passive PoE, up to 600 mA)
• DC Inputs: 2 (DC jack and PoE-in)
• Input Voltage Range: 10–30 V
• Max Power Consumption: 30 W
• Cooling: Passive
• MTBF: ~200,000 hours at 25°C
• Operating Temperature: -20°C to +70°C
• Dimensions: 443 x 92 x 44 mm
• Included Accessories:
  • 24V 1.2A power adapter
  • K-19 fastening set
  • Rack ears (black)

Common FAQs

Is the RB3011 suitable for enterprise-grade deployments?
Yes. Its ARM architecture, Gigabit ports, and SFP support make it ideal for demanding network environments.

Can it be mounted in a rack?
Yes, the unit includes rack ears and fits a standard 1U rack space.

Does it support fiber connections?
Yes, through the built-in SFP cage.

Can it power another device like an AP or camera?
Yes, Ether10 provides Passive PoE output up to 600 mA.

What license level is included?
The router includes RouterOS Level 5, supporting advanced firewall, VPN, routing protocols, and more.

Shop the Latest MikroTik Routers in Kenya at TDK Solutions — your trusted MikroTik Networking shop in kenya for genuine multi-port routers, competitive prices, expert advice, and fast delivery. Upgrade to the RB3011UiAS-RM and experience reliable, high-speed networking tailored to your business needs!
