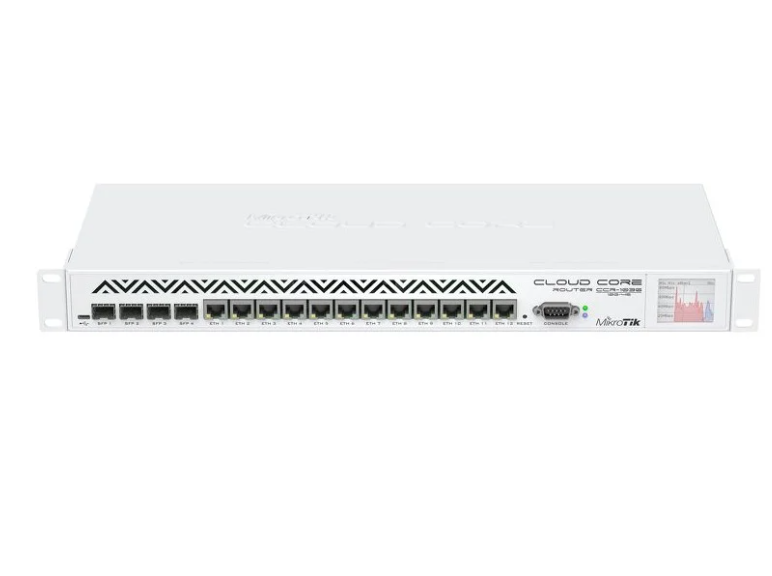

MikroTik CCR1036-12G-4S-EM Cloud Core Router

MikroTik CCR1036-12G-4S-EM Cloud Core Router is a carrier-grade, flagship router designed for enterprises and ISPs that demand unparalleled performance. Powered by a 36-core Tilera CPU, it delivers industry-leading throughput of up to 24 million packets per second or 16Gbps full wire speed. Equipped with 12 Gigabit Ethernet ports, 4 SFP ports, a USB port, and serial console, this router is built for scalability and reliability.

Running on RouterOS v6 (64-bit), the CCR1036-12G-4S-EM provides advanced routing, firewall, VPN, load balancing, MPLS, hotspot, and monitoring features, making it an all-in-one solution for complex networking environments. Its 1U rackmount case and touchscreen display for real-time status and configuration ensure convenience for data centers, ISPs, and enterprise networks.

Features

• High-Performance CPU: 36-core Tilera processor, 1.2GHz frequency.
• Massive Throughput: Up to 24 million packets per second or 16Gbps full wire speed.
• Enterprise-Grade RAM: Comes with 16GB RAM, with expandable capacity (no limit in RouterOS).
• Versatile Interfaces: 12 × Gigabit Ethernet ports, 4 × SFP ports, 1 × USB, and serial console.
• Touchscreen Display: Monitors traffic, status, and basic configurations.
• Advanced Routing OS: RouterOS v6 (64-bit) with enterprise features including firewall, MPLS, VPN, QoS, and load balancing.
• Rackmount Ready: 1U case design for seamless data center integration.
• Unmatched Reliability: Carrier-grade performance for ISPs, enterprises, and mission-critical environments.

Specifications

• Product Code: CCR1036-12G-4S-EM
• Brand: MikroTik
• CPU: 36-core Tilera CPU, 1.2GHz
• RAM: 16GB installed (expandable, no memory limit in RouterOS)
• Interfaces:
  • 12 × Gigabit Ethernet ports
  • 4 × SFP ports
  • 1 × USB port
  • 1 × Serial console
• Operating System: RouterOS v6 (64-bit)
• Case Type: 1U rackmount
• Dimensions: 355 × 145 × 44 mm
• Performance: 24M packets per second / 16Gbps throughput
• Included: Power supply, rackmount case

Application Areas

• ISPs & Data Centers: High-speed backbone and customer routing.
• Enterprises: Secure, high-performance routing for large networks.
• Carriers & Telecoms: Carrier-grade throughput with advanced QoS and MPLS support.
• Network Operators: VPN, hotspot, and load balancing for large-scale users.
• Mission-Critical Networks: Reliable uptime for banking, education, and government.

Common FAQs

What is the maximum throughput of the MikroTik CCR1036-12G-4S-EM?
It can process up to 24 million packets per second or 16Gbps wire speed.

How much memory does it support?
It comes with 16GB RAM by default, with no memory limit in RouterOS.

What interfaces are available?
It includes 12 Gigabit Ethernet ports, 4 SFP ports, 1 USB port, and a serial console.

Can it be rack-mounted?
Yes, it comes in a 1U rackmount case for easy installation in server racks.

Does it have a user interface for monitoring?
Yes, it has a color touchscreen display for real-time monitoring and simple configurations.

What advanced features are supported?
It supports dynamic routing, MPLS, VPN, QoS, hotspot, firewall, load balancing, and real-time monitoring via RouterOS.
