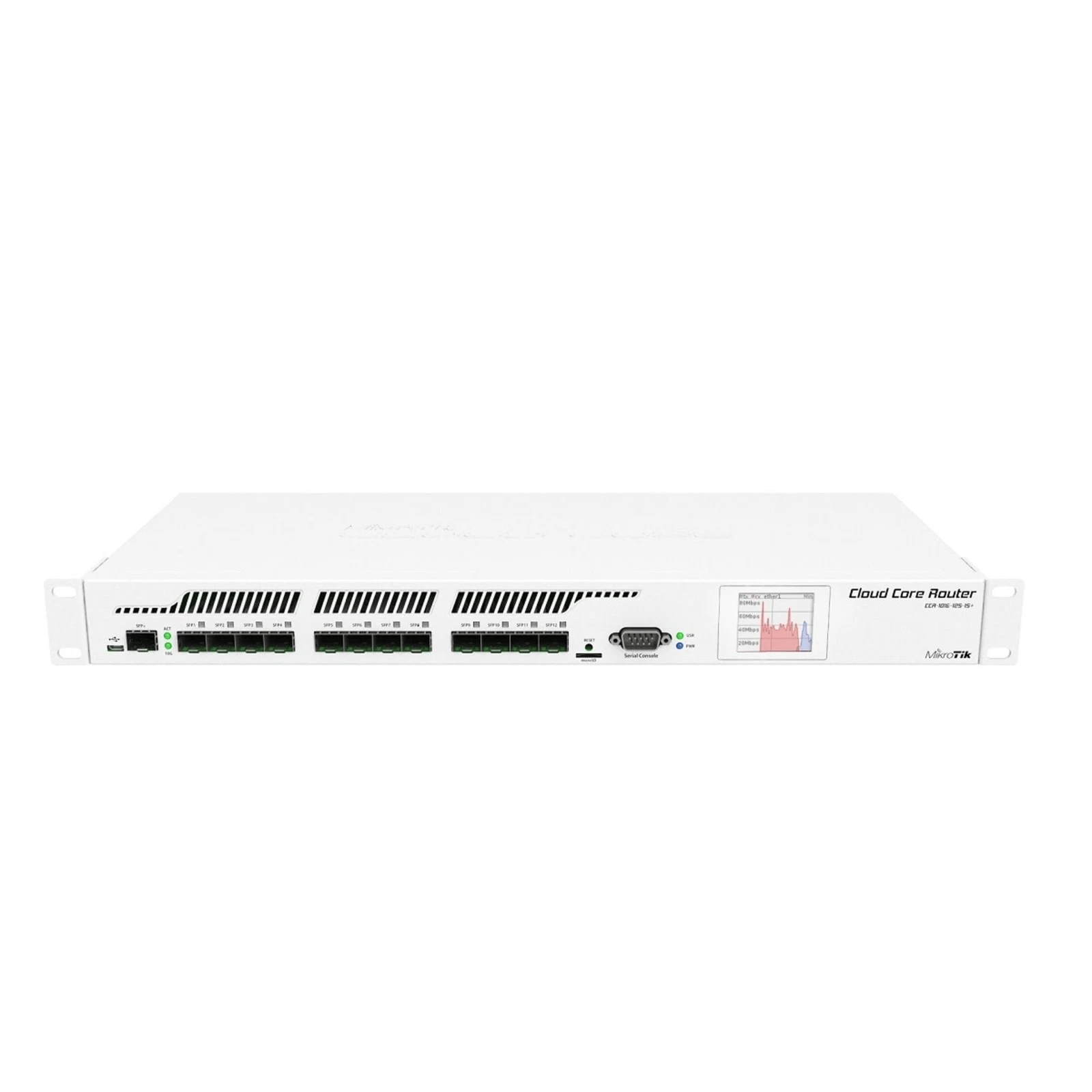

MikroTik CCR1016-12S-1S+ Cloud Core Router | 1U Rackmount, 12×SFP Cage

The MikroTik CCR1016-12S-1S+ Cloud Core Router is a high-performance networking solution designed for enterprises, data centers, and ISPs that require powerful routing capabilities. Built with a 16-core Tilera CPU and advanced architecture, its one of the latest networking routers in Kenya that delivers exceptional speed and efficiency for demanding network environments.

Housed in a compact 1U rackmount chassis, the CCR1016-12S-1S+ comes with twelve SFP ports and one SFP+ port, offering flexibility for fiber connectivity, scalability, and high-bandwidth applications. With hardware-based acceleration and RouterOS, it ensures fast throughput, secure connections, and advanced routing features.

Key Features

• High-performance CPU – Powered by a 16-core Tilera processor running at 1.2 GHz for efficient packet processing.
• Multiple SFP interfaces – Equipped with 12× SFP cages and 1× SFP+ cage for 10G connectivity.
• Compact rackmount design – 1U rackmount enclosure suitable for professional setups and server racks.
• Carrier-grade performance – Ideal for ISPs, enterprises, and data centers handling large volumes of traffic.
• Advanced RouterOS features – Supports dynamic routing, firewall, MPLS, VPN, hotspot, and bandwidth management.
• High throughput – Capable of handling millions of packets per second with low latency.
• Redundant power supply support – Ensures reliability and uninterrupted operation.

Specifications

• Product Code: CCR1016-12S-1S+
• CPU: Tilera Tile-Gx16, 16 cores, 1.2 GHz
• Memory (RAM): 2 GB
• Storage: 512 MB NAND
• Ports:
  • 12× SFP (1.25G) ports
  • 1× SFP+ (10G) port
  • 1× Gigabit Ethernet (management)
  • Serial console port
• Performance: Up to 17.8 Mpps for 64-byte packets
• Throughput: Up to 12 Gbps
• Power Supply: Dual redundant power supplies supported (100–240V AC)
• Form Factor: 1U rackmount
• Operating System: RouterOS Level 6 license
• Dimensions: 443 × 193 × 44 mm
• Weight: Approx. 3.2 kg
