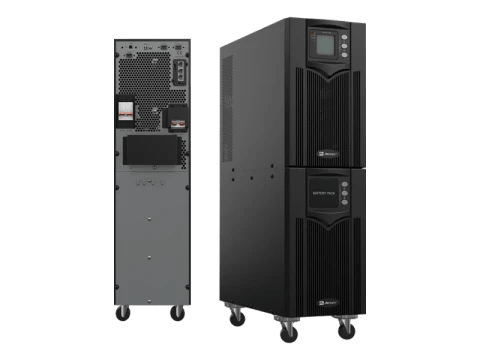

Mercury MP Pro 6k S Online UPS, 1.0PF, 6KVA/6KW, 1/1 Phase, ±12 0VDC (20 x 9AH/12V Battery), input/output terminal, RS232 & USB communication

Mercury MP Pro 6k S Online UPS is a high-performance 6KVA/6KW UPS power backup system engineered for mission-critical IT and industrial environments. Featuring true double-conversion online technology, this UPS delivers pure sine wave output, zero transfer time, and consistent voltage regulation, making it ideal for sensitive servers, telecom systems, medical equipment, and enterprise networks.

With a 1.0 Power Factor, the Mercury MP Pro 6k S provides full 6000W output capacity, ensuring maximum efficiency and optimal utilization of power.

Key Features

6KVA/6KW High-Capacity Output
Provides robust UPS backup for high-demand devices including servers, data centers, and industrial control systems.

True Online Double-Conversion Technology
Guarantees uninterrupted operation with 0ms transfer time, isolating connected devices from power fluctuations and disturbances.

1.0 Power Factor
Delivers 100% of the rated capacity (6000W) for more usable power compared to traditional UPS units.

Wide Input Voltage Range (160V – 280V AC)
Ensures stable operation in areas with unstable power supply without frequently switching to battery.

Pure Sine Wave Output
Delivers clean, stable power suitable for sensitive electronics, networking hardware, and medical devices.

Advanced Battery System
Configured with 192VDC (20 × 12V 9Ah sealed lead-acid batteries) for extended runtime and long-lasting performance.

High Efficiency

• 90% efficiency in AC-AC mode
• 85% efficiency in DC-AC mode
  Minimizes energy waste and reduces operating costs.

Seamless Transfer Time

• 0 ms in online mode
• <4 ms in ECO mode

Smart Monitoring & Connectivity
Comes with RS232 and USB communication ports for real-time UPS monitoring, control, and automated shutdown.

Terminal Input/Output Design
Equipped with secure input/output terminals for safe and professional wiring integration.

Maintenance-Free Batteries
Sealed lead-acid design ensures durability, safety, and minimal maintenance requirements.

Technical Specifications

• Model: Mercury MP Pro 6k S
• UPS Topology: Online Double Conversion
• Capacity: 6KVA / 6KW
• Power Factor: 1.0 (True Power)
• Input Voltage Range: 160V – 280V AC
• Output Voltage: 220V / 230V / 240V AC ±1%
• Output Frequency: 50/60Hz ±0.2% (auto-adjust)
• Waveform: Pure Sine Wave
• Efficiency: >90% (AC-AC), >85% (DC-AC)
• Transfer Time: 0 ms (online), <4 ms (ECO mode)
• Battery Voltage: 192VDC
• Battery Configuration: 20 × 12V 9Ah sealed lead-acid (VRLA)
• Communication Ports: RS232, USB
• Phase Configuration: 1/1 (Single-Phase Input & Output)
• Design: Compact tower with input/output terminal connections

Ideal Applications

• Data centers and server rooms
• ISP and telecom infrastructure
• Healthcare and medical equipment
• Schools, enterprises, and industrial sites
• Any environment requiring seamless UPS power backup
