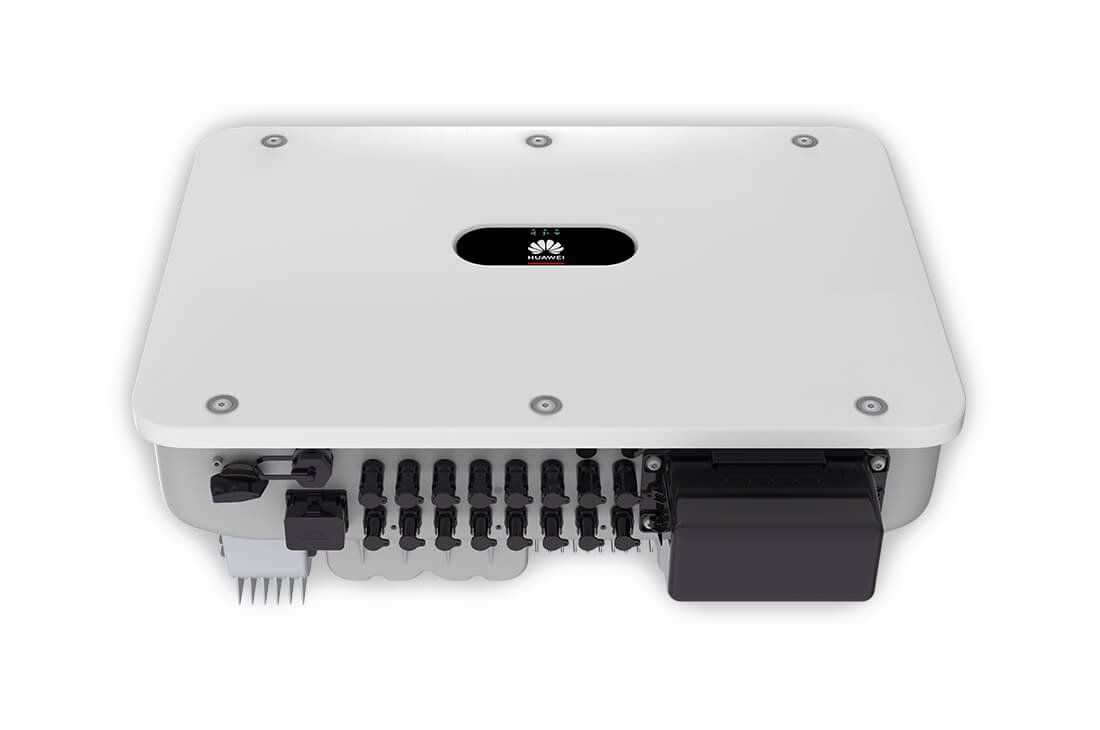

Huawei sun2000 30ktl m3 inverter
Huawei SUN2000-30KTL-M3 is a powerful inverter that converts direct current into alternating current. With its high efficiency, it is the right solution for demanding system operators. Behind the dimensions of 640 x 530x 270 mm, the Huawei SUN2000-30KTL-M3 inverter offers a lot of state-of-the-art technical finesse. The weight is 43 kg – including the mounting plate. As with all Huawei Solar products, installation is simple and commissioning can be completed in just a few minutes using the app. RS485 communication is provided for data exchange with the Smart Logger and Smart Power Meter.
A big advantage of the Huawei SUN2000-30KTL-M3 is the factory-supplied overvoltage protection (type 2 for AC and DC) as well as four independent MPP trackers are innovative details. In addition, the module operates pleasantly quietly, because the cooling takes place without a fan by natural convection. The maximum power of the Huawei SUN2000-30KTL-M3 inverter is 33,000 watts. With the grid code Austria setting, the maximum power is limited to 30 kVA. The MPPT operating voltage range is from 200 V to 1,000 volts. With a maximum efficiency of 98.7 percent and a European efficiency of 98.4 percent, the component achieves enormous efficiency.
- 3-phase inverter with 33,000VA1 Power
- 4 independent MPP trackers
- 8 DC connections
- Efficiency up to 98.7%
- Communication via WLAN / Ethernet & 2G/3G/4G (optional)
- Free system monitoring with FusionSolar
- RS485 for Smart Power Sensor and SmartLogger
- Connection for ripple control receiver
- DC MBUS communication for Smart Optimizer
- Integrated AC and DC overvoltage protection TYPE II
- Integrated PID recovery
- Convection cooling
- Protection class IP66
Huawei SUN2000-30KTL-M3 – General Specifications
Huawei SUN2000-30KTL-M3 – Input DC
Max. Input voltage2: 1,100 V
Max. Current per MPPT : 26 A
Max. Short circuit current per MPPT: 40 A
Starting voltage: 200 V
MPPT operating voltage range3 200 V to 1,000 V
Rated input voltage: 600 V
Number of MPP trackers: 4
Max. number of inputs per MPPT: 26 A Number of inputs per MPPT: 2
Huawei SUN2000-30KTL-M3 – Output AC
Rated power: 30000 W
Maximum apparent power: 33000 VA1
Rated output voltage: 230 Vac / 400 Vac, 3W/N+PE
AC line frequency: 50 Hz / 60 Hz
Rated output current: 43.3 A
Maximum output current: 47.9 A
Adjustable power factor: 0.8 kap. … 0.8 ind.
Total harmonic distortion (THD): ≤ 3%
Huawei SUN2000-30KTL-M3 – Efficiency
Max. Efficiency: 98.7 %
European efficiency: 98.4 %
Huawei SUN2000-30KTL-M3 – Communication
Display: LED display
RS485: Yes
USB: WLAN/Ethernet via Smart Dongle-WLAN-FE (optional), 4G/3G/2G via Smart Dongle-4G (optional)
Monitoring BUS (MBUS): No (from Prod. No. 01075485-069)
Huawei SUN2000-30KTL-M3 – Protection and functions
DC load break switch: Yes
Islanding detection: Yes
AC overcurrent protection: Yes
DC reverse polarity protection: Yes
String monitoring: Yes
DC overvoltage arrester: Yes
AC overvoltage protection: Yes
DC insulation resistance detection: Yes
Fault current monitoring: Yes
Arc detection: Yes
Inputs for ripple control receiver PID recovery3: Yes
Huawei SUN2000-30KTL-M3 – Safety Standards
EN 62109-1/-2, IEC 62109-1/-2, EN 50530, IEC 62116, IEC 60068, IEC 61683
Huawei SUN2000-30KTL-M3 – Mains Connection Standards
IEC 61727, VDE-AR-N4105, VDE 0126-1-1, BDEW, G59/3, UTE C 15-712-1, CEI 0-16, CEI 0-21, RD 661, RD 1699, P.O. 12.3,RD 413, EN-50438-Turkey, EN-50438-Ireland, C10/11, MEA, Resolution Nr.7, NRS 097-2-1, AS/NZS 4777.2, DEWA Further information on conformity to standards available on request.
Huawei SUN2000-30KTL-M3 – included in delivery
PV Connector
Bluetooth Dongle
Bracket
Brand
Huawei
