Huawei sun2000 10ktl m1 inverter

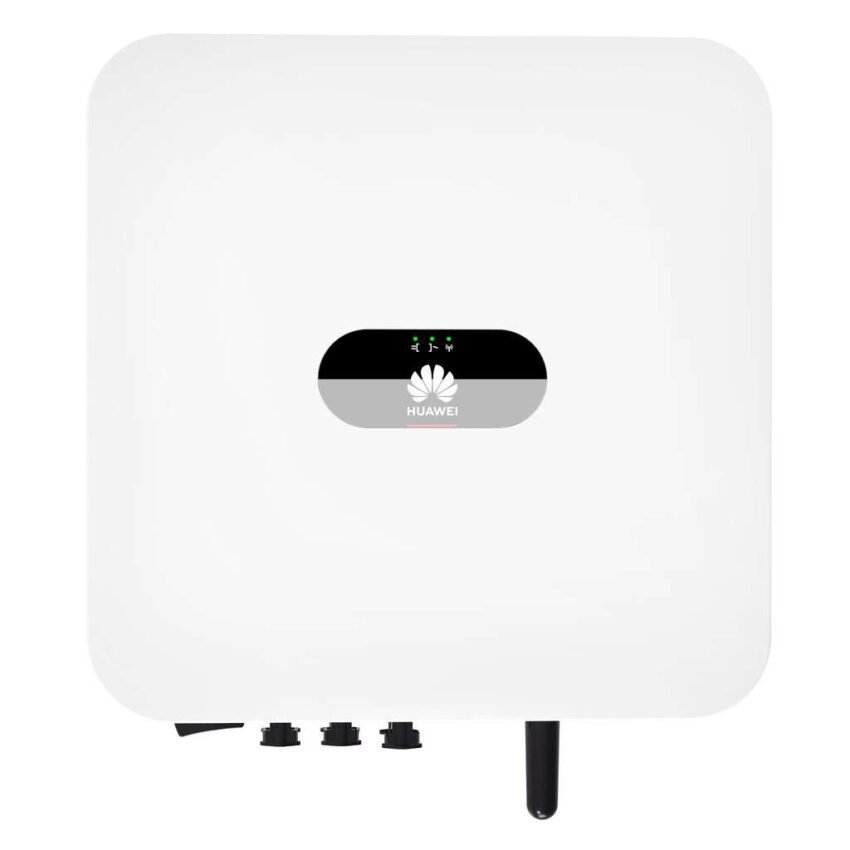

The Huawei Sun2000 10KTL-M1 10kw 3phase Ongrid/Grid-Tie Inverter combines efficiency with ease of use. As an indispensable component of the PV system, the inverter is designed to convert direct current from the solar cells into alternating current. In this form, it can be used or fed into the grid.
- 3-phase inverter with 11,000VA power output
- 2 independent MPPT trackers
- 1 battery connection (Plug & Play) for LUNA2000 ESS 5-15kWh
- Efficiency up to 98.6%
- Compatible with module optimizer SUN2000-450W-P
- Communication via WLAN / Ethernet & 4G/LTE*
- Free system monitoring with FusionSolar
- RS485 for Smart Power Sensor & LUNA2000 ESS 5-15kWh
- Integrated AC and DC overvoltage protection TYPE II
- Integrated PID recovery
- Convection cooling
- Protection class IP65
Huawei Sun2000 10KTL-M1 10kw 3phase Ongrid/Grid-Tie Inverter General Specifications
Operating temperature range: -25 ~ +60 °C
Operating Relative Humidity: 0%RH~100%RH
Operating altitude: 0 – 4,000 m (derating > 2,000 m)
Cooling: convection cooling
Display: LED display
Communication: RS485, WLAN, Ethernet via Smart Dongle-WLAN-FE; 4G/3G/2G via Smart Dongle 4G (optional)
Weight (incl. mounting bracket): 17 kg
Dimensions (including mounting brackets): 525 x 470 x 146.5 mm
Degree of protection: IP65
Power consumption at night: <5.5W (<10W when PID recovery function is enabled)
Huawei Sun2000 10KTL-M1 10kw 3phase Ongrid/Grid-Tie Inverter – Input (DC)
Recommended maximum PV power: 15,000 Wp
Max. Input voltage: 1,100 V
Operating voltage range : 140 V ~ 980 V
Starting voltage: 200 V
Rated input voltage: 600 V
Max. input current per MPPT: 11 A Max. input current per MPPT: 1,100 V Input current per MPPT: 11 A
Max. short-circuit current: 15 A Short circuit current: 15 A
Number of MPP trackers: 2
Max. number of inputs per MPPT: 140 V ~ 80 V Number of inputs per MPPT: 1
Huawei SUN2000-10KTL-M1 – Input (DC Battery)
Compatible battery: HUAWEI Smart String ESS 5kWh – 30kWh
Operating voltage range: 600 V ~ 980 V
Maximum operating current: 16 A
Maximum charging power: 10,000 W
Maximum discharging power: 10,000 W
Huawei SUN2000-10KTL-M1 – Output (On Grid)
Mains connection: three-phase
Rated power: 10,000 W
Maximum apparent power: 11,000 VA (C10 / 11: 10,000 VA)
Rated output voltage: 220 Vac / 380 Vac, 230 Vac / 400 Vac, 3W / N+PE
AC mains frequency: 50 Hz / 60 Hz
Maximum output current: 16.9 A
Adjustable power factor: 0.8 cap. … 0.8 ind.
THD: ≤ 3%
Huawei SUN2000-10KTL-M1 – Output (Backup Power via Backup Box-B1)
Maximum apparent power: 3,300 VA
Rated output voltage: 220 V / 230 V
Maximum output current: 15 A
Adjustable power factor: 0.8 kap. … 0.8 ind.
Huawei SUN2000-10KTL-M1 – Protection and function
DC load break switch: Yes
Islanding detection: Yes
DC reverse polarity protection: Yes
Insulation monitoring: Yes
DC overvoltage protection: Yes, compatible with protection type TYPE II according to EN / IEC 61643-11
AC overvoltage protection: Yes, compatible with protection type TYPE II according to EN / IEC 61643-11
Fault current monitoring: Yes
AC overcurrent protection: Yes
AC short-circuit protection: Yes
Arc detection: Yes
Inputs for ripple control receivers: Yes
Integrated PID recovery: Yes
Battery charging from mains possible: Yes
Huawei SUN2000-10KTL-M1 – Module Optimizer
DC MBUS compatible optimizer: SUN2000-450W-P
Huawei SUN2000-10KTL-M1 – Standards Compliance (others available upon request)
Safety standards: EN/IEC 62109-1, EN/IEC 62109-2, IEC 62116
Mains connection standards: G98, G99, EN 50438, CEI 0-21, VDE-AR-N-4105, AS 4777, C10/11, ABNT, UTE C15-712, RD 1699, TOR D4, NRS 097-2-1, IEC61727, IEC62116, DEWA
Huawei SUN2000-10KTL-M1 – included in delivery
PV Connector
Battery Connector
AC Connector
Signal Cable Connector
Bracket
WLAN-FE-Dongle
Huawei SUN2000-10KTL-M1 – Notes and explanations
1Â The maximum PV input power of the inverter is 20,000Wp when long strings are designed and fully connected to the SUN2000-450-P power optimizers.
2Â The maximum input voltage is the upper limit of the DC voltage. Any higher input DC voltage would likely damage the inverter.
3Â Any DC input voltage above the operating voltage range may cause faulty operation.
