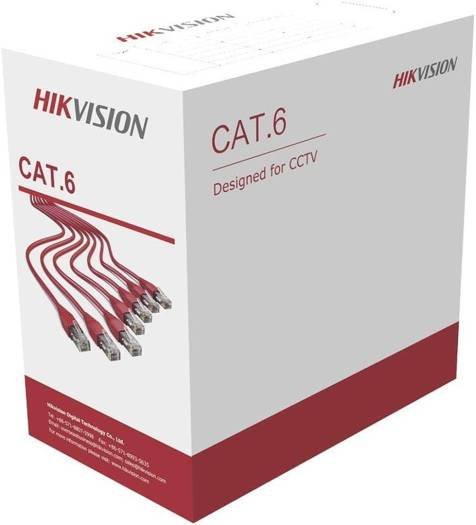

Hikvision CAT6 UTP Ethernet LAN Cable – 305m, 23AWG Solid Copper Network Cable (DS-1LN6U-G)

Hikvision CAT6 UTP Ethernet LAN Cable (DS-1LN6U-G) is a high-performance network cable engineered for reliable data transmission in structured cabling systems. Featuring 23AWG solid-bare copper conductors (99.95%), it delivers superior electrical performance, reduced resistance, and long-term reliability.

Independently Fluke-tested for both 90m permanent links and 100m channels, this Cat6 cable guarantees stable operation under high temperatures and PoE loads. Its robust PVC sheath ensures mechanical strength, tensile resistance, and cold-bend durability, making it suitable for professional networking projects and mission-critical environments.

Compliant with ANSI/TIA-568-C.2, ISO/IEC11801, IEC61156, and RoHS 2.0, the Hikvision CAT6 Ethernet LAN Cable is trusted for both enterprise and security networking applications in Kenya.

Key Features & Benefits

• Solid-Bare Copper Core (99.95%) – Provides excellent conductivity and consistent transmission performance.
• Fluke-Tested Performance – Verified for 90m permanent link and 100m channel at high temps & PoE load.
• High-Strength PVC Jacket – Delivers superior tensile, compressive, and cold-bend resistance.
• PoE-Ready – Supports Power over Ethernet applications, including IP cameras and VoIP systems.
• Wide Operating Range – Withstands temperatures from -20°C to 75°C for indoor installations.
• Standards-Compliant – Meets ANSI/TIA, ISO/IEC, IEC, and RoHS 2.0 certifications.
• Structured Cabling Optimized – Ideal for large-scale commercial and security infrastructure projects.

Technical Specifications

• Brand: Hikvision
• Model: DS-1LN6U-G
• Category: Cat6 UTP
• Conductor: 23AWG Solid Bare Copper (99.95%)
• Conductor Diameter: 0.55 ± 0.005 mm
• Insulation: HDPE (0.98 ± 0.05 mm)
• Separator: Yes | Rip Cord: Yes
• Sheath Material: PVC, Grey (0.50 ± 0.10 mm thick, 6.0 ± 0.3 mm diameter)
• Cable Length: 305m (±1.5m)
• Frequency: Up to 250 MHz
• Data Rate: Supports up to 1 Gbps Ethernet
• Electrical Performance (20°C):
  • Impedance: 100 ± 15 Ω @ ≤ 100 MHz; 100 ± 25 Ω @ 100–250 MHz
  • Delay Skew: ≤ 45 ns/100 m
  • DC Resistance: ≤ 9.38 Ω/100 m
  • Resistance Unbalance: ≤ 5%
• Compliance: ANSI/TIA-568-C.2, ISO/IEC11801, IEC61156, RoHS 2.0
• Package Dimensions: 400 × 400 × 240 mm
• Weight: 12.3 ± 0.5 kg

Applications

This Hikvision Cat6 UTP Ethernet LAN Cable is designed for:

• Structured cabling in offices and enterprise networks
• PoE device support (IP cameras, access control, and VoIP systems)
• High-speed LAN connectivity up to 1 Gbps
• Smart home and smart office networking
• CCTV and security system installations
• Indoor enterprise backbone cabling

Choose the Hikvision Cat6 UTP Ethernet LAN Cable (DS-1LN6U-G) for high-performance structured cabling with solid copper reliability and Fluke-tested assurance.

Get this Hikvision Cat6 Ethernet LAN Cable in Kenya today at the best prices from TDK Tech Store, with fast, nationwide delivery on premium Ethernet LAN Cables, Cat6 cable, and Cat6A network cable.
