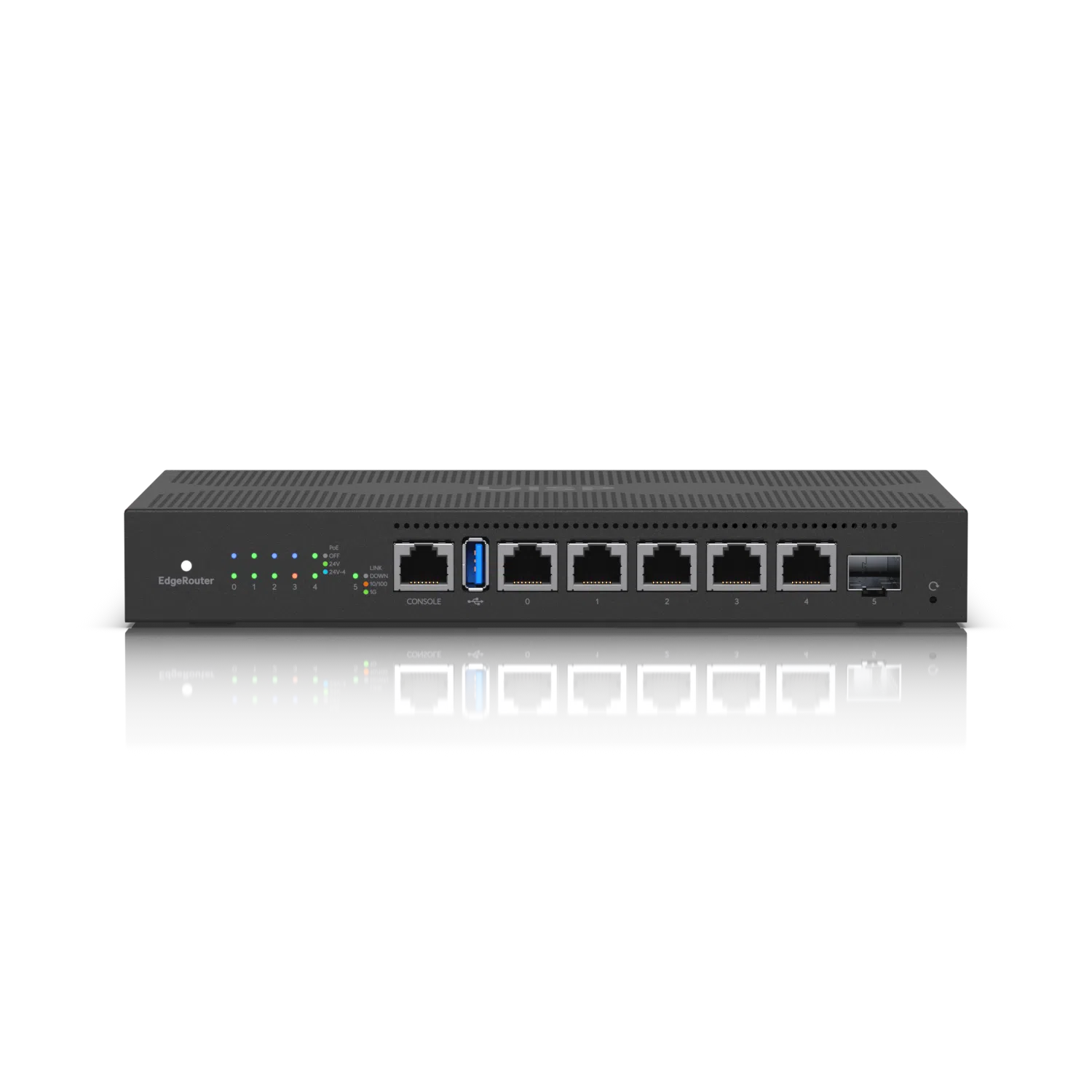

(ER-6P) –Ubiquiti 6-Port Gigabit Router
KSh37,500.00 Ex.VAT
The Ubiquiti EdgeRouter 6P (ER-6P) is a high-performance 6-port Gigabit router engineered for ISP edge, WISP, and advanced corporate deployments. Powered by a 4-core 1.0 GHz MIPS64 processor with 1 GB DDR3 RAM, it achieves up to 3.4 million packets per second (3.4 Mpps) Layer 3 forwarding throughput. It features 5 Gigabit RJ45 ports with software-configurable 24V passive PoE output (2-pair and 4-pair) to directly power airMAX wireless radios alongside 1 Gigabit SFP port for fiber backhaul connectivity.
- Routing Performance: 3.4 Million Packets Per Second (3.4 Mpps) & 6 Gbps Line-Rate Routing
- Networking Interfaces: (5) GbE RJ45 Ports & (1) 1G SFP Fiber Uplink Port
- PoE Output: (5) Configurable 24V Passive PoE Ports (up to 24W per port)
- Processing Power: Quad-Core 1.0 GHz MIPS64 Processor with 1 GB DDR3 RAM
- Operating System: Powered by EdgeOS with graphical web interface and full CLI / UISP central management
- Silent Operation: Fanless, silent thermal design in a compact, heavy-duty metal chassis
- Warranty: 1-Year Official Manufacturer Warranty Included
- Delivery: Same-Day Delivery in Nairobi | Express Countrywide Shipping via Courier
Ubiquiti EdgeRouter 6P (ER-6P) – 6-Port Gigabit Router with 24V Passive PoE & SFP Port
The Ubiquiti EdgeRouter 6P (ER-6P) combines carrier-class reliability, high-density packet forwarding, and flexible power delivery in a compact metal desktop/rack-mountable chassis. Designed for WISPs, enterprise edge routing, and advanced network segmentations, the ER-6P delivers top-tier performance handling up to 3.4 Mpps processing to handle demanding data streams without latency bottlenecks.
Equipped with 5 Gigabit Ethernet ports with 24V passive PoE output and 1 Gigabit SFP fiber port, the EdgeRouter 6P streamlines site deployments by powering external wireless CPEs, airMAX base stations, or IP devices directly—eliminating the need for individual PoE injectors. Managed via EdgeOS or central UISP software, network administrators gain deep control over dynamic routing protocols (OSPF, BGP, RIP), VLAN segmentation, firewall policies, and DPI traffic analytics.
Key Features & Benefits:
- 3.4 Mpps Processing Power: High-efficiency quad-core processing provides wire-speed 6 Gbps routing performance for multi-gigabit traffic demands.
- Software-Configurable 24V Passive PoE: 24V 2-pair and 4-pair passive PoE options across 5 RJ45 ports supply up to 24W per port for airMAX and outdoor radios.
- Fiber Backhaul Flexibility: Includes a dedicated 1G SFP port for long-distance optical fiber link integration.
- Enterprise OS Features (EdgeOS): Full suite of Layer 3 functionality including BGP, OSPF, VPN (IPSec, OpenVPN, L2TP), QoS, NAT, and Deep Packet Inspection (DPI).
- UISP Centralized Management: Remotely discover, configure, monitor, and update firmware across all your network sites using the Ubiquiti ISP (UISP) platform.
- Fanless Heavy-Duty Chassis: Durable metal casing operates completely silently with efficient passive cooling for harsh environment resilience.
| Technical Spec | Detail |
| Model SKU | ER-6P |
| Device Type | 6-Port Gigabit Edge Router with SFP & 24V PoE Output |
| Networking Interfaces | (5) 10/100/1000 GbE RJ45 Ports | (1) 1 Gbps SFP Port |
| Management Interfaces | (1) RJ45 Serial Console Port |
| PoE Interfaces | (5) Configurable 24V Passive PoE (2-Pair & 4-Pair) |
| Forwarding Rate | 3,400,000 pps (64-byte packets) | 6 Gbps Line Rate |
| Processor & Memory | Quad-Core 1.0 GHz MIPS64 | 1 GB DDR3 RAM | 4 GB eMMC Flash |
| Power Method & Adapter | 24V, 2.5A 60W External AC/DC Power Adapter (Included) |
| Max Power Consumption | 16W (Excluding PoE output) |
| Mounting Options | Wall Mountable or 1U Rack Mountable (with optional ER-RMKIT) |
| Dimensions & Weight | 229 x 136.5 x 31.1 mm (9.0 x 5.4 x 1.2″) | 730 g (1.61 lb) |
Deployment & Powering Notes:
- Power Adapter Included: Comes with a 60W external power supply to power the router and feed up to 44W total passive PoE across its output ports.
- Passive PoE Warning: Ports output 24V Passive PoE (not standard 802.3af/at 48V PoE). Verify connected device compatibility before enabling software PoE.
- Rack-Mount Support: Supports mounting in standard 19-inch equipment racks using the optional ER-RMKIT adapter bracket.
What’s in the Box?
- 1 x Ubiquiti EdgeRouter 6P (ER-6P)
- 1 x 24V, 2.5A External Power Adapter with AC Power Cord
- 1 x Wall Mounting Screw & Anchor Set
- 1 x Quick Start Guide
Why Buy Ubiquiti Products From Us in Kenya?
- 100% Genuine Products: Authentic, factory-sealed Ubiquiti stock backed by an official manufacturer warranty.
- Flexible Payment Methods: Pay via M-Pesa, Paybill, Direct Bank Transfer, or Cash on Delivery (Nairobi area). E-TIMS / VAT Tax Invoices provided for business purchases.
- Same-Day Nairobi Delivery: Fast delivery across Nairobi CBD, Westlands, Kilimani, Upper Hill, Karen, and surrounding areas.
- Countrywide Shipping: Express courier dispatch within 24–48 hours to Mombasa, Kisumu, Nakuru, Eldoret, Thika, and all other major towns in Kenya.
Professional Ubiquiti Network Installation Services in Kenya:
TDK Solutions Limited provides enterprise-grade Ubiquiti network design, supply, installation, configuration, signal optimization, and ongoing maintenance across Kenya. We support deployments ranging from home offices in Nairobi to multi-building corporate campuses in Mombasa, Kisumu, Nakuru, and Eldoret.
Our certified network engineers eliminate slow network bottlenecks, dead zones, and routing issues through structured site surveys, advanced VLAN segmentation, dynamic bandwidth shaping, and enterprise firewall configurations.
Our Scope of Ubiquiti Services:
- EdgeMAX & Enterprise Routing Setup: Advanced configuration of EdgeRouters (ER-4, ER-6P, ER-12), OSPF/BGP routing, failover load balancing, and firewall rules.
- UniFi WiFi Deployment & Optimization: Precision placement of indoor/outdoor UniFi Access Points, fast roaming (802.11r/k/v), predictive RF planning, and signal tuning.
- Switching & Network Infrastructure: Installation of managed PoE switches, VLAN tagging/segmentation, and traffic isolation for voice, video, and data.
- Long-Range Wireless & WISP Backhauls: Point-to-Point (PTP) and Point-to-Multipoint (PtMP) airMAX links, outdoor wireless bridges, and tower routing integrations.
- Management & Audits: Centralized UISP/UniFi controller setups, remote network monitoring, security audits, and legacy infrastructure upgrades.
Industry Deployments & Property Solutions:
| Sector | Target Environments & Coverage Focus |
| WISPs & Telecoms | Base station tower routing handling multi-megabit client traffic, BGP routing, and powering airMAX radios via 24V passive PoE. |
| Corporate Offices | Enterprise edge routing with multi-WAN failover, hardware-accelerated IPSec site-to-site VPNs, and VLAN segmentation. |
| Hospitality Venues | Core routing for guest captive networks, bandwidth shaping, and fiber backhaul distribution to remote switch closets. |
| Education & Schools | School campus boundary routing, Layer 3 traffic isolation, and static/dynamic policy-based routing. |
| Commercial Properties | Secure isolation of tenant traffic, access control infrastructure, and remote monitoring gateway integration. |
