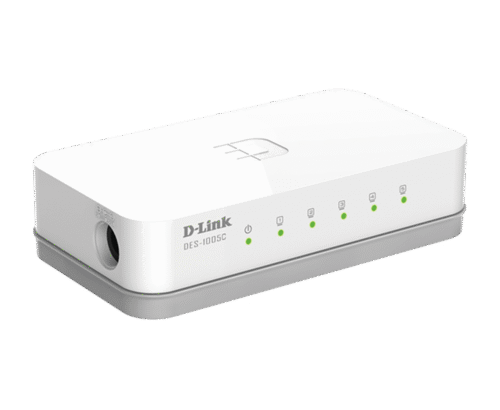

D-Link DES-1005C/B 5-Port 10/100Mbps Unmanaged Switch

D-Link DES-1005C/B is a simple, cost-effective solution for expanding your network quickly and efficiently. Featuring 5 high-speed 10/100Mbps ports, automatic MDI/MDIX support, and energy-saving Ethernet technology, this unmanaged switch ensures seamless, silent operation — ideal for home offices, small businesses, or expanding an existing network infrastructure.

Key Features

• Auto MDI/MDIX: Automatically detects cable types, eliminating the need for crossover cables.
• 802.3x Flow Control: Ensures reliable data transfer and prevents packet loss during congestion.
• Energy Efficient Ethernet (EEE): Saves power based on link status and cable length without sacrificing performance.
• Jumbo Frame Support: Handles frames up to 2048 bytes, boosting performance for large data transfers.
• Fanless Design: Silent operation, perfect for quiet environments.
• Compact and Lightweight: 88 x 48 x 21.45 mm dimensions and 434g weight for easy placement anywhere.
• Head-of-line (HOL) Blocking Prevention: Improves network efficiency by managing traffic properly.

Specifications

• Ports: 5 x 100Base-TX Ethernet ports
• Switching Capacity: 1 Gbps
• MAC Address Table Size: 2,000 entries
• Max Packet Forwarding Rate: 0.74 Mpps
• Packet Buffer Size: 96KB
• MTBF (Mean Time Between Failures): 1,785,631 hours
• Jumbo Frame Support: Up to 2048 Bytes
• Power Input: DC 5V / 0.55A
• Maximum Power Consumption: 0.784 Watts
• Standby Power Consumption: 0.4 Watts
• Maximum Heat Dissipation: 0.406 BTU/hr
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10% to 90% RH (non-condensing)
• Storage Humidity: 5% to 95% RH (non-condensing)
• Energy-Saving Feature: Power saving by link status detection

Package Contents

• D-Link DES-1005C/B 5-Port 10/100Mbps Switch
• Power Adapter
• Quick Installation Guide
• Warranty Documentation

Common FAQs

• Is the D-Link DES-1005C/B plug-and-play?
  Yes, it is fully plug-and-play with no configuration required.
• Does the switch have a fan for cooling?
  No, it uses a fanless design for silent operation.
• Is this suitable for expanding my home or small office network?
  Yes, it is ideal for homes, small offices, or expanding existing wired networks.
• Does it support Jumbo Frames?
  Yes, it supports Jumbo Frames up to 2048 bytes.
• What is the switching capacity of this model?
  It offers a total switching capacity of 1 Gbps.

Shop for the Latest D-Link Network Switches in Kenya at TDK Solutions — your trusted D-Link store in Nairobi Kenya for genuine D-Link switches, best prices, fast delivery, and outstanding customer support. Power your network with reliability and speed today!
