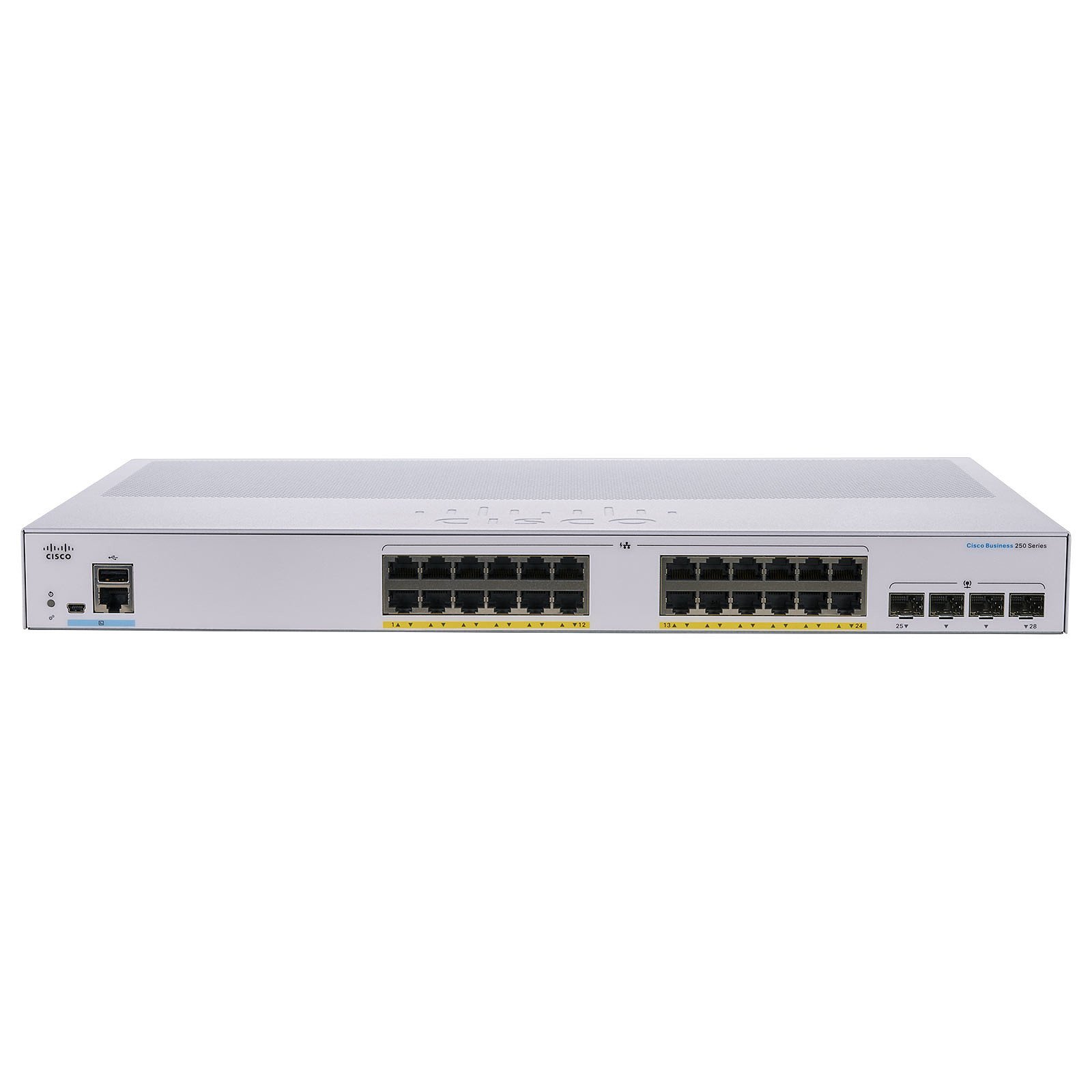

Cisco CBS350 24-Port Gigabit PoE Managed Switch with 4×SFP CBS350-24P-4G-UK

Cisco CBS350-24P-4G-UK is a 24-port managed Gigabit switch designed for small to medium businesses needing high-performance networking with PoE support. This switch delivers advanced features like VLAN support, QoS, and SFP uplinks for robust connectivity. Perfect for businesses seeking efficient, reliable, and scalable networking.

Key Features

• 24 x Gigabit Ethernet ports for fast, high-performance network connectivity
• Power over Ethernet (PoE) support with IEEE 802.3af and PoE+ (IEEE 802.3at)
• 4 x Gigabit SFP ports for uplink expansion
• 56 Gbps switching capacity and 41.67 Mpps forwarding rate
• Jumbo Frame Support up to 9KB for large data transfers
• VLAN support (up to 4096 VLAN IDs) for advanced network segmentation
• IEEE 802.1Q Spanning Tree Protocol and LACP for enhanced link aggregation and network reliability
• Port security, DHCP snooping, and IP-MAC binding for robust network protection
• Web-based management interface (GUI) with SNMP, RMON, HTTP/HTTPS support
• Energy-efficient Ethernet (IEEE 802.3az) for lower operational costs
• Power-saving modes for optimized energy consumption

Technical Specifications

• Model: Cisco Business CBS350-24P-4G
• Port Count: 24 x Gigabit Ethernet (10/100/1000 Mbps)
• PoE Support: Yes, supports PoE (IEEE 802.3af) and PoE+ (IEEE 802.3at)
• Uplink Interfaces: 4 x Gigabit SFP ports
• Switching Capacity: 56 Gbps
• Forwarding Rate: 41.67 Mpps
• Jumbo Frame Support: Yes, up to 9KB
• VLAN Support: Yes, supports up to 4096 VLAN IDs
• Spanning Tree Protocol (STP): Yes, IEEE 802.1D STP
• Link Aggregation (LACP): Yes, IEEE 802.3ad
• Port Mirroring: Yes, for traffic monitoring
• Storm Control: Yes, for broadcast, multicast, and unknown unicast
• Port Security: Yes, with MAC address limiting
• DHCP Snooping: Yes, for rogue DHCP server prevention
• QoS Support: Yes, IEEE 802.1p and DSCP
• Traffic Classification: Supports VLAN, MAC address, IP address, and TCP/UDP port
• Priority Queues: 4 hardware queues per port for traffic prioritization
• Management Interface: Web-based GUI
• Security Features: Port security, DoS prevention, IPv4/IPv6 ACLs
• Energy-Efficient Ethernet (IEEE 802.3az): Yes
• Power Supply: Internal, 100–240VAC

Common FAQs

1. Does this switch support PoE?
   Yes, the Cisco CBS350-24P-4G-UK supports both PoE (IEEE 802.3af) and PoE+ (IEEE 802.3at) for powering devices like IP cameras, phones, and access points.
2. What kind of management does it offer?
   The switch features a web-based GUI for easy management, along with support for SNMP, RMON, and HTTP/HTTPS protocols.
3. Can I use this switch for advanced network configurations?
   Yes, this switch supports VLANs (up to 4096), Spanning Tree Protocol, and LACP for advanced network setups.
4. Is this switch energy-efficient?
   Yes, the switch supports Energy-Efficient Ethernet (IEEE 802.3az) and offers various power-saving modes to reduce operational costs.
5. How many devices can I connect with this switch?
   With 24 Gigabit Ethernet ports and PoE support, you can connect a wide range of network devices, including computers, phones, IP cameras, and more.
6. Does it have any security features?
   Yes, the Cisco CBS350-24P-4G-UK includes port security, DHCP snooping, DoS prevention, and ACLs for enhanced network protection.

Shop for the Latest Cisco Networking Switches in Kenya at TDK Solutions — Your trusted Cisco Shop in Kenya for PoE-enabled switches, high-performance gear, expert support, and fast delivery. Upgrade to the Cisco CBS350-24P-4G-UK for reliable, scalable networking for your growing business today!
