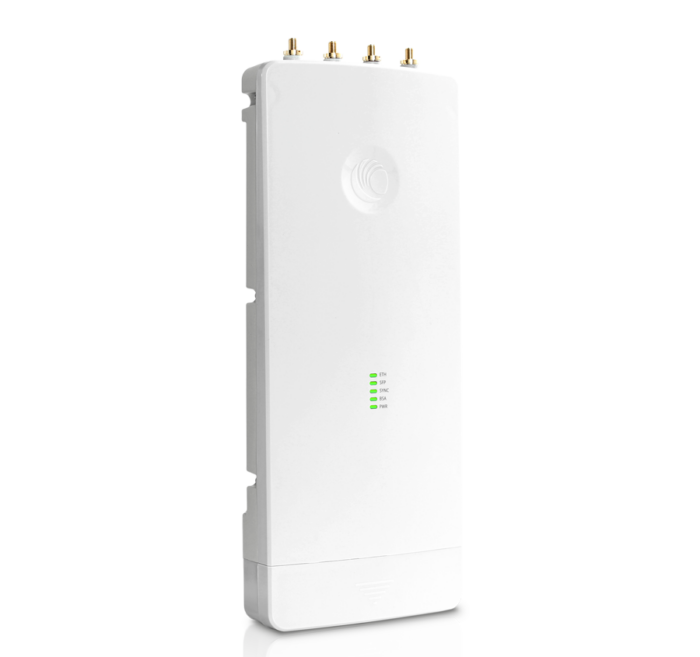

Cambium ePMP 3000 5GHz Connectorized MU-MIMO 4×4 Access Point

Cambium ePMP 3000 5GHz Connectorized MU-MIMO 4×4 Access Point is a high-capacity outdoor wireless solution built for ISPs, enterprises, and large-scale broadband deployments. With advanced MU-MIMO, wide channel support, and a connectorized RF front end, this Wifi acess point gives network designers the flexibility to choose antennas and shape coverage for dense and interference-challenged environments. The platform is optimized for low latency, efficient spectrum use, and scalable subscriber density — making it ideal for video, VoIP, and high-throughput data services.

Key Features

• 4×4 MU-MIMO Performance: Serves multiple clients simultaneously with spatial streams that boost capacity and overall spectral efficiency.
• Connectorized Flexibility: External antenna support (4× RP-SMA) lets you pair sector, panel or custom antennas to match coverage needs.
• High Aggregate Throughput: Up to 1.2 Gbps aggregate capacity for high-demand environments and backhaul-adjacent deployments.
• Wide Channel Options: Supports 20/40/80 MHz channels to balance range and capacity per deployment objectives.
• Advanced Modulation: Supports high-order QAM (up to 256-QAM) for improved data rates where RF conditions permit.
• Interference Mitigation: Smart scheduling and RF management reduce self-interference and maintain stable links in crowded bands.
• GPS Synchronization: Optional GPS sync enables frequency reuse and coordinated scheduling across multiple sectors.
• Low Latency: Tuned for VoIP, live video and surveillance with typical sub-5ms latency under normal conditions.
• Robust Outdoor Design: Hardened for wide temperature ranges and weather exposure—built for reliable outdoor operation.
• Flexible Management: Works with Cambium’s cnMaestro™ (cloud or on-prem), web GUI and SNMP for monitoring and mass provisioning.
• PoE Powered: 30V PoE support simplifies installation and centralizes power delivery.
• Easy Mounting: Pole and mast mounting options for rapid field deployment.

Specifications

• Product Type: Outdoor Connectorized Access Point
• Model: ePMP 3000 Connectorized (4×4)
• Frequency Range: 4910 – 5970 MHz (region dependent / regulatory limits apply)
• Channel Bandwidths: 20 / 40 / 80 MHz
• MIMO: 4×4 MU-MIMO
• Maximum Aggregate Throughput: Up to 1.2 Gbps (aggregate)
• Modulation: OFDM; up to 256-QAM
• Transmit Power: Up to ~30 dBm (region & regulatory dependent)
• Antenna Ports: 4 × RP-SMA (connectorized)
• Ethernet: 1 × Gigabit Ethernet (10/100/1000 Mbps) with 30V passive PoE input
• Synchronization: GPS sync support (for frequency reuse/coordinated scheduling)
• Security: AES encryption; 802.1X/EAP support (platform security features)
• Management: cnMaestro (cloud/on-prem), web UI, SNMP
• Latency: <5 ms typical (optimized mode)
• Operating Temperature: -30°C to +60°C (approx.; confirm model datasheet for exact range)
• Mounting: Pole/mast mount compatible
• Dimensions & Weight: Approx. 317 × 227 × 85 mm; ~2.2 kg (varies by revision)
• Environmental: Designed for outdoor deployment; consult regional compliance/regulatory specs
