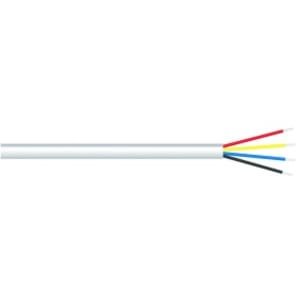

100M-4-Core Alarm Cable White – PP4C
Alarm Cable 4 Core-100m is a general purpose Signal and Alarm cable. The cable is ideal for use in alarm installations or where low voltages are used.
The alarm cable is ideal for wiring alarm systems and access control systems. Comes in White color.
The signal cables ideal for use with security alarms and other applications where low voltages and low currents are being used.

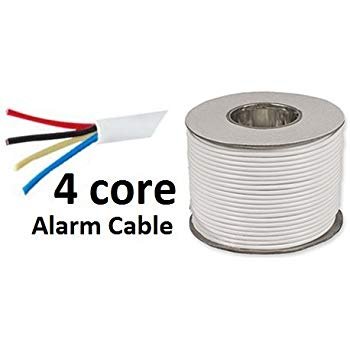

4 Core Burglar Alarm Cable White
This cable consists of individually colored cores. The Cables range of security cables meet the requirements of both domestic and commercial systems.
The cable has a tubed sheath construction and incorporates a tough nylon rip cord; making it easy to tear the mechanically strong but pliable sheath.
These cables are primarily designed for use with security alarms systems. However, they are also suitable for signalling in other applications where low voltage and low currents are being used.
4 Core Alarm Specification;
|Core Colour||Red, Yellow, Blue, Black|
|Conductor||Class 5 Tinned Copper to BS EN 60228|
|Insulation||PVC to BS EN 50363-3.2|
|Sheath||PVC to BS 7655-4.2|
|Min Operating Temp.||-15°C|
|Max Operating Temp.||70°C|
|Min Bending Radius||6 x Ø|
|Minimum Radial Thickness of insulation (mm)||0.15|
|Minimum Radial Thickness of Sheath (mm)||0.4|
|Nominal Overall Diameter (mm)||4.0|
Quick specs of 4-Core Security Alarm Cable
- Resistance: 155R/km
- PVC Wall Thickness – 0.50mm
- Copper conductors
- Complies with BS4737-3.30:2015, Type 3
